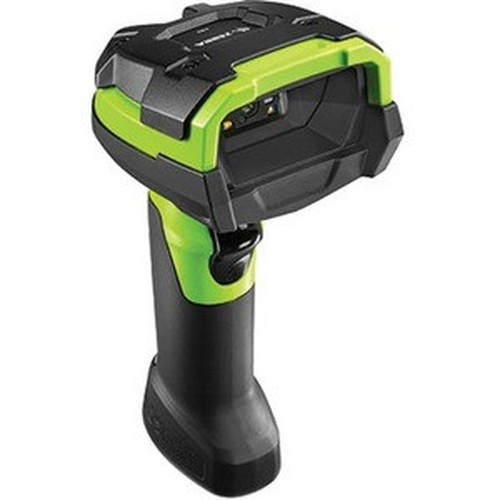

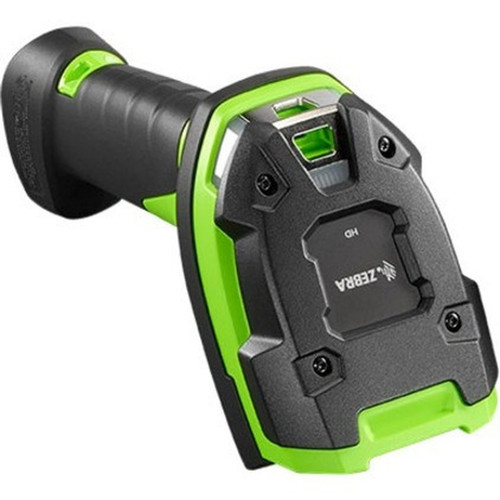

Zebra DS3608-SR00003VZWW DS3608-SR Handheld Barcode Scanner - Imager - 1D/2D - 59. 06" Scan Distance - USB Cable - Industrial Green - Rugged IP67/IP65
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DS3608-SR features a standard-range scanner with a 42° horizontal and 28° vertical field of view, allowing for accurate capture across various angles. It supports reading angles of 60° skew, 60° pitch, and 360° roll, enabling versatile positioning during scanning tasks.
Technical specifications include a minimum print contrast of 15% and element resolution for DataMatrix codes ranging from 7.50 mil to 10 mil. The scanner connects via USB cable, providing a stable and straightforward interface for integration with point-of-sale systems, inventory management software, and other host devices.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS3608-SR excels in environments where durability and scanning reliability are critical. Its rugged design and advanced imager technology make it a dependable tool for high-volume scanning operations.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Industrial Durability, Versatile Scanning.
Industrial Durability
Built to withstand multiple drops from 8 feet onto concrete, with an IP67/IP65 rating for dust and water resistance, ensuring longevity in harsh conditions.
- Drop-resistant construction
- IP67/IP65 ingress protection
- Industrial green color for visibility
Versatile Scanning
Supports over 20 barcode symbologies, including 1D, 2D, and specialized codes, with IUID parsing for military and asset tracking applications.
- 1D and 2D capability
- IUID support
- Digimarc watermark reading
Deployment / Use Cases
This scanner is ideal for industrial, warehouse, and manufacturing settings where robust performance and environmental resistance are essential. Its handheld form factor and long scan distance facilitate efficient operations in large facilities.
Common use cases include inventory management, asset tracking, shipping and receiving, and quality control. The ability to read damaged or low-contrast barcodes makes it suitable for applications where label conditions vary, such as in logistics or production lines.
Warehouse Operations
Enables fast and accurate scanning of pallets, bins, and items across expansive warehouse floors, with USB connectivity for seamless integration into warehouse management systems.
Manufacturing Floor
Supports tracking of components and finished goods on production lines, with rugged construction to endure drops and exposure to dust or moisture.
Physical Profile
The DS3608-SR has a compact handheld design measuring 7.30 inches in height, 3 inches in width, and 5.20 inches in depth, with a weight of approximately 10.80 ounces. Its industrial green color provides high visibility in busy environments, and the ergonomic form factor ensures comfortable use during extended scanning sessions.
- Width
- 3" (76.20 mm)
- Depth
- 5.20" (132.08 mm)
- Height
- 7.30" (185.42 mm)
- Weight
- 10.80 oz (306.17 g)
Highlights
- Handheld barcode scanner with imager technology for 1D and 2D symbologies
- Scanning distance of 59.06 inches (1500 mm) for flexible operation
- USB cable connectivity for reliable host interface integration
- Rugged design withstands multiple 8-foot drops to concrete
- IP67/IP65 rating for dust and water resistance in harsh environments
- Industrial green color for high visibility in busy settings
- Supports IUID parsing and Digimarc digital watermarks
- Wide reading angles: 60° skew, 60° pitch, and 360° roll
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS3608-SR00003VZWW |
| Brand Name | Zebra |
| Product Series | 3600 |
| Product Model | DS3608-SR |
| Product Name | DS3608-SR Handheld Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes DotCode Digimarc: Digital watermark technology IUID Support: Supports IUID parsing, the ability to read and separate IUID fields per application requirements |
| Image Sensor Type | Imager |
| Scanner Range | Standard Range |
| Scanning Distance | 59.06" (1500 mm) |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Drop Specification | Withstands multiple 8.0 ft./2.4 m drops to concrete |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 7.50 mil (0.19 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Product Color | Industrial Green |
| Height | 7.30" (185.42 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5.20" (132.08 mm) |
| Weight (Approximate) | 10.80 oz (306.17 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP67,IP65 |
| Application/Usage | Industrial,Warehouse,Manufacturing |
User Manual
FAQ
What types of barcodes can the Zebra DS3608-SR scanner read?
The DS3608-SR supports a wide range of 1D and 2D barcode symbologies. 1D codes include Code 39, Code 128, UPC/EAN, and GS1 DataBar, while 2D codes cover PDF417, DataMatrix, QR Code, and Aztec. It also reads specialized formats like Digimarc digital watermarks and supports IUID parsing for asset tracking applications.
How durable is this barcode scanner for industrial use?
This scanner is built for rugged environments, with a drop specification that allows it to withstand multiple 8.0-foot drops onto concrete. It has an IP67/IP65 ingress protection rating, making it resistant to dust and water, which is essential for warehouse and manufacturing settings where equipment faces harsh conditions.
What is the maximum scanning distance of the DS3608-SR?
The DS3608-SR offers a scanning distance of up to 59.06 inches (1500 mm). This extended range provides flexibility in operations, allowing users to scan barcodes from a distance without needing to be right next to the item, which is useful in large storage areas or on high shelves.
What connectivity options does this scanner support?
This scanner uses cable connectivity with a USB host interface. The USB connection ensures stable and fast data transfer to compatible devices like computers, point-of-sale systems, or inventory management terminals, making it easy to integrate into existing setups without wireless complexities.
Can the DS3608-SR read damaged or low-contrast barcodes?
Yes, the imager technology in the DS3608-SR is designed to handle challenging barcode conditions. It has a minimum print contrast of 15%, allowing it to read labels with poor contrast, and supports element resolutions down to 7.50 mil for DataMatrix codes, enabling reliable scans on damaged or small barcodes.
What are the typical applications for this barcode scanner?
The DS3608-SR is ideal for industrial, warehouse, and manufacturing applications. Common uses include inventory management, asset tracking, shipping and receiving, and quality control. Its rugged design and versatile scanning capabilities make it suitable for environments where durability and accuracy are critical, such as logistics centers or production floors.
What print speed is listed?
Zebra DS3608-SR Handheld Barcode Scanner - Cable Connectivity - 59.06" (1500 mm) Scan Distance - 1D, 2D - Imager - USB - Industrial - (DS3608-SR00003VZWW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Zebra DS3608-SR Handheld Barcode Scanner - Cable Connectivity - 59.06" (1500 mm) Scan Distance - 1D, 2D - Imager - USB - Industrial - (DS3608-SR00003VZWW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
