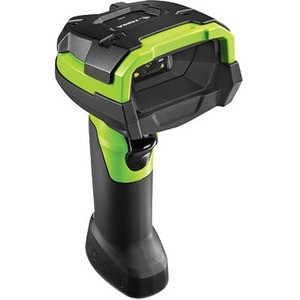

Zebra DS3678-SR0F003VZWW DS3678-SR Handheld Barcode Scanner - Wireless Bluetooth - 1D/2D Imager - 8. 6" Scan Distance - IP67 Rugged - Industrial Green
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DS3678-SR utilizes an imager-based scanning system with omni-directional pattern recognition, allowing operators to capture barcodes from virtually any angle. The scanner supports a comprehensive range of barcode symbologies including Code 39, Code 128, PDF417, DataMatrix, QR codes, and specialized formats like Digimarc digital watermarks and IUID parsing for military applications.
With a 42° horizontal and 28° vertical field of view, the scanner provides generous capture windows while maintaining precise reading capabilities. The device can read barcodes with as little as 15% print contrast and handles DataMatrix codes from 10 mil (0.25 mm) minimum to 0.20" (5.08 mm) maximum element resolution.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DS3678-SR combines industrial-grade durability with versatile scanning capabilities to deliver reliable performance in challenging environments. Its wireless design eliminates cable constraints while maintaining robust connectivity.
Rugged Construction
Built to withstand industrial abuse with IP67/IP65 protection and drop resistance up to 8 feet onto concrete surfaces.
- Multiple 8.0 ft./2.4 m drop survival
- Dust and water resistant
- Industrial-grade materials
Comprehensive Symbology Support
Reads virtually all common 1D and 2D barcode formats plus specialized codes for government, pharmaceutical, and retail applications.
- 1D: Code 39, Code 128, UPC/EAN
- 2D: DataMatrix, QR, PDF417
- Special: Digimarc, IUID, postal codes
Flexible Connectivity
Wireless Bluetooth operation enables mobile scanning without cable restrictions while maintaining reliable data transmission.
- Bluetooth technology
- Wireless data transmission
- Mobile compatibility
Deployment / Use Cases
The DS3678-SR is engineered for industrial scanning applications where reliability and durability are paramount. Its combination of wireless operation, comprehensive symbology support, and rugged construction makes it ideal for environments where traditional scanners might fail.
In warehouse operations, the scanner handles inventory management, receiving, and shipping tasks with its long-range scanning and omni-directional capture capabilities. Manufacturing facilities benefit from its ability to read challenging barcodes on parts, components, and finished goods while withstanding factory floor conditions.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Warehouse Inventory Management
Streamline receiving, put-away, picking, and shipping operations with reliable wireless scanning that works throughout the facility.
Manufacturing Floor Operations
Track work-in-progress, component verification, and quality control with a scanner built to withstand industrial environments.
Physical Profile
The DS3678-SR features a compact handheld design measuring 7.30" high × 3" wide × 5.60" deep, providing an ergonomic grip for extended use. The industrial green color offers visual distinction in busy environments while the 14.4-ounce weight balances durability with operator comfort.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.30" (185.42 mm), 3" (76.20 mm), 5.60" (142.24 mm), 14.40 oz (408.23 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3" (76.20 mm)
- Depth
- 5.60" (142.24 mm)
- Height
- 7.30" (185.42 mm)
- Weight
- 14.40 oz (408.23 g)
Highlights
- Wireless Bluetooth connectivity for mobile scanning freedom
- 1D and 2D barcode scanning with comprehensive symbology support
- 8.6-inch scanning distance for flexible operation
- IP67 and IP65 rated for dust and water resistance
- Survives multiple 8-foot drops to concrete
- Omni-directional scanning pattern for easy capture
- Industrial green rugged housing for durability
- Supports specialized codes including Digimarc and IUID parsing
- 42° horizontal and 28° vertical field of view
- Handheld form factor with ergonomic design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS3678-SR0F003VZWW |
| Brand Name | Zebra |
| Product Series | 3600 |
| Product Model | DS3678-SR |
| Product Name | DS3678-SR Handheld Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN, I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes DotCode Digimarc: Digital watermark technology IUID Support: Supports IUID parsing, the ability to read and separate IUID fields per application requirement |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanner Range | Standard Range |
| Scanning Distance | 8.60" (218.44 mm) |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 0.20" (5.08 mm) |
| Network & Communication | |
| Bluetooth | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Product Color | Industrial Green |
| Height | 7.30" (185.42 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5.60" (142.24 mm) |
| Weight (Approximate) | 14.40 oz (408.23 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP67,IP65 |
| Application/Usage | Industrial,Warehouse,Manufacturing |
User Manual
FAQ
What types of barcodes can the Zebra DS3678-SR scanner read?
The DS3678-SR reads both 1D and 2D barcode formats. For 1D codes, it supports Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, and Base 32 (Italian Pharma). For 2D codes, it handles PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), postal codes, and DotCode. It also supports Digimarc digital watermark technology and IUID parsing for military applications.
How durable is this barcode scanner for industrial use?
The DS3678-SR is built for industrial durability with IP67 and IP65 ingress protection ratings, making it dust-tight and protected against temporary immersion in water. It withstands multiple 8.0-foot drops to concrete, ensuring reliable operation in demanding environments. The rugged construction and industrial green housing are designed to survive the rigors of warehouse, manufacturing, and distribution center applications.
What is the maximum scanning distance for this device?
The scanner has a standard range scanning distance of 8.60 inches (218.44 mm). This provides operators with flexibility in positioning while maintaining reliable barcode capture. The combination of this scanning distance with the 42° horizontal and 28° vertical field of view allows for efficient scanning without requiring precise alignment.
Does this scanner require a direct line of sight to read barcodes?
The DS3678-SR features omni-directional scanning capability, which means it can capture barcodes from various angles without requiring perfect alignment. With reading angles of 60° skew, 60° pitch, and 360° roll, operators can scan barcodes quickly without carefully positioning the scanner. This reduces training time and increases productivity in fast-paced environments.
What wireless connectivity options does this scanner offer?
This scanner uses Bluetooth technology for wireless connectivity, allowing it to transmit scanned data to compatible devices without cable restrictions. The wireless design enables mobile operation throughout facilities while maintaining reliable data transmission. This connectivity approach supports flexible deployment in environments where cable management would be challenging.
What environments is this barcode scanner designed for?
The DS3678-SR is engineered for industrial, warehouse, and manufacturing applications where durability and reliability are essential. Its IP67/IP65 ratings make it suitable for environments with dust, moisture, or occasional water exposure. The drop resistance ensures it can survive accidental impacts common in busy facilities. The comprehensive barcode support handles the diverse labeling requirements found across these industrial settings.
What print speed is listed?
Zebra DS3678-SR Handheld Barcode Scanner - Wireless Connectivity - 8.60" (218.44 mm) Scan Distance - 1D, 2D - Imager - - Bluetooth - - (DS3678-SR0F003VZWW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Zebra DS3678-SR Handheld Barcode Scanner - Wireless Connectivity - 8.60" (218.44 mm) Scan Distance - 1D, 2D - Imager - - Bluetooth - - (DS3678-SR0F003VZWW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
