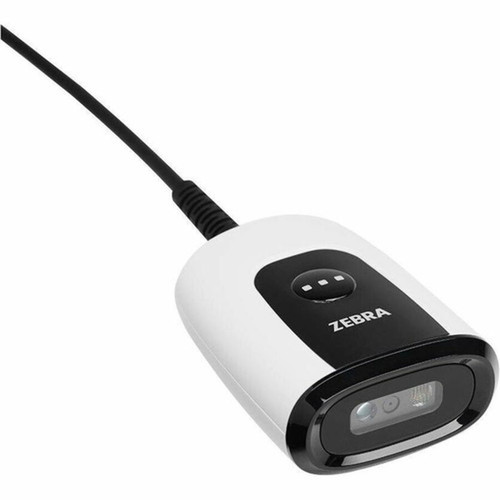

Zebra DS55 DS5502 Barcode Scanner - Cable Connectivity - 35.90" (911.86 mm) Scan Distance - 1D, 2D - LED - Imager - Area, - Serial, - (DS5502-LL4000WZZNA)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
- All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm
- OCR-A, OCR-B, MICR, US Currency
- Designed to withstand multiple drops at 5 ft (1.5m) to concrete
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
OCR:
Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Area,Omni-directional
Scanner Range: Standard Range
Scanning Distance: 35.90" (911.86 mm)
Field of View (Horizontal): 48°
Field of View (Vertical): 30°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Image Formats: BMP,JPEG,TIFF
Maximum Ambient Light: 107600 lux
Drop Specification:
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Features: Notification LED,Data Formatter,Data Parser,Diagnostic Reporting
Host Interface: Serial,USB
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Form Factor: Fixed Mount
Rugged: Yes
Color Family: White
Product Color: Alpine White
Durability: Drop Resistant,Spill Resistant,Dust Resistant
Height: 1.20" (30.48 mm)
Width: 2.20" (55.88 mm)
Depth: 2.80" (71.12 mm)
Weight (Approximate): 2.30 oz (65.20 g)
Ingress Protection (IP) Rating: IP54
Application/Usage: Healthcare,Laboratory,Pharmacy,Specimen Collection,Self Service
Platform Supported: PC,iOS,Android,Linux
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 3 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS5502-LL4000WZZNA |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | DS55 |
| Product Model | DS5502 |
| Product Name | DS55 DS5502 Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
OCR:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Area,Omni-directional |
| Scanner Range | Standard Range |
| Scanning Distance | 35.90" (911.86 mm) |
| Field of View (Horizontal) | 48° |
| Field of View (Vertical) | 30° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Image Formats | BMP,JPEG,TIFF |
| Maximum Ambient Light | 107600 lux |
| Drop Specification |
|
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 15kV |
| Features | Notification LED,Data Formatter,Data Parser,Diagnostic Reporting |
| Interfaces/Ports | |
| Host Interface | Serial,USB |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Fixed Mount |
| Rugged | Yes |
| Color Family | White |
| Product Color | Alpine White |
| Durability | Drop Resistant,Spill Resistant,Dust Resistant |
| Height | 1.20" (30.48 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2.80" (71.12 mm) |
| Weight (Approximate) | 2.30 oz (65.20 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Application/Usage | Healthcare,Laboratory,Pharmacy,Specimen Collection,Self Service |
| Platform Supported | PC,iOS,Android,Linux |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
