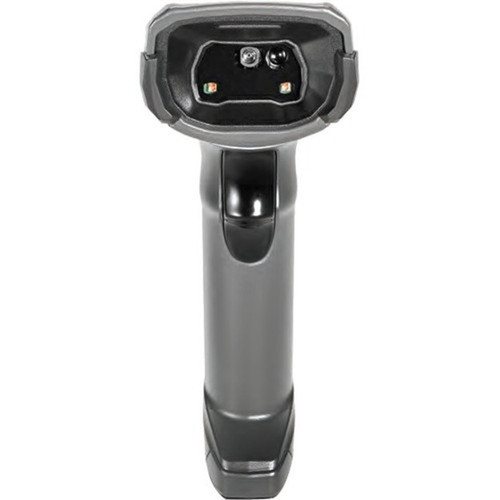

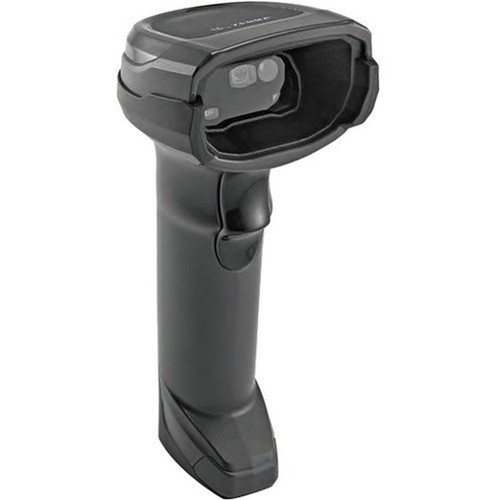

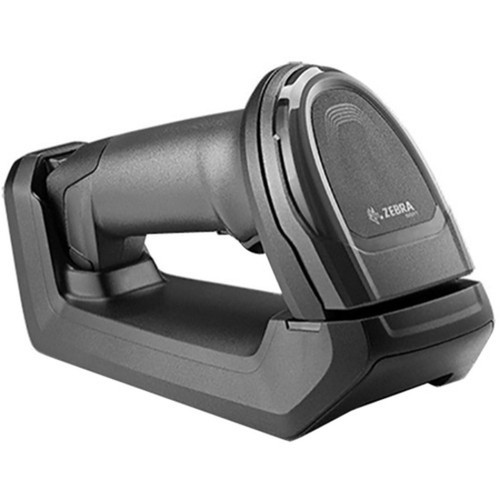

Zebra DS8178-DL7U2100PFW Handheld Barcode Scanner - Wireless Bluetooth Imager - 1D/2D Scanning - Twilight Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner uses an imager-based sensor for accurate barcode capture across a wide range of symbologies. It supports 1D codes including Code 39, Code 128, UPC/EAN, and GS1 DataBar, along with 2D codes such as PDF417, DataMatrix, QR Code, and Aztec. The Bluetooth wireless technology ensures compatibility with smartphones, tablets, and other Bluetooth-enabled devices.
The device operates without physical cables, relying on Bluetooth for data transmission to host systems. This wireless approach supports flexible deployment in environments where mobility is critical, such as stock rooms, store floors, or loading docks.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS8178-DL7U2100PFW scanner provides several advantages for businesses seeking efficient data capture solutions. Its wireless operation enhances user mobility and reduces workspace clutter, while the broad barcode support ensures compatibility with diverse labeling standards.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Mobility, Comprehensive Symbology Support.
Enhanced Mobility
Bluetooth connectivity allows users to move freely without cable restrictions, improving scanning efficiency in dynamic environments.
- Eliminates cable management
- Supports mobile device pairing
- Reduces tripping hazards
Comprehensive Symbology Support
The scanner reads over 20 barcode types, including industry-standard 1D codes and modern 2D codes for data-rich applications.
- Handles PDF417 and DataMatrix
- Supports QR and Aztec codes
- Covers postal and pharmaceutical codes
Deployment / Use Cases
This scanner is suited for retail point-of-sale, inventory management, warehouse receiving, and asset tracking tasks. Its wireless design makes it ideal for environments where users need to scan items at a distance from the host system or while moving between locations.
Common applications include scanning product barcodes at checkout counters, tracking inventory on shelves, verifying shipments in logistics, and managing assets in healthcare or educational settings. The handheld form factor and Twilight Black color provide a durable, professional tool for daily operational use.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The scanner measures 6.60" in height, 2.60" in width, and 4.20" in depth, with an approximate weight of 8.30 ounces. Its compact handheld design fits comfortably in the hand, while the Twilight Black finish offers a sleek, professional appearance that resists smudges and wear.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.60" (167.64 mm), 2.60" (66.04 mm), 4.20" (106.68 mm), 8.30 oz (235.30 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.60" (66.04 mm)
- Depth
- 4.20" (106.68 mm)
- Height
- 6.60" (167.64 mm)
- Weight
- 8.30 oz (235.30 g)
Highlights
- Wireless Bluetooth connectivity for cable-free operation
- Scans both 1D and 2D barcodes with imager sensor
- Supports over 20 barcode symbologies including QR and DataMatrix
- Handheld form factor with ergonomic design
- Twilight Black color for professional appearance
- Compact dimensions: 6.60" H x 2.60" W x 4.20" D
- Lightweight at 8.30 oz for extended use
- Compatible with Bluetooth-enabled smartphones and tablets
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS8178-DL7U2100PFW |
| Brand Name | Zebra |
| Product Series | DS8100 |
| Product Model | DS8178-DL |
| Product Name | DS8178-DL Handheld Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes |
| Image Sensor Type | Imager |
| Network & Communication | |
| Bluetooth | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Twilight Black |
| Height | 6.60" (167.64 mm) |
| Width | 2.60" (66.04 mm) |
| Depth | 4.20" (106.68 mm) |
| Weight (Approximate) | 8.30 oz (235.30 g) |
User Manual
FAQ
What types of barcodes can the Zebra DS8178-DL7U2100PFW scanner read?
This scanner reads both 1D and 2D barcodes. It supports 1D symbologies like Code 39, Code 128, UPC/EAN, and GS1 DataBar, plus 2D codes including PDF417, DataMatrix, QR Code, Aztec, and postal codes. This broad compatibility handles most retail, logistics, and industrial labeling standards.
How does the wireless connectivity work on this barcode scanner?
The scanner uses Bluetooth wireless technology to transmit scanned data to a host device. It pairs with Bluetooth-enabled computers, tablets, or smartphones, eliminating the need for physical cables. This allows mobile operation within Bluetooth range, typically up to 30 feet depending on environment.
What is the image sensor type in this Zebra scanner?
The DS8178-DL7U2100PFW uses an imager sensor for barcode capture. Imagers capture a digital image of the barcode for decoding, providing reliable performance on damaged, poorly printed, or low-contrast labels compared to laser scanners.
What are the physical dimensions and weight of this handheld scanner?
The scanner measures 6.60 inches in height, 2.60 inches in width, and 4.20 inches in depth. It weighs approximately 8.30 ounces (235.30 grams). This compact, lightweight design ensures comfortable handheld use during extended scanning sessions.
What color is the Zebra DS8178-DL7U2100PFW scanner?
This scanner features a Twilight Black finish. Twilight Black is a dark, neutral black color that provides a professional appearance and helps hide smudges or wear in high-use environments like retail or warehouse settings.
Is this scanner suitable for point-of-sale and inventory applications?
Yes, the DS8178-DL7U2100PFW is designed for point-of-sale, inventory management, and asset tracking. Its wireless operation allows cashiers or stock clerks to scan items without cable restrictions, while the broad barcode support handles product UPCs, inventory labels, and shipping codes.
What print speed is listed?
Zebra DS8178-DL Handheld Barcode Scanner - Wireless Connectivity - 1D, 2D - Imager - Bluetooth - Twilight Black (DS8178-DL7U2100PFW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Zebra DS8178-DL Handheld Barcode Scanner - Wireless Connectivity - 1D, 2D - Imager - Bluetooth - Twilight Black (DS8178-DL7U2100PFW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
