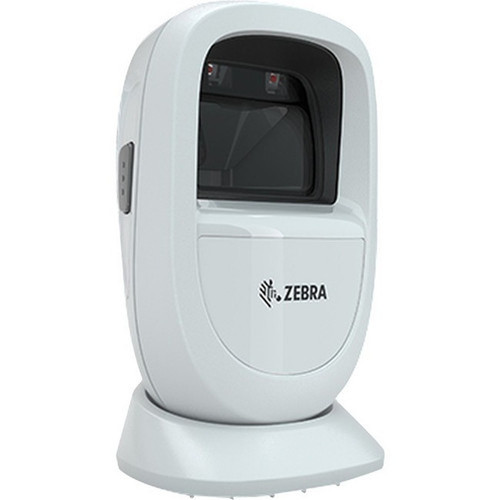

Zebra DS9308-SR0000WZZWW DS9308 Hands-Free Scanner - 1D/2D Imager - 8. 80" Scan Distance - USB/EAS/Keyboard Wedge/Serial - Alpine White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the DS9308 is a high-performance imager sensor capable of reading 1D linear barcodes down to 3 mil and 2D DataMatrix codes from 5 to 10 mil. This optical resolution ensures accurate first-time reads on high-density labels commonly found in pharmaceutical, electronics, and manufacturing applications. The scanner maintains consistent performance under bright ambient light up to 107,700 lux, making it suitable for well-lit storefronts or outdoor loading docks.
Connectivity is handled through a wired cable interface supporting USB, EAS, keyboard wedge, and serial connections, providing compatibility with legacy and modern POS systems. The device outputs captured images in JPEG, BMP, or TIFF formats for documentation or archival purposes. Reading flexibility is enhanced by 60° skew and pitch tolerance plus full 360° roll capability, allowing labels to be scanned from almost any orientation relative to the scanner window.
Barcode Symbology Support
The DS9308 reads an extensive range of 1D codes including Code 39, Code 128, UPC/EAN, and GS1 DataBar, plus 2D codes like DataMatrix, QR Code, PDF417, and Aztec. It also supports postal codes and OCR-A/OCR-B/MICR for check processing and specialized document scanning.
Key Product Advantages
The DS9308 combines hands-free operation with industrial-grade durability to reduce operator fatigue and increase throughput in high-traffic scanning locations. Its drop-tested design survives repeated 5-foot falls onto concrete, minimizing downtime and replacement costs in active retail or warehouse environments.
Superior Scanning Ergonomics
The fixed-mount hands-free design allows cashiers or warehouse staff to keep both hands free for item handling while passing goods over the scan window. This workflow optimization speeds up transaction times and reduces repetitive strain injuries associated with handheld trigger scanning.
Environmental Resilience
With an IP52 rating, the scanner is protected against limited dust ingress and water droplets falling at up to 15° from vertical. This makes it suitable for food service areas, outdoor ticket scanning, or environments where occasional liquid exposure occurs.
Broad System Compatibility
Multiple interface options including keyboard wedge, USB HID, and RS-232 serial ensure seamless integration with virtually any POS system, legacy terminal, or modern PC-based checkout. The EAS (Electronic Article Surveillance) interface supports retail security system integration.
Deployment / Use Cases
The Zebra DS9308 is purpose-built for front-line scanning applications where reliability and scan volume directly impact customer satisfaction and operational efficiency. Its combination of hands-free operation, durable construction, and flexible connectivity makes it ideal for modern retail environments seeking to streamline checkout processes while maintaining scanning accuracy.
In quick-service restaurants, the scanner efficiently processes loyalty cards, coupon barcodes, and mobile payment QR codes at drive-thru windows or counter stations. Transportation and logistics facilities utilize the DS9308 for package sorting, baggage tracking, and freight documentation where consistent scanning of varied label types under challenging lighting conditions is required.
Retail Point-of-Sale
Deploy at supermarket checkouts, department store registers, or specialty retail counters to scan product barcodes, membership cards, and mobile coupons quickly without requiring cashiers to handle a scanner.
- Reduces transaction time
- Minimizes cashier training
- Handles worn or damaged labels
Hospitality & Entertainment
Use for ticket validation at venues, guest registration at hotels, or inventory management in restaurant kitchens where hands need to remain free for handling items or serving customers.
- Scans tickets from any angle
- Withstands high-volume events
- IP52 protection for occasional spills
Physical Profile
The DS9308 presents a compact, low-profile desktop footprint measuring 5.71 inches tall, 3.39 inches wide, and 3.27 inches deep. Its Alpine White housing blends with modern retail decor while providing high visibility for customers indicating the scanning location. The lightweight 11.22-ounce construction allows for secure mounting on countertops, under-shelf installations, or integration into custom checkout stands without requiring substantial structural support.
- Width
- 3.39" (86 mm)
- Depth
- 3.27" (83 mm)
- Height
- 5.71" (145 mm)
- Weight
- 11.22 oz (318 g)
Highlights
- Hands-free 1D/2D desktop barcode scanner for high-volume environments
- 8.80-inch (223.52 mm) scanning distance provides flexible placement options
- Reads Code 39, DataMatrix, QR, PDF417, UPC/EAN, and 30+ other symbologies
- USB, EAS, keyboard wedge, and serial interface connectivity options
- IP52 rating protects against dust and water droplet exposure
- Survives multiple 5-foot drops to concrete for exceptional durability
- 52° horizontal field of view captures poorly presented labels
- Alpine White color suits retail, hospitality, and QSR decor
- Integrated display screen provides immediate scan status feedback
- Ideal for retail POS, transportation, hospitality, and QSR applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS9308-SR0000WZZWW |
| Brand Name | Zebra |
| Product Series | DS9300 |
| Product Model | DS9308 |
| Product Name | DS9308 Hands-Free Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39, Aztec DataMatrix MaxiCode QR Code Micro QR Han Xin Postal Codes securPharm DotCode Dotted DataMatrix OCR: OCR-A OCR-B MICR US currency |
| Image Sensor Type | Imager |
| Scanning Distance | 8.80" (223.52 mm) |
| Display Screen | Yes |
| Field of View (Horizontal) | 52° |
| Field of View (Vertical) | 33° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Image Formats | JPEG,BMP,TIFF |
| Maximum Ambient Light | 107700 lux |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Interfaces/Ports | |
| Host Interface | USB,EAS,Keyboard Wedge,Serial |
| Physical Characteristics | |
| Form Factor | Desktop |
| Product Color | Alpine White |
| Height | 5.71" (145 mm) |
| Width | 3.39" (86 mm) |
| Depth | 3.27" (83 mm) |
| Weight (Approximate) | 11.22 oz (318 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail,Hospitality,Quick Service Restaurant (QSR),Transportation |
| Country of Origin | Vietnam |
User Manual
FAQ
What types of barcodes can the Zebra DS9308 scanner read?
The DS9308 reads both 1D linear barcodes and 2D matrix codes. Its 1D support includes Code 39, Code 128, UPC/EAN, GS1 DataBar, and 10+ other formats. For 2D scanning, it handles DataMatrix, QR Code, PDF417, Aztec, MaxiCode, and several specialized codes including postal codes and securPharm. The scanner also supports OCR-A, OCR-B, and MICR for document processing applications.
What is the maximum scanning distance for this hands-free scanner?
The DS9308 has an optimal scanning distance of 8.80 inches (223.52 millimeters). This generous working range allows items to be passed over the scan window without precise positioning, making it ideal for fast-paced checkout environments where speed is critical. The scanner maintains reliable reads across this entire distance when labels meet the minimum print contrast specification.
How durable is the DS9308 for retail or warehouse use?
The DS9308 is engineered for high-durability applications with a drop specification that withstands multiple 5.0-foot (1.5-meter) drops onto concrete. This rugged construction minimizes damage from accidental knocks or falls in active environments. Additionally, the IP52 ingress protection rating provides defense against limited dust ingress and water droplets, making it suitable for areas with occasional liquid exposure.
What connectivity options does the DS9308 support?
This scanner offers four interface options through its cable connection: USB (HID/keyboard emulation), EAS (Electronic Article Surveillance for retail security systems), keyboard wedge (for legacy POS systems), and RS-232 serial. This multi-interface capability ensures compatibility with virtually any point-of-sale system, from modern PC-based setups to older terminal-based configurations without requiring additional interface converters.
What environments is the DS9308 best suited for?
The DS9308 is designed for retail point-of-sale, hospitality, quick-service restaurants, and transportation applications. Its hands-free operation excels at supermarket checkouts, department store registers, and drive-thru windows. The IP52 rating and drop resistance make it suitable for warehouse package sorting, baggage handling, and freight documentation where equipment faces rough handling and environmental challenges.
Does the DS9308 include a display screen?
Yes, the DS9308 features an integrated display screen that provides immediate visual feedback on scan status. This display helps operators confirm successful barcode reads without relying on auditory cues that might be missed in noisy environments. The visual confirmation reduces rescans and improves transaction accuracy, particularly in high-volume settings where operators process hundreds of items per hour.
