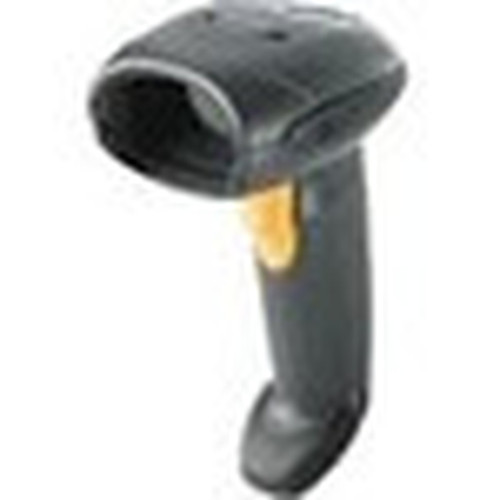

Zebra LI4278-SR20001WR LI4278 Cordless Linear Scanner - Wireless Bluetooth - 547 scan/s - 1D - LED Imager - Cash Register White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner utilizes a linear imager sensor with an LED light source to capture 1D barcodes at speeds up to 547 scans per second. It supports a comprehensive range of barcode symbologies including UPC/EAN, Code 128, Code 39, Interleaved 2 of 5, and GS1 DataBar variants, making it compatible with global retail and logistics standards.
The device features wide reading angles of 65° skew, 65° pitch, and 45° roll, with a motion tolerance of 25 in/s (635 mm/s) to handle fast-moving items. It operates effectively in high ambient light up to 108,000 lux and can decode barcodes with minimum print contrast as low as 15%.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The LI4278 delivers exceptional scanning reliability through advanced optical engineering and robust construction. Its extended scanning range and forgiving reading angles ensure first-time, every-time scans even with damaged, poorly printed, or curved barcode labels.
Wireless Freedom
Bluetooth wireless connectivity allows operators to move freely without cable restrictions, transmitting scanned data directly to PCs, tablets, or smartphones for flexible deployment in various environments.
- Eliminates cable clutter and trip hazards
- Extends operational range beyond wired limitations
- Simplifies integration with mobile devices
Rugged Durability
Built to withstand demanding daily use with drop specifications that exceed 100 drops from 5 feet (1.5 m) and survival from 6-foot (1.8 m) drops to concrete, backed by a 3-year limited warranty.
- IP53 rating protects against dust and water spray
- Reinforced housing for impact resistance
- Reliable performance in harsh conditions
Deployment / Use Cases
This scanner excels in any environment requiring frequent barcode scanning with operator mobility. Healthcare facilities benefit from the quiet LED aimer for patient-facing applications, while mobile field service technicians appreciate the Bluetooth connectivity with smartphones for on-site asset tracking and documentation.
The combination of wireless operation, rugged construction, and high-performance scanning makes the LI4278 suitable for retail, logistics, healthcare, manufacturing, and field service applications where reliable data capture directly impacts operational efficiency.
Retail Point of Sale
Ideal for fast checkout operations where speed and reliability are critical. The cordless design reduces counter clutter while the high scan rate keeps lines moving quickly during peak business hours.
Warehouse & Inventory Management
Perfect for cycle counting, receiving, and picking operations where operators need mobility to scan items on shelves, pallets, or in storage areas without being tethered to a fixed workstation.
Physical Profile
Designed for comfortable all-day use, the LI4278 measures 3.84" (97.54 mm) in height, 2.75" (69.85 mm) in width, and 7.34" (186.44 mm) in depth with a lightweight 7.90 oz (223.96 g) construction. The Cash Register White finish provides a professional appearance that blends seamlessly with retail POS equipment while the ergonomic shape fits naturally in hand for extended scanning sessions.
- Width
- 2.75" (69.85 mm)
- Depth
- 7.34" (186.44 mm)
- Height
- 3.84" (97.54 mm)
- Weight
- 7.90 oz (223.96 g)
Highlights
- Wireless Bluetooth connectivity for cable-free operation
- High-speed scanning at 547 scans per second
- 1D barcode support with comprehensive symbology coverage
- LED imager technology for reliable scanning performance
- Rugged IP53-rated construction withstands demanding environments
- Extended scanning range up to 3 inches (76.20 mm)
- Wide reading angles for flexible scanning positions
- Compatible with PC and smartphone platforms
- 3-year limited warranty for peace of mind
- Environmentally compliant with RoHS standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | LI4278-SR20001WR |
| Brand Name | Zebra |
| Product Model | LI4278 |
| Product Name | LI4278 Cordless Linear Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D |
| Barcode Symbology Supported | UPC/EAN: UPC-A UPC-E UPC-E1 EAN-8/JAN 8 EAN-13/JAN 13 Bookland EAN Bookland ISBN Format UCC Coupon Extended Code ISSN EAN Code 128 Including GS1-128 ISBT 128 ISBT Concatenation? Code 39 including Trioptic Code 39 Convert Code 39 to Code 32 (Italian Pharmacy Code) Code 39 Full ASCII Conversion Code 93 Code 11? Matrix 2 of 5 Interleaved 2 of 5 (ITF)? Discrete 2 of 5 (DTF) ? Codabar (NW - 7)? MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars)? GS1 DataBar including GS1 DataBar-14 GS1 DataBar Limited GS1 DataBar Expanded |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Rate | 547 scan/s |
| Scan Pattern | Linear |
| Scanner Range | Extended Range |
| Scanning Distance | 3" (76.20 mm) |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 45° |
| Motion Tolerance | 25 in/s (635 mm/s) |
| Maximum Ambient Light | 108000 lux |
| Drop Specification | Over 100 drops at 5 ft./1.5 m at room temperature; survives 6ft./1.8 m drops to concrete |
| Minimum Print Contrast | 15% |
| Network & Communication | |
| Bluetooth | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Cash Register White |
| Height | 3.84" (97.54 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 7.34" (186.44 mm) |
| Weight (Approximate) | 7.90 oz (223.96 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP53 |
| Platform Supported | PC,Smartphone |
| Country of Origin | Mexico |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of barcodes can the Zebra LI4278 scanner read?
The LI4278 reads 1D (linear) barcodes including UPC/EAN variants, Code 128, Code 39, Interleaved 2 of 5, Code 93, Code 11, Matrix 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, IATA, and GS1 DataBar formats. It supports the comprehensive symbology set needed for retail, logistics, healthcare, and industrial applications worldwide.
How does the wireless connectivity work with this scanner?
The scanner uses Bluetooth wireless technology to transmit scanned data to compatible devices. It pairs with PCs, tablets, and smartphones, eliminating cable restrictions and allowing operators to move freely within the Bluetooth range while maintaining reliable data transmission for point-of-sale, inventory management, or mobile data collection applications.
What is the scanning distance and reading angle range?
The LI4278 has an extended scanning distance of 3 inches (76.20 mm) from the barcode surface. It features wide reading angles of 65° skew, 65° pitch, and 45° roll, combined with a motion tolerance of 25 inches per second (635 mm/s). This forgiving optical system ensures reliable scanning even when barcodes are presented at awkward angles or on moving items.
How durable is this barcode scanner for daily use?
Built to withstand demanding environments, the LI4278 exceeds 100 drops from 5 feet (1.5 m) at room temperature and survives 6-foot (1.8 m) drops to concrete. It carries an IP53 ingress protection rating, meaning it's protected against dust ingress and water spray from any direction up to 60°, making it suitable for retail, warehouse, and industrial applications.
What warranty and environmental certifications does this product have?
Zebra provides a 3-year limited warranty covering defects in materials and workmanship. The product is environmentally compliant with Restriction of Hazardous Substances (RoHS) standards and is manufactured in Mexico. The IP53 rating and rugged construction ensure long-term reliability in various operating conditions.
What print speed is listed?
Zebra LI4278 Cordless Linear Scanner - Wireless Connectivity - 547 scan/s - 3" (76.20 mm) Scan Distance - 1D - LED - Imager - Linear - (LI4278-SR20001WR) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Zebra LI4278 Cordless Linear Scanner - Wireless Connectivity - 547 scan/s - 3" (76.20 mm) Scan Distance - 1D - LED - Imager - Linear - (LI4278-SR20001WR) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What duplex or duty-cycle detail is listed?
Zebra LI4278 Cordless Linear Scanner - Wireless Connectivity - 547 scan/s - 3" (76.20 mm) Scan Distance - 1D - LED - Imager - Linear - (LI4278-SR20001WR) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
