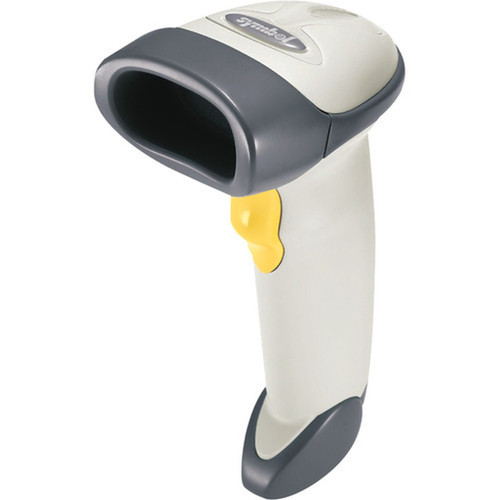

Zebra LS2208-SR20001R-NA General Purpose Barcode Scanner - 1D Laser - 100 scan/s - USB Cable - Cash Register White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The LS2208 scanner uses a laser light source to achieve its 100 scan/s decode rate, supporting a comprehensive range of 1D barcode symbologies including UPC/EAN, Code 128, Code 39, Interleaved 2 of 5, and GS1 DataBar variants. This broad compatibility ensures the scanner can handle retail, logistics, and industrial barcode formats without requiring configuration changes for different label types.
Bi-directional scanning allows the laser to read barcodes in both horizontal directions, increasing first-pass success rates and reducing operator effort during high-volume scanning sessions. The scanner's USB host interface provides direct communication with POS systems, computers, and cash registers, transmitting decoded data instantly for real-time processing.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The LS2208 delivers exceptional value through its combination of speed, reliability, and ease of integration. The wired USB connection eliminates connectivity drops and battery maintenance, while the lightweight handheld design reduces operator fatigue during extended use.
High-Speed Operation
With 100 scans per second capability, this scanner processes barcodes faster than most retail transactions require, preventing bottlenecks at checkout counters and inventory stations.
- Reduces queue wait times
- Minimizes rescans
- Handles peak traffic smoothly
Broad Compatibility
Support for 18+ 1D barcode symbologies means the LS2208 works with virtually any standard barcode format used in retail, warehouse, and office environments.
- No format limitations
- Reduces scanner inventory
- Simplifies training
Deployment / Use Cases
The LS2208 is specifically designed for environments where reliable, high-speed barcode scanning directly impacts operational efficiency. Its wired connectivity and durable construction make it ideal for fixed-position applications where consistent performance outweighs the need for mobility.
In retail settings, the scanner integrates seamlessly with cash register systems to accelerate checkout processes while maintaining accurate inventory tracking. For back-office operations, it enables rapid processing of incoming shipments, cycle counts, and asset management tasks without the connectivity issues that can plague wireless alternatives.
Retail Point of Sale
Deploy at checkout counters for fast product scanning during customer transactions. The cash register white color matches standard POS aesthetics while the USB connection ensures uninterrupted operation during business hours.
Inventory Management
Use in stockrooms and warehouses for receiving, put-away, and cycle counting operations. The bi-directional scanning and comprehensive symbology support handle diverse product labeling from multiple suppliers.
Physical Profile
Measuring 5.98" × 2.48" × 3.31" (152 × 63 × 84 mm) and weighing just 5.15 ounces (146 g), the LS2208 offers an ergonomic handheld form factor that fits comfortably in operators' hands during extended scanning sessions. The cash register white finish provides visual distinction from darker equipment while maintaining a professional appearance that complements retail environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.98" (152 mm), 2.48" (63 mm), 3.31" (84 mm), 5.15 oz (146 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.48" (63 mm)
- Depth
- 3.31" (84 mm)
- Height
- 5.98" (152 mm)
- Weight
- 5.15 oz (146 g)
Highlights
- 100 scans per second laser scanning capability
- USB cable connectivity for reliable wired operation
- Supports 18+ 1D barcode symbologies including UPC/EAN and Code 128
- Bi-directional scanning pattern increases first-pass success rates
- Handheld form factor with cash register white finish
- 5-year limited warranty for long-term reliability
- RoHS compliant for environmental responsibility
- Made in Mexico with quality manufacturing standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | LS2208-SR20001R-NA |
| Brand Name | Zebra |
| Product Line | Symbol |
| Product Model | LS2208 |
| Product Name | LS2208 General Purpose Bar Code Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | UPC/EAN UPC/EAN with Supplementals UPC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2 of 5 Discrete 2 of 5 Code 93 MSI Code 11 IATA GS1 DataBar (Formerly RSS) Variants Chinese 2 of 5 |
| Light Source | Laser |
| Scan Rate | 100 scan/s |
| Scan Pattern | Bi-directional |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Cash Register White |
| Height | 5.98" (152 mm) |
| Width | 2.48" (63 mm) |
| Depth | 3.31" (84 mm) |
| Weight (Approximate) | 5.15 oz (146 g) |
| Miscellaneous | |
| Country of Origin | Mexico |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What types of barcodes can the Zebra LS2208 scanner read?
The LS2208 reads 1D barcodes exclusively, supporting over 18 different symbologies including UPC/EAN (with supplementals), Code 128, Code 39 (Full ASCII and TriOptic variants), Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS), and Chinese 2 of 5. This comprehensive coverage ensures compatibility with retail product labels, shipping labels, inventory tags, and most commercial barcode applications.
How fast does this barcode scanner operate?
The LS2208 achieves a scan rate of 100 scans per second using its laser light source. This high-speed performance enables rapid processing of barcodes in busy retail environments, reducing transaction times at checkout counters and increasing throughput in inventory management applications where multiple items need scanning in quick succession.
What connectivity options does this scanner support?
This scanner features USB cable connectivity exclusively, providing a wired connection to point-of-sale systems, computers, and cash registers. The cable connectivity ensures stable data transmission without wireless interference or battery concerns, making it ideal for fixed-position applications where reliability is more important than mobility.
Is the LS2208 suitable for retail cash register use?
Yes, the LS2208 is specifically designed for retail environments with its cash register white color that matches standard POS aesthetics. The handheld form factor, bi-directional scanning, and 100 scan/s capability make it excellent for checkout counter deployment where fast, accurate barcode reading directly impacts customer service and operational efficiency.
What warranty coverage comes with this barcode scanner?
Zebra provides a 5-year limited warranty for the LS2208 scanner, offering substantial protection against manufacturing defects and component failures. This extended warranty period reflects the product's durability and reliability for commercial applications where scanner downtime can disrupt business operations.
What are the physical dimensions and weight of this scanner?
The LS2208 measures 5.98 inches in height, 2.48 inches in width, and 3.31 inches in depth (152 × 63 × 84 mm). It weighs approximately 5.15 ounces (146 grams), making it lightweight enough for comfortable handheld operation during extended scanning sessions without causing operator fatigue.
What print speed is listed?
Zebra LS2208 General Purpose Bar Code Scanner - Cable Connectivity - 100 scan/s - 1D - Laser - Bi-directional - USB - Cash Register (LS2208-SR20001R-NA) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Zebra LS2208 General Purpose Bar Code Scanner - Cable Connectivity - 100 scan/s - 1D - Laser - Bi-directional - USB - Cash Register (LS2208-SR20001R-NA) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
