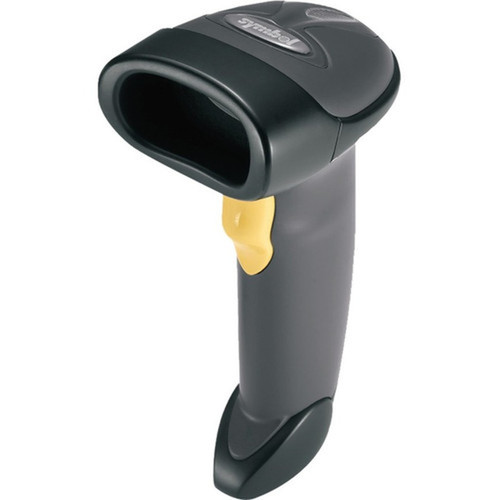

Zebra LS2208-7AZU0100ZR Handheld Barcode Scanner - Wired USB - Laser 1D - 100 scan/s - Twilight Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The LS2208 scanner achieves 100 scans per second with laser illumination, supporting a comprehensive range of 1D barcode symbologies including Code 128, Code 39, UPC, Codabar, and Interleaved 2 of 5. The single-line scan pattern provides consistent reading performance with flexible positioning angles.
Technical specifications include a 17-inch optimal scanning distance, reading angles of 60° skew, 65° pitch, and 30° roll, and operation in ambient light up to 86111 lux. The scanner handles barcodes with print contrast as low as 20% and resolves Code 39 elements from 3 mil to 40 mil.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The LS2208 scanner provides distinct advantages for organizations requiring dependable barcode capture without wireless complexity. The wired USB connection ensures consistent data transmission without battery concerns or pairing issues.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Rugged Construction, Advanced Scanning Capabilities.
Rugged Construction
Designed to withstand multiple drops from 5 feet onto concrete, the LS2208 meets the physical demands of retail counters, warehouse stations, and educational labs.
- IP30 ingress protection
- Twilight Black finish
- Ergonomic handheld form
Advanced Scanning Capabilities
Laser technology enables effective scanning in low ambient lighting while maintaining high-speed performance across various barcode qualities and orientations.
- 100 scans per second
- Wide reading angles
- Low print contrast handling
Deployment / Use Cases
The LS2208 scanner excels in point-of-sale, inventory management, and asset tracking applications where reliable wired connectivity simplifies deployment. Retail environments benefit from the rapid scanning speed during customer transactions, while educational institutions can implement the scanner for library systems, equipment tracking, or laboratory inventory.
Desktop configurations in offices, warehouses, and service counters gain immediate plug-and-play functionality with the included USB cable. The scanner's standard range and flexible reading angles accommodate various barcode placements on products, documents, and identification badges.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Retail Point of Sale
Speed customer transactions with rapid barcode scanning at checkout counters, price verification stations, and returns desks.
Educational Asset Management
Track textbooks, equipment, and supplies across classrooms, libraries, and laboratories with reliable barcode identification.
Physical Profile
The LS2208 features a compact handheld design measuring 6 inches high, 2.5 inches wide, and 3.34 inches deep, with a lightweight 5.15-ounce construction that reduces operator fatigue during extended use. The Twilight Black finish provides professional aesthetics while the ergonomic shape ensures comfortable grip and trigger access.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6" (152.40 mm), 2.50" (63.50 mm), 3.34" (84.84 mm), 5.15 oz (146.000044 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.50" (63.50 mm)
- Depth
- 3.34" (84.84 mm)
- Height
- 6" (152.40 mm)
- Weight
- 5.15 oz (146.000044 g)
What's in the Box
The scanner ships with the essential USB cable for immediate connectivity to PC systems.
Package contents include USB. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Laser 1D barcode scanner with 100 scans per second performance
- Wired USB connectivity for reliable desktop deployment
- Supports comprehensive 1D symbologies including Code 128, Code 39, and UPC
- Rugged construction withstands drops from 5 feet to concrete
- IP30 rating provides basic ingress protection
- Twilight Black color with compact handheld form factor
- Optimal 17-inch scanning distance with flexible reading angles
- RoHS compliant and environmentally friendly design
- Ideal for retail point-of-sale and educational applications
- Includes USB cable for immediate PC connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | LS2208-7AZU0100ZR |
| Brand Name | Zebra |
| Product Line | Symbol |
| Product Model | LS2208 |
| Product Name | Symbol LS2208 Handheld Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | Full ASCII Discrete 2 of 5 Codabar Code 128 Code 11 UPC Interleaved 2 of 5 Code 128 Full ASCII Code 39 Trioptic |
| Light Source | Laser |
| Scan Rate | 100 scan/s |
| Scan Pattern | Single Line |
| Scanner Range | Standard Range |
| Scanning Distance | 17" (431.80 mm) |
| Cable Type Included | USB |
| Stand Included | No |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 30° |
| Maximum Ambient Light | 86111 lux |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 40 mil (1.02 mm) |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Black |
| Product Color | Twilight Black |
| Height | 6" (152.40 mm) |
| Width | 2.50" (63.50 mm) |
| Depth | 3.34" (84.84 mm) |
| Weight (Approximate) | 5.15 oz (146.000044 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP30 |
| Application/Usage | Retail,Education |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What type of barcodes does the Zebra LS2208 scanner read?
The LS2208 reads 1D linear barcodes including Code 128, Code 39, UPC, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 11, and Trioptic symbologies. It does not support 2D barcodes like QR codes or Data Matrix.
How does the wired USB connectivity benefit this scanner?
Wired USB connectivity provides reliable, consistent data transmission without wireless interference, pairing requirements, or battery concerns. The included USB cable enables plug-and-play operation with PC systems, making deployment straightforward for desktop applications.
What is the scanning speed of the LS2208 scanner?
The scanner achieves 100 scans per second using laser illumination technology. This high-speed performance allows rapid barcode capture during transactions, inventory counts, and asset tracking operations.
How durable is the LS2208 scanner for retail environments?
The scanner is designed to withstand multiple drops from 5 feet onto concrete surfaces, making it suitable for high-traffic retail counters and warehouse stations. It carries an IP30 ingress protection rating for basic dust and moisture resistance.
What are the optimal scanning conditions for this device?
The laser scanning technology works effectively in ambient light up to 86111 lux and handles barcodes with print contrast as low as 20%. The 17-inch optimal scanning distance and wide reading angles provide flexibility for various barcode placements.
What comes in the box with the LS2208 scanner?
The package includes the handheld scanner with attached USB cable for immediate connectivity to PC systems. No stand or additional accessories are included, keeping the deployment simple and cost-effective.
