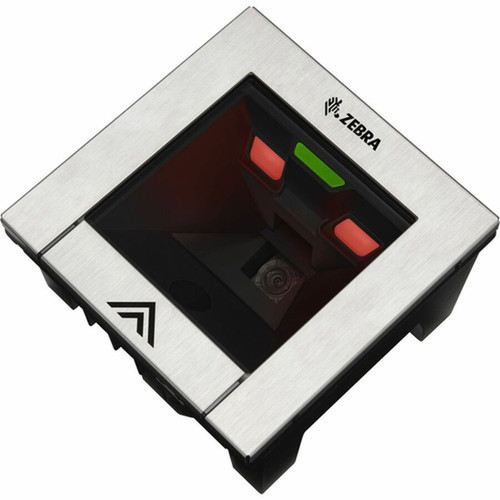

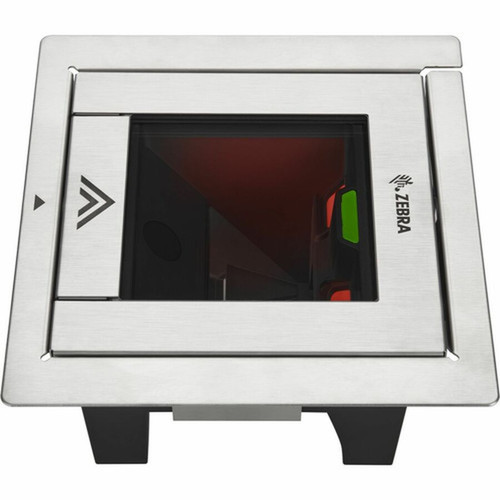

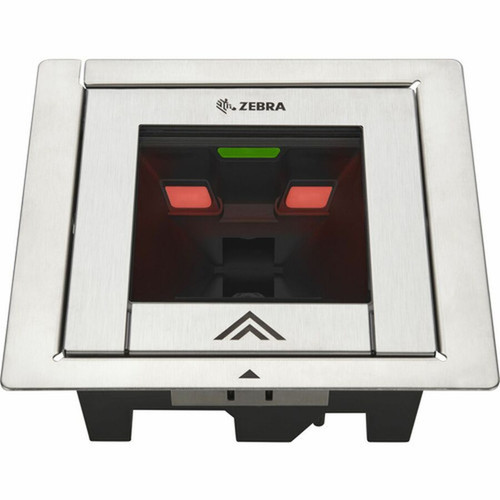

Zebra SP72-H Horizontal Single-Plane Scanner - Wireless Connectivity - 7.64" (194 mm) Scan Distance - USB - Midnight Black - IP52, - (SP7201-SH00004SCWW)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Wireless
Scanner Range: Standard Range
Scanning Distance: 7.64" (194 mm)
Field of View (Horizontal): 129°
Field of View (Vertical): 76°
Reading Angle (Skew): 70°
Reading Angle (Pitch): 80°
Reading Angle (Roll): 360°
Image Formats: BMP,JPEG
Maximum Ambient Light: 86100 lux
Drop Specification:
5 ft./1.5 m
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Minimum Element Resolution (DataMatrix): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 15 mil (0.38 mm)
Maximum Element Resolution (PDF417): 15 mil (0.38 mm)
Illumination Type: LED
Illumination Color: Red
Features: Checkpoint EAS,Sensormatic EAS,Beep,Notification LED
Host Interface: USB
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 20% to 95%
Rugged: Yes
Product Color: Midnight Black
Height: 6" (152.40 mm)
Width: 6" (152.40 mm)
Depth: 3.40" (86.36 mm)
Weight (Approximate): 1.90 lb (861.83 g)
Ingress Protection (IP) Rating: IP52,IP66
Application/Usage: Retail,Pharmacy,Convenience Store
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | SP7201-SH00004SCWW |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | SP72 |
| Product Model | SP7201-H |
| Product Name | SP72-H Horizontal Single-Plane Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanner Range | Standard Range |
| Scanning Distance | 7.64" (194 mm) |
| Field of View (Horizontal) | 129° |
| Field of View (Vertical) | 76° |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 80° |
| Reading Angle (Roll) | 360° |
| Image Formats | BMP,JPEG |
| Maximum Ambient Light | 86100 lux |
| Drop Specification | 5 ft./1.5 m |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 15 mil (0.38 mm) |
| Maximum Element Resolution (PDF417) | 15 mil (0.38 mm) |
| Illumination Type | LED |
| Illumination Color | Red |
| Features | Checkpoint EAS,Sensormatic EAS,Beep,Notification LED |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 20% to 95% |
| Physical Characteristics | |
| Rugged | Yes |
| Product Color | Midnight Black |
| Height | 6" (152.40 mm) |
| Width | 6" (152.40 mm) |
| Depth | 3.40" (86.36 mm) |
| Weight (Approximate) | 1.90 lb (861.83 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52,IP66 |
| Application/Usage | Retail,Pharmacy,Convenience Store |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
