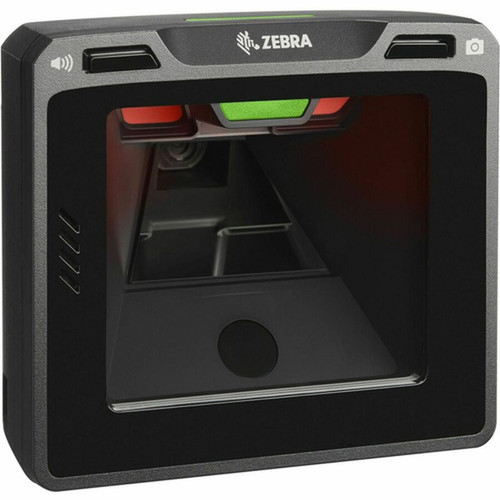

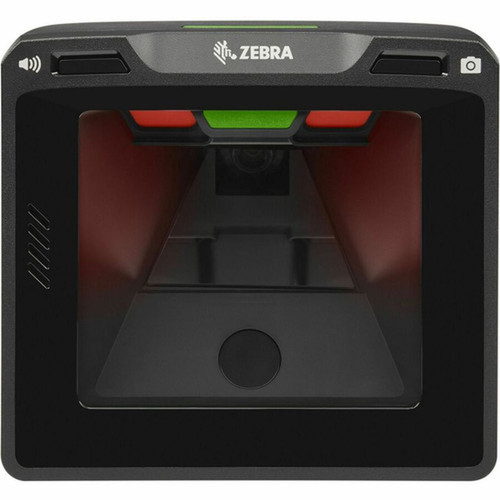

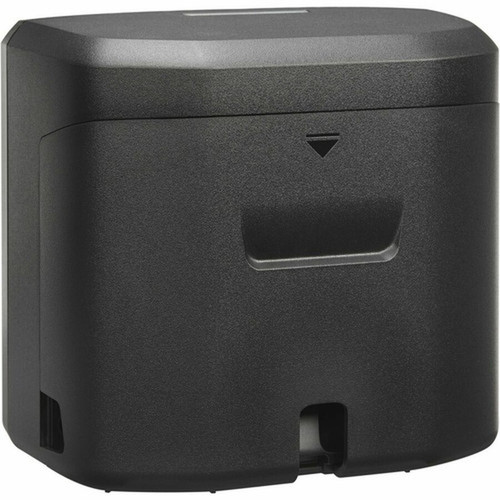

Zebra SP7208-SH00004DCWW SP72-H Single-Plane Scanner - 7. 64" Scan Distance - Multi-interface - Midnight Black - IP52 - Retail - Pharmacy
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner utilizes red LED illumination for consistent barcode capture across lighting conditions, handling ambient light up to 86100 lux. It supports common image formats including BMP and JPEG, with precise element resolution handling from 3 mil for Code 39 up to 15 mil for DataMatrix and PDF417 codes.
The scanner operates reliably across a broad temperature range from 32°F to 122°F and stores safely from -40°F to 158°F. With 20% to 95% humidity tolerance (non-condensing), it maintains performance in varied retail environments.
This section brings together practical product details such as Scanning Distance, Field of View (Horizontal), Field of View (Vertical), Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SP72-H combines scanning precision with environmental durability for continuous retail operation. Its 360° roll reading capability allows flexible scanner positioning, while the 70° skew and 80° pitch angles accommodate varied label orientations without repositioning items.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Wide 129° horizontal field of view, Red LED illumination for consistent reads, Notification LED and audible beep feedback, Checkpoint and Sensormatic EAS compatibility.
Deployment / Use Cases
This scanner excels in retail environments where speed and reliability directly impact customer throughput. Pharmacy applications benefit from its ability to read small-print medication barcodes with 3 mil resolution, while convenience stores appreciate the durability against spills and dust.
The IP52 rating makes it suitable for front-counter installations where occasional liquid exposure occurs. Multi-interface support allows seamless integration with legacy systems or modern POS hardware, minimizing deployment complexity across different store formats.
Retail Checkout
Optimized for fast scanning of grocery items, electronics, and apparel with varied barcode placements and lighting conditions.
- 7.64" standoff distance reduces operator fatigue
- Handles high ambient light from store lighting
- EAS features support loss prevention systems
Pharmacy Workflow
Precisely reads prescription labels and medication barcodes where accuracy is critical for patient safety.
- 3 mil minimum resolution for small print
- Consistent performance in controlled environments
- Minimal print contrast requirement of 15%
Physical Profile
The compact 6" square footprint with 3.40" depth fits comfortably on countertops without consuming excessive space. The Midnight Black finish presents a professional appearance that blends with modern retail fixtures. At 1.84 pounds, the scanner remains stable during use while allowing easy repositioning when needed.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6" (152.40 mm), 6" (152.40 mm), 3.40" (86.36 mm), 1.84 lb (833.48 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6" (152.40 mm)
- Depth
- 3.40" (86.36 mm)
- Height
- 6" (152.40 mm)
- Weight
- 1.84 lb (833.48 g)
Highlights
- 7.64" (194 mm) scanning distance for flexible positioning
- 129° horizontal and 76° vertical field of view
- Multi-interface host connectivity for system compatibility
- IP52 ingress protection against dust and water splashes
- Midnight Black durable housing for retail environments
- Operating temperature range: 32°F to 122°F (0°C to 50°C)
- Red LED illumination with 86100 lux ambient light tolerance
- Checkpoint EAS and Sensormatic EAS security features
- Notification LED and audible beep for scan confirmation
- Optimized for retail, pharmacy, and convenience store applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | SP7208-SH00004DCWW |
| Brand Name | Zebra |
| Product Series | SP72 |
| Product Model | SP72-H |
| Product Name | SP72 Series Single-Plane Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Scanning Distance | 7.64" (194 mm) |
| Field of View (Horizontal) | 129° |
| Field of View (Vertical) | 76° |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 80° |
| Reading Angle (Roll) | 360° |
| Image Formats | BMP,JPEG |
| Maximum Ambient Light | 86100 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 15 mil (0.38 mm) |
| Maximum Element Resolution (PDF417) | 15 mil (0.38 mm) |
| Illumination Type | LED |
| Illumination Color | Red |
| Features | Checkpoint EAS,Sensormatic EAS,Notification LED,Beep |
| Interfaces/Ports | |
| Host Interface | Multi-interface |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 20% to 95% |
| Physical Characteristics | |
| Product Color | Midnight Black |
| Height | 6" (152.40 mm) |
| Width | 6" (152.40 mm) |
| Depth | 3.40" (86.36 mm) |
| Weight (Approximate) | 1.84 lb (833.48 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail,Pharmacy,Convenience Store |
User Manual
FAQ
What is the scanning distance of the Zebra SP72-H scanner?
The scanner has a 7.64-inch (194 mm) scanning distance, allowing operators to read barcodes from a comfortable standoff position. This distance reduces fatigue during extended use while maintaining reliable capture rates across various label types and surfaces.
What interfaces does this barcode scanner support?
This scanner features multi-interface connectivity, providing compatibility with various host systems and point-of-sale equipment. The flexible interface options simplify integration into existing retail environments without requiring specific interface hardware.
What environmental protection does the IP52 rating provide?
The IP52 rating indicates protection against dust ingress that could interfere with operation and protection from water droplets falling at up to 15 degrees from vertical. This makes the scanner suitable for retail environments where occasional spills or dust exposure may occur.
What types of barcodes can this scanner read?
The scanner handles standard barcode types including Code 39, DataMatrix, and PDF417 with resolution ranges from 3 mil to 15 mil depending on the symbology. It maintains reliable reading performance across these common retail and pharmaceutical barcode formats.
What are the physical dimensions of the scanner?
The scanner measures 6 inches in height, 6 inches in width, and 3.40 inches in depth (152.40 mm x 152.40 mm x 86.36 mm). This compact footprint fits easily on retail countertops while providing stable operation during scanning tasks.
What retail environments is this scanner designed for?
The SP72-H is optimized for retail, pharmacy, and convenience store applications where reliable barcode scanning directly impacts operational efficiency. Its durability features and scanning performance make it suitable for high-volume environments with varied lighting and environmental conditions.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
