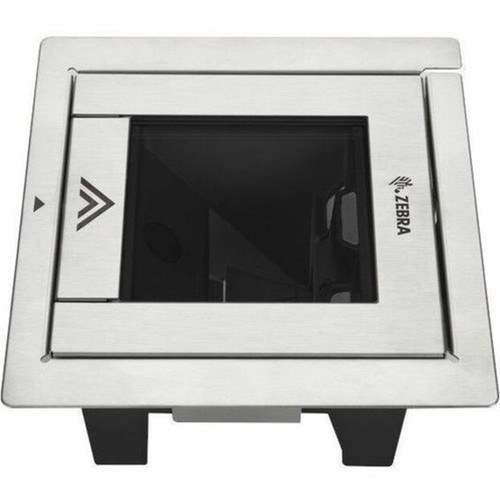

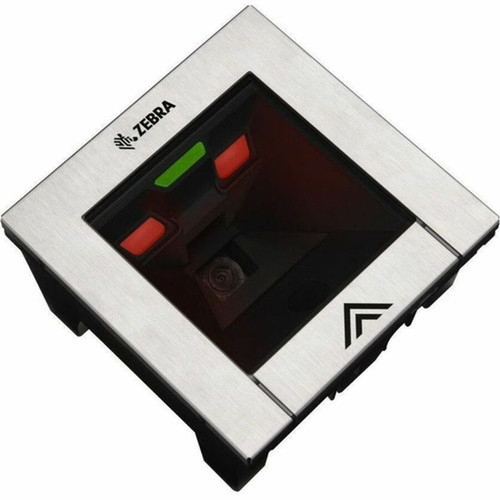

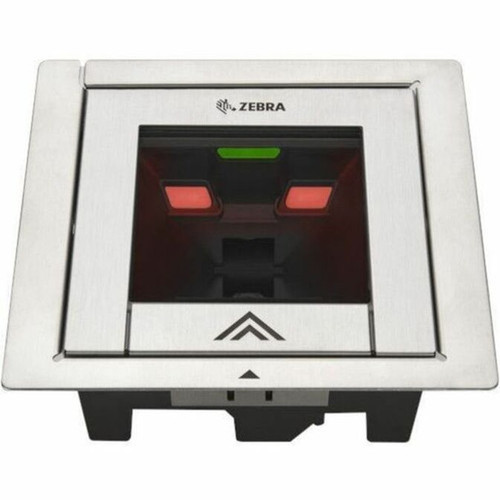

Zebra SP72 SP7208-H Barcode Scanner Kit - 7.60" (193.04 mm) Scan Distance - 2D, 1D - Imager - USB, Serial, Keyboard Wedge, IBM 46XX - (SP7208-SH4U2100BGW)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Scanning Capability: 2D,1D
Image Sensor Type: Imager
Scanner Range: Short Range
Scanning Distance: 7.60" (193.04 mm)
Cable Type Included: USB
Field of View (Horizontal): 54°
Field of View (Vertical): 36°
Reading Angle (Skew): 70°
Reading Angle (Pitch): 80°
Reading Angle (Roll): 360°
Image Formats: JPEG
Maximum Ambient Light: 86100 lux
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Minimum Element Resolution (DataMatrix): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 15 mil (0.38 mm)
Minimum Element Resolution (PDF417): 15 mil (0.38 mm)
Image Sensor Resolution: 1920 x 1200
Illumination Type: LED
Illumination Color: Red
Air Electrostatic Discharge (+/-): 15kV
Features: Checkpoint EAS,Sensormatic EAS,Beep
Host Interface: USB,Serial,Keyboard Wedge,IBM 46XX
Input Current: 480 mA
Standby Current: 240 mA
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 20% to 95%
Color Family: Black
Product Color: Midnight Black
Height: 6" (152.40 mm)
Width: 6" (152.40 mm)
Depth: 3.40" (86.36 mm)
Ingress Protection (IP) Rating: IP52
Application/Usage: Pharmacy,Convenience Store
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | SP7208-SH4U2100BGW |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | SP72 |
| Product Model | SP7208-H |
| Product Name | SP72 SP7208-H Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Scanning Capability | 2D,1D |
| Image Sensor Type | Imager |
| Scanner Range | Short Range |
| Scanning Distance | 7.60" (193.04 mm) |
| Cable Type Included | USB |
| Field of View (Horizontal) | 54° |
| Field of View (Vertical) | 36° |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 80° |
| Reading Angle (Roll) | 360° |
| Image Formats | JPEG |
| Maximum Ambient Light | 86100 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 15 mil (0.38 mm) |
| Minimum Element Resolution (PDF417) | 15 mil (0.38 mm) |
| Image Sensor Resolution | 1920 x 1200 |
| Illumination Type | LED |
| Illumination Color | Red |
| Air Electrostatic Discharge (+/-) | 15kV |
| Features | Checkpoint EAS,Sensormatic EAS,Beep |
| Interfaces/Ports | |
| Host Interface | USB,Serial,Keyboard Wedge,IBM 46XX |
| Power Description | |
| Input Current | 480 mA |
| Standby Current | 240 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 20% to 95% |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Midnight Black |
| Height | 6" (152.40 mm) |
| Width | 6" (152.40 mm) |
| Depth | 3.40" (86.36 mm) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Pharmacy,Convenience Store |
