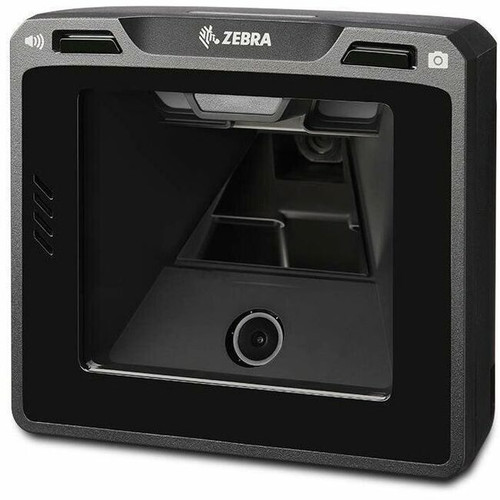

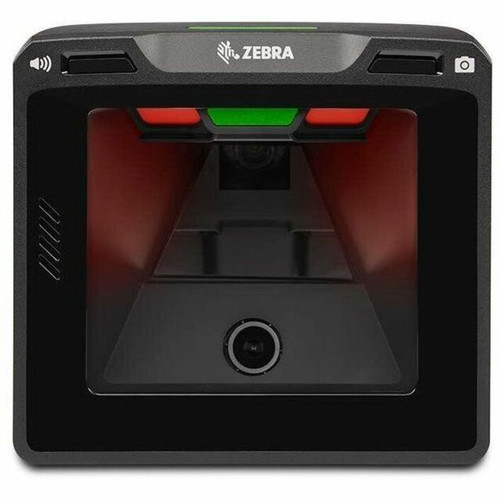

Zebra SP72-V Barcode Scanner - Cable Connectivity - 9.02" (229 mm) Scan Distance - 1D, 2D - Imager - USB - Midnight Black - IP52 - (SP7201-SV00004ZSWW)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
- All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm
- Digimarc barcodes
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
Digimarc:
Image Sensor Type: Imager
Scanner Range: Standard Range
Scanning Distance: 9.02" (229 mm)
Reading Angle (Skew): 70°
Reading Angle (Pitch): 80°
Reading Angle (Roll): 360°
Image Formats: BMP,JPEG,RAW
Maximum Ambient Light: 86100 lux
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Minimum Element Resolution (DataMatrix): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 15 mil (0.38 mm)
Maximum Element Resolution (PDF417): 15 mil (0.38 mm)
Image Sensor Resolution: 1920 x 1200
Illumination Type: LED
Illumination Color: Red
Features: Checkpoint EAS,Sensormatic EAS,Beep,Notification LED
Host Interface: USB
Standby Current: 240 mA
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 20% to 95%
Form Factor: In-counter
Color Family: Black
Product Color: Midnight Black
Durability: Scratch Resistant,Dust Resistant,Spill Resistant
Height: 5.40" (137.16 mm)
Width: 6" (152.40 mm)
Depth: 3.30" (83.82 mm)
Weight (Approximate): 1.27 lb (577 g)
Ingress Protection (IP) Rating: IP52
Application/Usage: Retail,Pharmacy,Convenience Store,Self-checkout
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | SP7201-SV00004ZSWW |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | SP72 |
| Product Model | SP72-V |
| Product Name | SP72-V Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
Digimarc:
|
| Image Sensor Type | Imager |
| Scanner Range | Standard Range |
| Scanning Distance | 9.02" (229 mm) |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 80° |
| Reading Angle (Roll) | 360° |
| Image Formats | BMP,JPEG,RAW |
| Maximum Ambient Light | 86100 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 15 mil (0.38 mm) |
| Maximum Element Resolution (PDF417) | 15 mil (0.38 mm) |
| Image Sensor Resolution | 1920 x 1200 |
| Illumination Type | LED |
| Illumination Color | Red |
| Features | Checkpoint EAS,Sensormatic EAS,Beep,Notification LED |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Standby Current | 240 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 20% to 95% |
| Physical Characteristics | |
| Form Factor | In-counter |
| Color Family | Black |
| Product Color | Midnight Black |
| Durability | Scratch Resistant,Dust Resistant,Spill Resistant |
| Height | 5.40" (137.16 mm) |
| Width | 6" (152.40 mm) |
| Depth | 3.30" (83.82 mm) |
| Weight (Approximate) | 1.27 lb (577 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail,Pharmacy,Convenience Store,Self-checkout |
[/custom-specifications]
