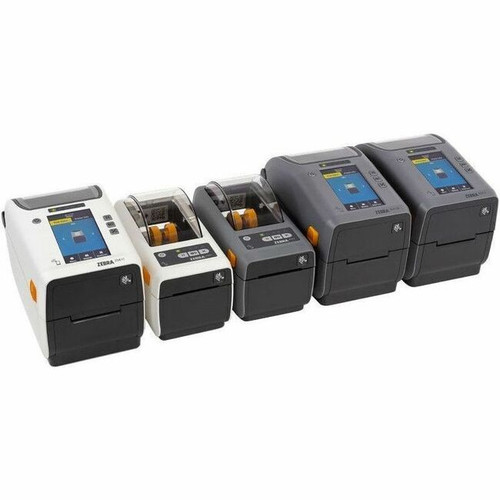

Zebra ZD611 Desktop, Retail, Hospitality, Healthcare, Government Direct Thermal Printer - Monochrome - Label/Receipt Print - Ethernet (ZD6A023-D01Q01EZ)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- ZD611 Direct Thermal Printer
- Empty Ribbon Take-Up Cores
- 2 x 300m Ribbon Core Adapters for Non-Zebra Ribbons
- AC Power Supply
- Power Cord(s)
- USB Cable
- Quick Start Guide
- Regulatory Guide
Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 5.98 in/s (152 mm/s)
Maximum Print Resolution (dpi): 300
Maximum Print Width: 2.13" (54 mm)
Barcode Symbology Supported: Code 11,Code 39,Code 128,ISBT-128,Code 93,UPC-A,UPC-E,EAN-13,EAN-8,UPC,EAN With 2 and 5 Digit Extension,POSTNET,Plessey,Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Codabar,Planet Code,Codablock,PDF417,Code 49,Data Matrix,Maxi Code,QR Code,Micro PDF,AZTEC,1D,2D
Connectivity Technology: Wired & Wireless
Fonts Included: 16 Resident expandable ZPL II bitmap fonts,two resident scalable ZPL fonts,five resident expandable EPL2 fonts
Real Time Clock: Yes
Application/Usage: Desktop,Retail,Hospitality,Healthcare,Government
Features: LCD Display,Dual Wall Frame
Standard Memory: 256 MB
Flash Memory: 512 MB
USB Host: Yes
USB: Yes
USB Standard: USB 2.0
Ethernet: Yes
Ethernet Technology: Ethernet
Bluetooth: Yes
Bluetooth Version: 5.3
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac,IEEE 802.11ax
Near Field Communication (NFC): Yes
Display Screen: Yes
Screen Size: 4.3"
Display Screen Type: LCD
Touchscreen: Yes
Media Type: Label,Receipt,Fanfold,Roll Fed,Die-cut Label,Continuous Label,Tag Stock,Continuous Receipt,Wristband
Media Sensor: Full Width Sensor,Moveable Reflective/Black Mark Sensor,Multi-position Transmissive/Gap Sensor
Media Thickness: 7.5 mil (0.19 mm)
Maximum Roll Diameter: 1.3" (34 mm)
Maximum Label Width: 2.36" (60 mm)
Maximum Label Length: 39.02" (991 mm)
Language Emulation: EZPL,ZPL II,EPL2,XML,ZPL,ZBI,EPL
Operating System Supported:
Link-OS
Power Source: AC Supply
Operating Temperature: 40°F (4.4°C) - 105°F (40.6°C)
Operating Relative Humidity: 10% - 90%
Storage Temperature: -40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity: 5% - 95%
Height: 5.94" (151 mm)
Width: 4.53" (115 mm)
Depth: 8.66" (220 mm)
Weight (Approximate): 2.36 lb (1070.48 g)
Package Contents:
Cables Included: USB
Platform Supported: PC,iOS,Android
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 2 Year
- Direct Thermal Printer provides you with all the features that you need to print quickly and easily
- The printer is capable of printing sharp and detailed monochrome documents quickly
- Capable of printing labels and receipts virtually from anywhere and everywhere
- Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
- Bye bye Wires, Hello Wi-Fi! Cut down the potential hazards of tripping and electrical fires by reducing the number of long cables. Print wirelessly even from your mobile devices.
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | ZD6A023-D01Q01EZ |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | ZD600 |
| Product Model | ZD611 |
| Product Name | ZD611 Direct Thermal Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Label/Receipt Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 5.98 in/s (152 mm/s) |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Width | 2.13" (54 mm) |
| Barcode Symbology Supported | Code 11,Code 39,Code 128,ISBT-128,Code 93,UPC-A,UPC-E,EAN-13,EAN-8,UPC,EAN With 2 and 5 Digit Extension,POSTNET,Plessey,Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Codabar,Planet Code,Codablock,PDF417,Code 49,Data Matrix,Maxi Code,QR Code,Micro PDF,AZTEC,1D,2D |
| Connectivity Technology | Wired & Wireless |
| Fonts Included | 16 Resident expandable ZPL II bitmap fonts,two resident scalable ZPL fonts,five resident expandable EPL2 fonts |
| Real Time Clock | Yes |
| Application/Usage | Desktop,Retail,Hospitality,Healthcare,Government |
| Features | LCD Display,Dual Wall Frame |
| Memory | |
| Standard Memory | 256 MB |
| Flash Memory | 512 MB |
| Interfaces/Ports | |
| USB Host | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
| Bluetooth | Yes |
| Bluetooth Version | 5.3 |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac,IEEE 802.11ax |
| Near Field Communication (NFC) | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Screen Size | 4.3" |
| Display Screen Type | LCD |
| Touchscreen | Yes |
| Media Types & Handling | |
| Media Type | Label,Receipt,Fanfold,Roll Fed,Die-cut Label,Continuous Label,Tag Stock,Continuous Receipt,Wristband |
| Media Sensor | Full Width Sensor,Moveable Reflective/Black Mark Sensor,Multi-position Transmissive/Gap Sensor |
| Media Thickness | 7.5 mil (0.19 mm) |
| Maximum Roll Diameter | 1.3" (34 mm) |
| Maximum Label Width | 2.36" (60 mm) |
| Maximum Label Length | 39.02" (991 mm) |
| Fonts & Emulation | |
| Language Emulation | EZPL,ZPL II,EPL2,XML,ZPL,ZBI,EPL |
| Software | |
| Operating System Supported | Link-OS |
| Power Description | |
| Power Source | AC Supply |
| Environmental Conditions | |
| Operating Temperature | 40°F (4.4°C) - 105°F (40.6°C) |
| Operating Relative Humidity | 10% - 90% |
| Storage Temperature | -40°F (-40°C) - 140°F (60°C) |
| Storage Relative Humidity | 5% - 95% |
| Physical Characteristics | |
| Height | 5.94" (151 mm) |
| Width | 4.53" (115 mm) |
| Depth | 8.66" (220 mm) |
| Weight (Approximate) | 2.36 lb (1070.48 g) |
| Miscellaneous | |
| Package Contents |
|
| Cables Included | USB |
| Platform Supported | PC,iOS,Android |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf2
Additional-pdf1
[/custom-user-manual]
