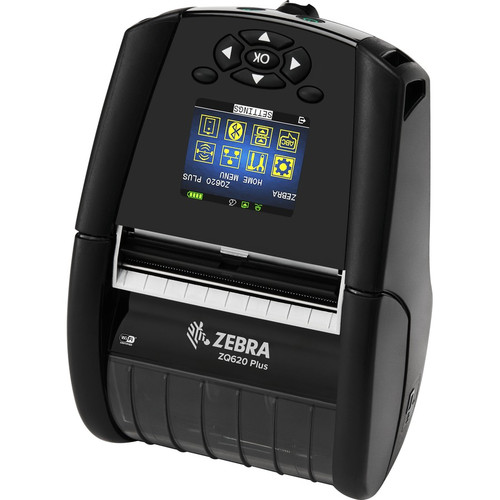

Zebra ZQ62-AUFA0B4-00 ZQ620 Plus Direct Thermal Printer - Monochrome - 115 mm/s - Label/Receipt Print - Bluetooth - NFC - IP54
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ZQ620 Plus supports a wide range of barcode symbologies including Code 128, QR Code, Data Matrix, PDF417, and UPC/EAN, alongside character sets like Universal Font Scaling Technology (UFST) and Agfa Monotype. Language emulation covers CPCL, EPL, ZPL, and ZBI 2.0 for seamless integration with existing print systems.
Media handling is flexible, accommodating labels up to 3.13" wide and 32" long, with sensors for gap and black mark detection. The printer operates on Zebra's Link-OS platform, enabling remote management and connectivity across iOS, Android, and PC devices.
This section brings together practical product details such as Recommended Use, Print Color Capability, Maximum Mono Print Speed, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The ZQ620 Plus combines industrial durability with enterprise-grade connectivity, offering a reliable printing solution that adapts to various workflows. Its 256 MB memory ensures smooth handling of complex label designs, while the 3250 mAh battery supports extended mobile use without frequent recharging.
Rugged Mobility
IP54 rating, dust and water resistance, and included belt clip/shoulder strap make this printer ideal for harsh or mobile environments.
- Withstands -4°F to 122°F temperatures
- 10-90% operating humidity range
- Compact 3.03" H x 4.64" W x 6.84" D footprint
Versatile Connectivity
Bluetooth and NFC enable wireless printing from mobile devices, while optional USB, serial, Ethernet, and wireless LAN provide flexible deployment options.
- Print directly from iOS/Android devices
- Supports legacy RS-232 connections
- Ethernet for network integration
Deployment / Use Cases
This printer excels in field service, inventory management, and mobile retail applications where durability and wireless connectivity are critical. Its ability to print up to 32" long labels makes it suitable for extended shipping labels or compliance tags, while the compact size fits easily in vehicles or on workbenches.
Retail & Hospitality
Print receipts, price tags, and kitchen tickets directly from POS systems or mobile devices in stores, restaurants, or hotels.
- Bluetooth pairing with tablets for mobile checkout
- NFC for quick tap-to-print
- Supports receipt and label media
Logistics & Warehousing
Generate shipping labels, bin labels, and packing slips on the warehouse floor or in delivery vehicles.
- IP54 protection against dust and moisture
- Belt clip for hands-free portability
- Wide barcode symbology support
Physical Profile
The ZQ620 Plus measures 3.03" H x 4.64" W x 6.84" D (76.96 mm x 117.86 mm x 173.74 mm) and weighs approximately 730 g, making it one of the most portable industrial-grade thermal printers available. Its design includes a built-in display screen for status monitoring and configuration, along with a 2.6" maximum roll diameter for convenient media loading.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.03" (76.96 mm), 2.83", 6.84" (173.74 mm), 730 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.83"
- Depth
- 6.84" (173.74 mm)
- Height
- 3.03" (76.96 mm)
- Weight
- 730 g
- Length
- 32.01" (813 mm)
Highlights
- Direct thermal monochrome printing at 115 mm/s speed
- IP54 rated for dust and water resistance in tough environments
- Bluetooth and NFC wireless connectivity for mobile printing
- Supports iOS, Android, and PC platforms via Link-OS
- Compact and portable with belt clip and shoulder strap included
- Handles labels up to 3.13" wide and 32" long
- Wide barcode support including QR Code, Data Matrix, and UPC/EAN
- 256 MB memory for complex label designs
- 3250 mAh battery for extended mobile operation
- Optional wired connectivity via USB, serial, and Ethernet
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | ZQ62-AUFA0B4-00 |
| Brand Name | Zebra |
| Product Series | ZQ600 |
| Product Model | ZQ620 Plus |
| Product Name | ZQ620 Plus Direct Thermal Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Label/Receipt Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 115 mm/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Length | 32.01" (813 mm) |
| Maximum Print Width | 2.83" |
| Barcode Symbology Supported | Code 39,Code 93,UCC/EAN 128,Code 128,Codabar (NW-7),Interleaved 2 of 5,UPC-A,UPC E with 2 and 5 add on,EAN-8,EAN-13,PDF417,Micro PDF-417,Maxi Code,QR Code,GS1 DataBar,AZTEC,MSI PLESSEY,FIM,POSTNET,Data Matrix,TLC 39,2 and 5 Digits Add-on |
| Character Sets | Universal Font Scaling Technology (UFST),Agfa Monotype |
| Application/Usage | Desktop,Industrial,Mobile |
| Features | Belt Clip,Shoulder Strap,Dust Resistant,Water Resistant |
| Mobile Device Printing | Yes |
| Memory | |
| Standard Memory | 256 MB |
| Network & Communication | |
| Bluetooth | Yes |
| Near Field Communication (NFC) | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Media Types & Handling | |
| Media Type | Gap,Black Mark,Receipt,Label,Die-cut Label,Tag,Linered Media,Black Bar |
| Media Sensor | Black Mark Sensor,Gap Sensor |
| Media Thickness | 6.5 mil |
| Maximum Roll Diameter | 2.6" |
| Maximum Label Width | 3.13" (79.38 mm) |
| Maximum Label Length | 32" (812.80 mm) |
| Fonts & Emulation | |
| Language Emulation | CPCL,EPL,ZPL,ZBI 2.0 |
| Software | |
| Operating System Supported | Link-OS |
| Reliability | |
| Ingress Protection (IP) Rating | IP54 |
| Power Description | |
| Power Source | Battery |
| Battery Information | |
| Battery Capacity | 3250 mAh |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) - 122°F (50°C) |
| Operating Relative Humidity | 10% - 90% |
| Storage Temperature | -13°F (-25°C) - 149°F (65°C) |
| Storage Relative Humidity | 10% - 90% |
| Physical Characteristics | |
| Height | 3.03" (76.96 mm) |
| Width | 4.64" (117.86 mm) |
| Depth | 6.84" (173.74 mm) |
| Weight (Approximate) | 730 g |
| Miscellaneous | |
| Optional Connectivity | Wireless LAN,Serial (RS-232),USB,Ethernet |
| Platform Supported | iOS,Android,PC |
| Certifications & Standards | Emissions: FCC Part 15 Subpart B EN55022 Class-B EN60950 EN55024 VCCI class B Susceptibility: EN55024 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 Safety: CE TUV CSA |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What type of printing technology does the ZQ620 Plus use?
The ZQ620 Plus uses direct thermal printing technology, which creates monochrome images by applying heat to specially coated thermal paper or labels. This technology requires no ink, toner, or ribbons, reducing maintenance and consumable costs while providing reliable output for labels, receipts, and tags.
What wireless connectivity options are available?
This printer includes built-in Bluetooth and Near Field Communication (NFC) for wireless printing from mobile devices. Bluetooth allows pairing with iOS and Android smartphones or tablets, while NFC enables quick tap-to-print functionality. Optional wireless LAN is also available for network-based printing deployments.
What is the IP54 rating and why does it matter?
IP54 indicates the printer is protected against limited dust ingress (level 5) and water splashes from any direction (level 4). This makes the ZQ620 Plus suitable for use in environments where dust, moisture, or occasional spills may occur, such as warehouses, retail floors, or outdoor applications, without compromising reliability.
What media sizes can this printer handle?
The ZQ620 Plus supports labels up to 3.13" (79.38 mm) wide and 32" (812.80 mm) long, with a maximum print width of 2.83". It accommodates media rolls up to 2.6" in diameter and various media types including gap, black mark, receipt, die-cut label, tag, linered media, and black bar media.
Which operating systems and platforms are supported?
This printer is compatible with iOS, Android, and PC platforms through Zebra's Link-OS operating system. Link-OS enables remote management, connectivity tools, and integration with mobile and desktop applications, ensuring seamless operation across different devices in mixed IT environments.
What is included in the standard warranty?
Zebra provides a 1-year limited warranty for the ZQ620 Plus, covering defects in materials and workmanship under normal use. The printer also carries certifications including FCC, CE, TUV, and CSA for emissions, safety, and susceptibility compliance in various regional markets.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
