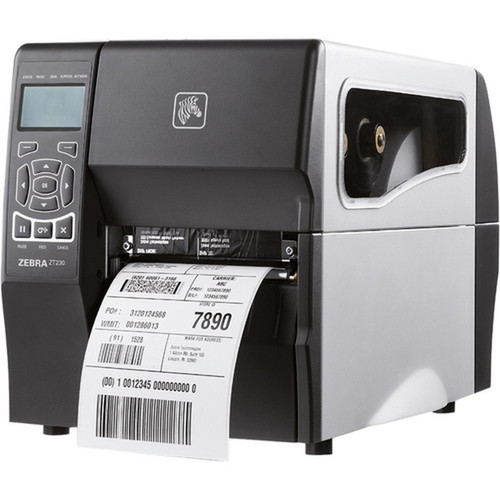

Zebra ZT23043-D01200FZ ZT230 Industrial Direct Thermal Printer - Monochrome Label Print - 4. 09" Print Width - Fast Ethernet - USB - Serial
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ZT230 employs direct thermal printing technology, eliminating the need for ribbons or toner by applying heat directly to thermally sensitive label media. This results in a streamlined maintenance profile and consistent monochrome output. The printer's maximum print width of 4.09" and resolution of 300 dpi ensure precise rendering of fine text, graphics, and barcodes, including high-density linear and 2D symbologies such as Data Matrix, QR Code, PDF-417, and Code 128.
Connectivity is handled through Fast Ethernet for network integration, USB for direct computer connections, and a serial port for legacy system compatibility. The printer's 128 MB of RAM and 128 MB of flash memory provide ample storage for fonts, graphics, and label formats, supporting the ZPL (Zebra Programming Language) emulation for flexible label design. Media handling is enhanced with transmissive and reflective sensors, accommodating media thickness up to 10 mil and maximum roll diameters of 8". The bi-color LED and clear bi-fold media side door facilitate operational monitoring and media loading.
Key Product Advantages
The ZT230 combines industrial durability with high-performance labeling capabilities, offering several distinct advantages for business environments. Its direct thermal design reduces consumable costs and simplifies operation, while the fast print speed and high resolution ensure efficient production of professional-quality labels. The printer's extensive barcode symbology support, covering over 30 formats including Aztec Code, Maxi Code, and RSS-14, makes it versatile for various industry standards and compliance requirements.
Robust Media Handling
Handles diverse label types with precise sensor detection and supports large roll diameters for reduced media changes.
- Accepts black mark, continuous, die-cut, and notch media
- Media thickness up to 10 mil
- Maximum roll diameter: 8"
Advanced Connectivity
Integrates easily into existing infrastructure with multiple interface options for flexible deployment.
- Fast Ethernet for network printing
- USB for direct connections
- Serial port for legacy systems
Deployment / Use Cases
The Zebra ZT230 is ideal for industrial and commercial settings requiring reliable, high-volume label printing. Its rugged construction and consistent performance suit environments such as manufacturing floors, warehouses, and distribution centers where labels must withstand handling and environmental exposure. The printer's support for a broad range of barcode symbologies makes it applicable for shipping labels, inventory tags, compliance labeling, and asset tracking across sectors like logistics, retail, and healthcare.
In retail and point-of-sale scenarios, the ZT230 can produce price tags, shelf labels, and receipt-style labels, integrating with POS systems via its Ethernet or USB connections. The printer's compact footprint and front-panel LCD allow for placement in space-constrained areas like back offices or service counters. For businesses implementing automated labeling systems, the ZT230's ZPL emulation and memory capacity support complex, variable-data label formats, enhancing operational efficiency and accuracy in labeling workflows.
Warehouse & Logistics
Produces durable shipping labels, pallet tags, and inventory labels with high-speed throughput and barcode clarity.
- Supports logistics barcodes like UCC, ISBT-128
- Fast print speed reduces labeling bottlenecks
- Industrial build for demanding environments
Retail & Inventory Management
Generates price tags, shelf labels, and asset tags with precise graphics and text for retail compliance.
- Ideal for price marking and inventory control
- Integrates with POS systems
- Compact design fits countertop spaces
Physical Profile
The ZT230 features a compact industrial chassis measuring 10.90" in height, 9.50" in width, and 17" in depth, with an approximate weight of 9.07 kg. This design balances durability with a manageable footprint for installation on workbenches, shelves, or dedicated printer stands. The printer's construction includes a clear bi-fold media side door for easy media loading and a tear-off feature for convenient label removal. The bi-color LED provides at-a-glance status indication, while the overall form factor supports integration into both stationary and mobile labeling setups without requiring excessive space.
- Width
- 4.09"
- Depth
- 17" (431.80 mm)
- Height
- 10.90" (276.86 mm)
- Weight
- 9.07 kg
- Length
- 39" (990.60 mm)
What's in the Box
The printer ships with all essential components for immediate setup and operation.
Package contents include ZT230 Industrial Printer Power Cord with US Plug, ZT230 Industrial Printer. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Direct thermal monochrome printing at 152.40 mm/s speed
- 300 dpi resolution for sharp barcodes and text
- 4.09" maximum print width and 4.50" maximum label width
- Fast Ethernet, USB, and serial connectivity options
- 4.09" LCD display for status and configuration
- 128 MB standard and flash memory for label storage
- Supports over 30 barcode symbologies including QR Code and Data Matrix
- Industrial design for durable, continuous operation
- Media handling for labels up to 39" in length
- Energy Star certified and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | ZT23043-D01200FZ |
| Brand Name | Zebra |
| Product Series | ZT200 |
| Product Model | ZT230 |
| Product Name | ZT230 Industrial Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 152.40 mm/s |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Width | 4.09" |
| Barcode Symbology Supported | Code 11,Code 39,Code 93,Code 128-A,Code 128-B,Code 128-C,UCC Case Codes,ISBT-128,UPC-A,UPC-E,EAN-13,EAN-8,EAN With 2 or 5 Digit Extension,UPC 2 or 5 Digit Extension,Plessey,POSTNET,Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Codabar,Planet Code,Codablock,PDF-417,Code 49,Data Matrix,Maxi Code,QR Code,TLC 39,Micro PDF,RSS-14,Aztec Code,Micro PDF-417 |
| Application/Usage | Industrial |
| Features | Element Energy Equalizer,Bi-color LED,Clear Bi-fold Media Side Door,Tear-off |
| Memory | |
| Standard Memory | 128 MB |
| Flash Memory | 128 MB |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Display & Graphics | |
| Display Screen | Yes |
| Display Screen Type | LCD |
| Media Types & Handling | |
| Media Type | Black Mark,Continuous Label,Die-cut Label,Notch |
| Media Sensor | Transmissive Media Sensor,Reflective Media Sensor |
| Media Thickness | 10 mil |
| Maximum Roll Diameter | 8" |
| Maximum Label Width | 4.50" (114.30 mm) |
| Maximum Label Length | 39" (990.60 mm) |
| Fonts & Emulation | |
| Language Emulation | ZPL |
| Power Description | |
| Power Source | AC Supply |
| Input Voltage | 110 V AC,220 V AC |
| Physical Characteristics | |
| Height | 10.90" (276.86 mm) |
| Width | 9.50" (241.30 mm) |
| Depth | 17" (431.80 mm) |
| Weight (Approximate) | 9.07 kg |
| Miscellaneous | |
| Package Contents | ZT230 Industrial Printer Power Cord with US Plug |
| Platform Supported | PC |
| Certifications & Standards | IEC 60950 EN 55022 Class B EN55024 EN 61000-3-2 EN 61000-3-3 UL CE Marking FCC-B ICES-003 VCCI C-Tick NOM IRAM CCC GOST-R |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What is the maximum print speed of the Zebra ZT230 printer?
The Zebra ZT230 achieves a maximum monochrome print speed of 152.40 mm/s. This speed supports high-volume labeling tasks in industrial and commercial environments, ensuring efficient throughput for applications like shipping labels, inventory tags, and compliance markings without compromising print quality.
What types of connectivity does the ZT230 support?
The ZT230 includes Fast Ethernet for network integration, a USB port for direct computer connections, and a serial port for legacy system compatibility. This combination allows flexible deployment in various IT environments, from modern networked offices to older point-of-sale setups requiring serial communication.
What barcode symbologies can the ZT230 print?
The printer supports an extensive range of barcode symbologies, including Code 128, UPC-A, EAN-13, Data Matrix, QR Code, PDF-417, Aztec Code, and over 20 others. This versatility makes it suitable for diverse industry standards in retail, logistics, healthcare, and manufacturing, ensuring compliance with labeling requirements.
What is the maximum label size the ZT230 can handle?
The ZT230 accommodates labels up to 4.50" (114.30 mm) in width and 39" (990.60 mm) in length, with a maximum print width of 4.09". It supports media thickness up to 10 mil and roll diameters up to 8", allowing for large-format labels and reduced media changes in high-volume operations.
Does the ZT230 have a display screen?
Yes, the ZT230 features a 4.09" LCD display that provides clear visibility of printer status, configuration settings, and error messages. This display enhances operational efficiency by allowing users to monitor print jobs and adjust settings directly from the printer interface without relying solely on computer software.
What is included in the package with the ZT230 printer?
The package includes the ZT230 Industrial Printer and a power cord with a US plug. This ensures the printer is ready for basic setup upon delivery, requiring only connection to a power source and your chosen interface (Ethernet, USB, or serial) to begin printing labels.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
