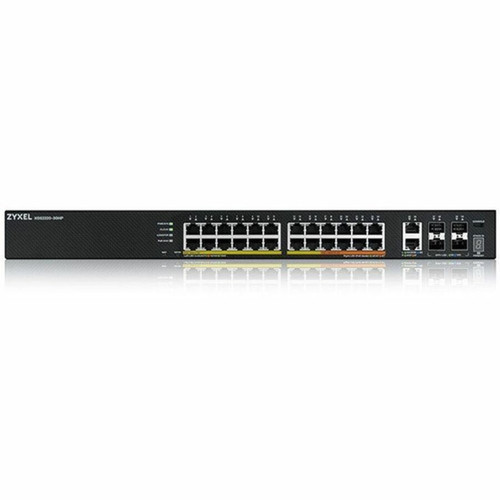

ZyXEL XGS2220-30HP 24-Port Gigabit Layer 3 Managed PoE+ Switch with 400W Budget - 4 SFP+ Uplinks
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The XGS2220-30HP operates as a full Layer 3 managed switch, supporting advanced routing protocols and VLAN configurations for segmented network environments. It delivers Gigabit Ethernet connectivity across all 24 ports with 10 Gigabit uplink capability through SFP+ expansion slots.
Power over Ethernet functionality includes both PoE+ (802.3at) and PoE++ standards, providing up to 400W total power budget for connected devices. The switch supports comprehensive networking standards including IEEE 802.3af/at for PoE, IEEE 802.1Q for VLAN tagging, and IEEE 802.1x for network access control.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Layer 3 switching capability provides routing between VLANs without requiring an external router, reducing network complexity and improving performance for inter-VLAN traffic. Managed features include Quality of Service (QoS), link aggregation, and comprehensive security protocols.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Density PoE Deployment, Scalable Uplink Connectivity.
High-Density PoE Deployment
With 26 PoE-capable ports and 400W total budget, this switch can power multiple devices simultaneously while maintaining network performance.
- 16 PoE+ ports
- 10 PoE++ ports
- 400W total budget
Scalable Uplink Connectivity
Four SFP+ slots enable flexible 10 Gigabit uplink options for connecting to core switches, servers, or storage systems.
- 10GBase-X support
- 10GBase-T support
- Fiber or copper media
Deployment / Use Cases
This switch excels in environments requiring both high port density and substantial PoE power, such as educational institutions deploying wireless access points throughout campuses or healthcare facilities connecting medical devices and communication systems.
The 10 Gigabit uplink capability makes it suitable for aggregation switches in medium-sized networks, providing sufficient bandwidth for traffic from multiple access switches while maintaining Layer 3 routing functionality at the edge.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Enterprise Access Layer
Ideal for connecting end-user devices in office environments where both data connectivity and device power are required.
IP Surveillance Networks
Power multiple IP cameras while providing high-bandwidth video streaming back to network video recorders.
Physical Profile
Designed for standard 19-inch rack mounting, the XGS2220-30HP occupies 1U of rack space with dimensions of 1.73" (44 mm) height, 17.36" (441 mm) width, and 12.99" (330 mm) depth. The compact form factor maximizes port density while maintaining efficient airflow for thermal management. Weighing approximately 9.59 lb (4350 g), it includes integrated mounting hardware for secure installation in network cabinets or server rooms.
- Width
- 17.36" (441 mm)
- Depth
- 12.99" (330 mm)
- Height
- 1.73" (44 mm)
- Weight
- 9.59 lb (4350 g)
What's in the Box
The package includes the complete switch system with all necessary components for immediate deployment.
Highlights
- 24 Gigabit Ethernet ports with PoE/PoE+ capability
- 400W total PoE budget for powering connected devices
- 4 SFP+ slots for 10 Gigabit uplink connectivity
- Layer 3 managed switching with advanced routing features
- Rack-mountable 1U form factor for standard installation
- Supports comprehensive IEEE networking standards
- Dual voltage input (120V/230V AC) for global deployment
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | ZYXEL Communications Corp. |
| Manufacturer Part Number | XGS2220-30HP |
| Brand Name | ZYXEL |
| Product Series | XGS2220 |
| Product Model | XGS2220-30HP |
| Product Name | 24-port GbE L3 Access PoE+ Switch with 6 10G Uplink (400 W) |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+,10 x Gigabit Ethernet PoE++,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 100/1000Base-T,10GBase-X,10GBase-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.11ac,IEEE 802.11ax,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3an,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3x,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1ad,IEEE 802.3af,IEEE 802.3at |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 400 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 477 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.36" (441 mm) |
| Depth | 12.99" (330 mm) |
| Weight (Approximate) | 9.59 lb (4350 g) |
| Miscellaneous | |
| Package Contents | 24-port GbE L3 Access PoE+ Switch with 6 10G Uplink (400 W) Power Cord Rack Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the total PoE power budget of this switch?
The ZyXEL XGS2220-30HP provides a 400W total PoE power budget, which can be distributed across its 26 PoE-capable ports. This substantial power allocation supports simultaneous operation of multiple power-hungry devices such as wireless access points, IP phones, and surveillance cameras without requiring additional power injectors or midspan equipment.
How many SFP+ uplink ports does this switch have?
This switch includes 4 SFP+ expansion slots for high-speed uplink connectivity. These slots support both 10GBase-X (fiber) and 10GBase-T (copper) transceivers, providing flexibility for connecting to core network infrastructure, servers, or storage systems at 10 Gigabit speeds for improved network performance and reduced bottlenecks.
What Layer 3 features does this managed switch support?
As a Layer 3 managed switch, the XGS2220-30HP supports inter-VLAN routing, static routing, and routing information protocols. This enables routing between different network segments without requiring an external router, reducing network complexity and improving performance for traffic moving between VLANs in enterprise environments.
What are the physical dimensions for rack mounting?
The switch measures 1.73" (44 mm) in height, 17.36" (441 mm) in width, and 12.99" (330 mm) in depth, occupying exactly 1U of standard 19-inch rack space. It includes a complete rack mounting kit for secure installation in network cabinets or server rooms, with proper ventilation maintained through designed airflow channels.
What networking standards does this switch comply with?
The switch complies with comprehensive IEEE standards including 802.3af/at for PoE, 802.1Q for VLAN tagging, 802.1x for network access control, 802.3az for energy efficient Ethernet, and 802.3x for flow control. These standards ensure interoperability with other network equipment and provide advanced features for network management and optimization.
What is included in the package contents?
The complete package includes the 24-port Gigabit Layer 3 PoE+ switch unit, a power cord suitable for the regional voltage, and a rack mounting kit with all necessary hardware for installation. The switch is ready for immediate deployment in business network environments requiring both high-density connectivity and PoE power delivery.
