Eaton 9SX3000G 3000VA/2. 7kW Double Conversion Online UPS - Tower - 230V AC Input - 8x C13 + 1x C19 Outlets - 5. 8 Min Full-Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Eaton 9SX series UPS employs double conversion online topology, which continuously conditions incoming power to deliver clean, regulated sine wave output. The 3 kVA/2.70 kW capacity supports medium-duty loads, with a full-load runtime of 5.8 minutes on internal batteries. The input accepts a NEMA L6-20P or IEC C20 plug, while output distribution is handled through eight IEC C13 receptacles and one IEC C19 receptacle, organized into two switched load banks for flexible power management.
Key technical features include a wide input voltage range for compatibility with unstable grids, automatic voltage regulation (AVR) to maintain output stability, and hot-swappable battery design for easy maintenance without downtime. The unit also supports optional network management cards like the NETWORK-M2 for remote monitoring and control via SNMP, web interface, or dedicated software.
Key Product Advantages
The Eaton 9SX3000G offers several advantages for businesses requiring dependable power backup. Its double conversion online design provides complete isolation from input power anomalies, ensuring consistent sine wave output that is safe for sensitive electronics. The zero-transfer-time operation eliminates any interruption during grid failures, which is critical for uninterrupted industrial processes and IT services.
Flexible Power Distribution

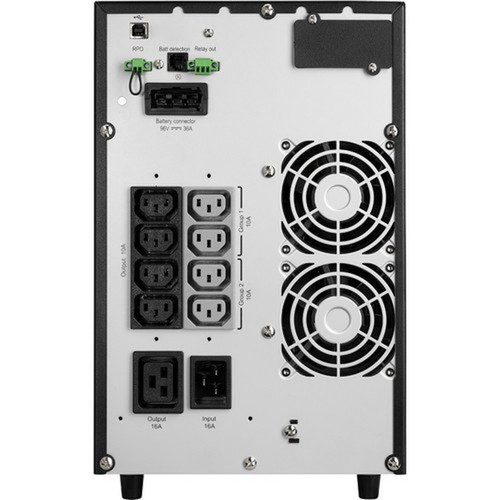

With eight C13 and one C19 outlets in two switched banks, you can prioritize critical loads and schedule non-essential equipment shutdowns during extended outages.
- 8x C13 outlets for servers/peripherals
- 1x C19 outlet for high-power devices
- Switched load banks for load shedding
Scalable Runtime
Optional external battery modules can be added to extend backup time beyond the standard 5.8 minutes, allowing customization for longer runtime requirements without replacing the entire UPS.
- Hot-swappable battery design
- Supports multiple external packs
- Easy field expansion
Deployment / Use Cases
This UPS is engineered for environments where power quality and availability are non-negotiable. Its industrial-grade construction and sine wave output make it suitable for manufacturing floors, automation systems, and process control equipment that demand clean, stable power. The tower form factor allows for easy placement in server rooms, network closets, or alongside industrial machinery without requiring rack space.
Common deployments include protecting server racks in small to medium data centers, supporting CNC machines and PLCs in industrial settings, and ensuring uptime for telecommunications infrastructure. The unit's ability to handle IT systems and industrial equipment simultaneously makes it a versatile choice for mixed-use facilities. Integration with network management cards enables centralized monitoring across multiple sites, ideal for distributed enterprises.
Industrial Automation
Provides conditioned sine wave power to PLCs, HMIs, and sensors, preventing data loss and equipment damage from voltage sags, surges, or outages.
- Wide input voltage range
- Sine wave safe for motor drives
- Robust tower enclosure
IT Server Protection
Safeguards servers, storage, and networking gear from power disturbances, with sufficient outlets for a typical rack and runtime for graceful shutdowns.
- Zero transfer time
- Multiple C13 outlets
- Network management ready
Physical Profile
The Eaton 9SX3000G features a tower design with a durable steel enclosure, measuring approximately 77.20 pounds (35.02 kg). This form factor provides stability and easy placement on floors or shelves without rack mounting hardware. The front panel includes an intuitive LCD display for at-a-glance status, while ventilation ensures efficient cooling during continuous operation. The unit's footprint is optimized for space-constrained environments, making it suitable for tight server rooms or industrial control panels.
- Weight
- 77.20 lb (35017.33 g)
What's in the Box
The package includes all essential components for immediate deployment. You receive the UPS unit itself along with necessary cables and documentation to get started quickly.
Highlights
- 3000VA/2.7kW double conversion online UPS with pure sine wave output
- Zero transfer time between online and battery modes for uninterrupted power
- Input: NEMA L6-20P or IEC C20; Output: 8x C13 + 1x C19 receptacles in switched banks
- 5.8-minute full-load runtime on internal batteries, expandable with external modules
- Front-panel LCD displays status, load, voltage, and battery health in real time
- Optional NETWORK-M2 card enables remote management via SNMP, web, or software
- Wide input voltage range (190-276V AC) accommodates unstable power grids
- Tower form factor for easy floor placement, no rack required
- Hot-swappable battery design for maintenance without downtime
- 3-year limited warranty backed by Eaton's reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9SX3000G |
| Brand Name | Eaton |
| Product Name | 1000VA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C20,NEMA L6-20P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 8 x IEC 60320 C13,1 x IEC 60320 C19 |
| Application/Usage | Industrial Equipment,Industrial Automation System,IT System |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 230 V AC |
| Input Voltage Range | 190 V AC - 276 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Waveform Type | Sine Wave |
| Battery Information | |
| Backup/Run Time (Full Load) | 5.80 Minute |
| Physical Characteristics | |
| Form Factor | Tower |
| Weight (Approximate) | 77.20 lb (35017.33 g) |
| Miscellaneous | |
| Package Contents | 1000VA Tower UPS Manual Quick Start Guide Safety Guide Serial And USB Cables |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 9SX3000G has a load capacity of 3000VA (3 kVA) or 2700 watts (2.70 kW). This rating indicates the maximum power it can support, making it suitable for medium-duty applications like server racks, industrial automation systems, or a combination of IT and equipment loads.
How long does the UPS run on battery at full load?
At full load (3000VA/2700W), the internal batteries provide approximately 5.8 minutes of runtime. This allows sufficient time for connected equipment to perform graceful shutdowns or for backup generators to start. Runtime can be extended by adding optional external battery modules.
What types of outlets does this UPS have?
The UPS includes eight IEC C13 outlets and one IEC C19 outlet. The C13 outlets are typical for servers, monitors, and peripherals, while the C19 outlet supports higher-power devices like some servers or network switches. These are organized into two switched load banks for managed power distribution.
Can I monitor and control this UPS remotely?
Yes, with the optional NETWORK-M2 network card, you can monitor and control the UPS remotely via SNMP, web interface, or dedicated software like Eaton's Intelligent Power Manager. This enables real-time status alerts, configuration changes, and shutdown scheduling from anywhere on the network.
What input voltage does the UPS require?
The UPS is designed for a nominal input voltage of 230V AC, with an acceptable range from 190V to 276V AC. This wide range allows it to operate reliably in areas with unstable grid power or voltage fluctuations, automatically regulating output to maintain stable conditions for connected equipment.
Is this UPS a tower or rack-mountable unit?
This is a tower-form-factor UPS, meaning it is designed for standalone placement on a floor, shelf, or tabletop. It does not require rack mounting, making it ideal for environments where rack space is limited or for deployment alongside industrial equipment. The sturdy enclosure ensures stability in various settings.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
