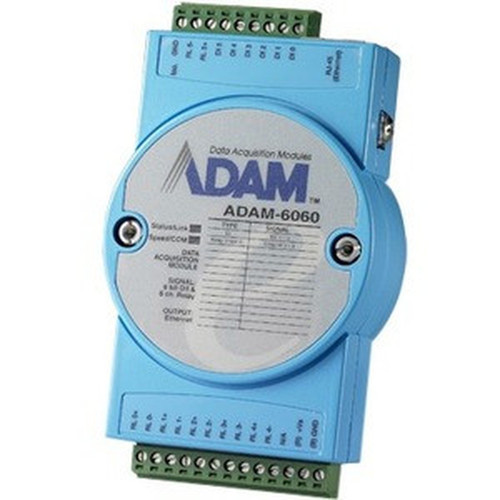

Advantech ADAM-6060-D 6-Channel Digital Input & Relay Modbus TCP Module - Fast Ethernet 10/100Base-T - DC Power - Rail/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ADAM-6060-D operates as a Modbus TCP slave device, allowing seamless communication with PLCs, SCADA systems, and other industrial controllers over standard Ethernet networks. It features a single RJ-45 port for network connectivity, supporting twisted pair media for durable signal transmission.
DC power input ensures compatibility with industrial power supplies, while the rail-mountable and wall-mountable form factor provides flexible installation options. The module's small footprint (4.72" x 2.76" x 1.18") allows for high-density deployments in control panels.
Key Product Advantages
The ADAM-6060-D combines digital I/O functionality with Ethernet connectivity, reducing wiring complexity and enabling remote monitoring and control. Its Modbus TCP protocol support ensures interoperability with a wide range of industrial automation systems.
Reliable Industrial Connectivity
Fast Ethernet 10/100Base-T ensures stable data communication in industrial environments, while twisted pair media provides noise immunity and durability.
- Supports long cable runs
- Minimizes signal degradation
- Compatible with standard network infrastructure
Flexible Installation
Rail-mountable and wall-mountable design allows for easy integration into existing control cabinets and machinery, saving space and simplifying maintenance.
- DIN-rail compatible
- Compact footprint
- Tool-less mounting options
Deployment / Use Cases
The ADAM-6060-D is ideal for applications requiring remote monitoring and control of discrete devices over Ethernet networks. It serves as a cost-effective solution for integrating legacy digital I/O into modern industrial automation systems.
Common use cases include machine automation, process control, building management, and environmental monitoring. Its Modbus TCP compatibility makes it suitable for integration with PLCs, HMIs, and SCADA software.
Industrial Machine Control
Monitor sensor inputs and control actuators on production equipment, enabling real-time status updates and remote operation.
Building Automation
Integrate lighting, security, and HVAC controls into a centralized management system using standard Ethernet infrastructure.
Physical Profile
The module features a rugged, compact enclosure designed for industrial environments. Its dimensions of 4.72" H x 2.76" W x 1.18" D (120 x 70 x 30 mm) allow for high-density installations in control panels. The rail-mountable and wall-mountable options provide flexibility for various mounting scenarios.
- Width
- 2.76" (70 mm)
- Depth
- 1.18" (30 mm)
- Height
- 4.72" (120 mm)
Highlights
- 6 digital input channels for sensor monitoring
- 6 relay output channels for actuator control
- Modbus TCP protocol for industrial network integration
- Fast Ethernet 10/100Base-T with up to 100 Mbps data rate
- Single RJ-45 port for twisted pair connectivity
- DC power input for industrial compatibility
- Rail-mountable and wall-mountable form factor
- Compact dimensions for space-constrained installations
- RoHS compliant for environmental safety
- Made in Taiwan with industrial-grade components
Specifications
| Specifications | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | ADAM-6060-D |
| Brand Name | Advantech |
| Product Series | ADAM-6000 |
| Product Model | ADAM-6060 |
| Product Name | 6-ch Digital Input and 6-ch Relay Modbus TCP Module |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T |
| Power Description | |
| Power Source | DC |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Wall Mountable |
| Height | 4.72" (120 mm) |
| Width | 2.76" (70 mm) |
| Depth | 1.18" (30 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
FAQ
What is the primary function of the ADAM-6060-D module?
The ADAM-6060-D is a Modbus TCP module that provides six digital input channels and six relay output channels. It enables integration of discrete sensors and actuators into Ethernet-based industrial networks, allowing remote monitoring and control of digital devices.
What type of network connectivity does this module support?
The module features a single RJ-45 port supporting Fast Ethernet 10/100Base-T over twisted pair cabling. This provides data transfer rates up to 100 Mbps and compatibility with standard Ethernet infrastructure commonly used in industrial environments.
How is the ADAM-6060-D powered?
The module requires DC power input, making it compatible with industrial power supplies typically found in control cabinets and automation systems. This power method ensures reliable operation in environments where AC power may not be readily available or stable.
What mounting options are available for installation?
The ADAM-6060-D supports both rail-mountable and wall-mountable installations. The rail-mountable design allows for easy mounting on standard DIN rails in control panels, while wall mounting provides flexibility for standalone installations in various industrial settings.
