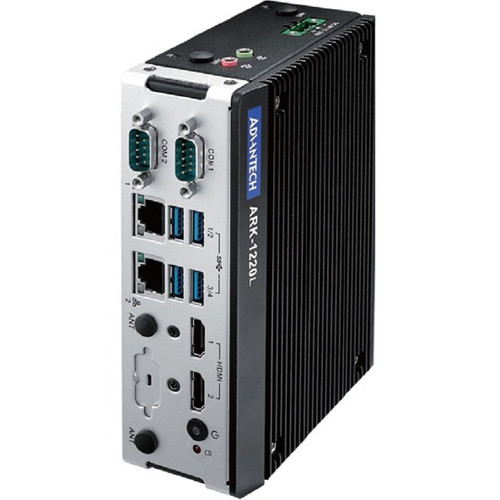

Advantech ARK-1220L-S6A1E Box PC - Intel Atom x5-E3940 Quad-Core 1. 6GHz - DDR3L SDRAM - Intel HD Graphics 500 - 4x USB 3. 0 - DIN-Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Box PC features the Intel Atom x5-E3940 system-on-chip with four processing cores operating at 1.60 GHz base frequency and capable of turbo boosting to 1.80 GHz. The integrated Intel HD Graphics 500 controller shares DDR3L SDRAM system memory for display processing, supporting dual HDMI outputs at resolutions up to 4K.
Connectivity is comprehensive with four USB 3.0 ports for high-speed peripheral connections and two Intel i210 Gigabit Ethernet controllers for reliable network communication. Expansion capabilities include a full-size mPCIe slot with SIM card holder for cellular connectivity and an M.2 2230 slot for WiFi module installation.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Model, Memory Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ARK-1220L-S6A1E excels in industrial applications where space constraints, environmental challenges, and reliable connectivity are paramount concerns. Its compact Box PC design maximizes functionality while minimizing footprint.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Rugged Industrial Design, Comprehensive Connectivity.
Rugged Industrial Design
Built for challenging environments with extended temperature operation from -30°C to 70°C and wide-range 12V-28V DC power input compatibility.
- DIN-rail mounting bracket included
- Compact 2.11" x 4.49" x 6.22" dimensions
- 2.65 lb lightweight construction
Comprehensive Connectivity
Front-accessible ports simplify installation and maintenance while providing essential interfaces for industrial peripherals and displays.
- Dual HDMI for multi-monitor setups
- Four USB 3.0 ports for high-speed devices
- Dual Gigabit Ethernet for network redundancy
Deployment / Use Cases
This Advantech Box PC is ideally suited for industrial automation, digital signage, kiosk systems, and edge computing applications where reliable performance in constrained spaces is essential. The DIN-rail mounting capability makes it perfect for control cabinet installations.
In factory automation environments, the system can serve as a machine controller or data acquisition unit, leveraging its extended temperature range and robust construction. For digital signage deployments, the dual HDMI outputs support multiple displays from a single compact unit, while the front-accessible ports simplify maintenance in public installations.
Industrial Control Systems
Monitor and control manufacturing equipment with reliable computing power in harsh industrial environments.
Edge Computing Nodes
Process data locally at the network edge with compact form factor and comprehensive connectivity options.
Physical Profile
Measuring just 2.11" wide x 4.49" deep x 6.22" high (53.50 mm x 114 mm x 158 mm), this Box PC occupies minimal space while delivering full computing functionality. The 2.65 lb (1200 g) weight ensures easy installation and mounting flexibility.
The form factor is specifically designed for industrial environments with included DIN-rail bracket for secure mounting in control panels and equipment racks. The compact dimensions allow installation in space-constrained locations where traditional desktop computers would not fit.
- Width
- 2.11" (53.50 mm)
- Depth
- 4.49" (114 mm)
- Height
- 6.22" (158 mm)
- Weight
- 2.65 lb (1200 g)
What's in the Box
The package includes all necessary components for immediate deployment in industrial settings.
Highlights
- Intel Atom x5-E3940 quad-core processor with 1.80 GHz turbo boost
- DIN-rail mountable form factor for industrial control panel installation
- Dual Intel i210 Gigabit Ethernet ports for reliable network connectivity
- Four USB 3.0 ports on front bezel for easy peripheral access
- Dual HDMI outputs supporting 4K resolution displays
- Extended operating temperature range from -30°C to 70°C
- Wide-range 12V-28V DC power input compatibility
- Advantech WISE-PaaS platform support for IoT applications
- Compact dimensions: 2.11" x 4.49" x 6.22" (53.50 mm x 114 mm x 158 mm)
- Includes mPCIe and M.2 expansion slots for wireless connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | ARK-1220L-S6A1E |
| Brand Name | Advantech |
| Product Series | ARK-1000 |
| Product Model | ARK-1220L |
| Product Name | ARK-1220L Desktop Computer |
| Packaged Quantity | 1 |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Atom |
| Processor Model | x5-E3940 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 1.60 GHz |
| Maximum Turbo Speed | 1.80 GHz |
| Memory | |
| Memory Technology | DDR3L SDRAM |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics 500 |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | i210 |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Box PC |
| Height | 6.22" (158 mm) |
| Width | 2.11" (53.50 mm) |
| Depth | 4.49" (114 mm) |
| Weight (Approximate) | 2.65 lb (1200 g) |
| Miscellaneous | |
| Package Contents | ARK-1220L Desktop Computer 1 x User Manual (Simplified Chinese) Wrench for Top Cover 1 x DIN-rail Bracket 1 x 3-pin Terminal Block |
| Country of Origin | China |
User Manual
FAQ
What processor does the Advantech ARK-1220L-S6A1E use?
This Box PC features the Intel Atom x5-E3940 quad-core system-on-chip with a base clock speed of 1.60 GHz and maximum turbo frequency of 1.80 GHz. This processor provides efficient computing power for industrial applications while maintaining low power consumption and thermal output.
How many display outputs does this Box PC support?
The ARK-1220L-S6A1E supports dual display outputs through its two HDMI ports. These interfaces can drive displays at resolutions up to 4K, making the system suitable for digital signage, monitoring stations, and other applications requiring multiple high-resolution screens.
What expansion options are available for adding wireless connectivity?
The system includes two expansion slots for wireless modules: a full-size mPCIe slot with SIM card holder for cellular connectivity and an M.2 2230 slot for WiFi module installation. This flexibility allows customization for various wireless communication requirements in industrial deployments.
What is the operating temperature range for this industrial Box PC?
The Advantech ARK-1220L-S6A1E is designed for extended temperature operation from -30°C to 70°C. This wide temperature tolerance makes it suitable for deployment in harsh industrial environments, outdoor installations, and other challenging conditions where standard computers would fail.
How is this Box PC mounted in industrial settings?
The system includes a DIN-rail mounting bracket as standard equipment, allowing secure installation on standard DIN rails commonly found in control panels and industrial cabinets. The compact form factor and lightweight design (2.65 lb) further simplify installation in space-constrained locations.
What storage options does this system support?
The ARK-1220L-S6A1E supports two storage interfaces: one 2.5" SATA III SSD bay and one full-size mSATA slot. This dual storage capability allows for operating system installation on one drive and data storage on another, or configuration for RAID applications requiring redundant storage.
