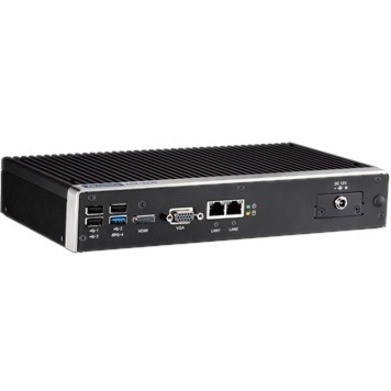

Advantech ARK-2230L-U0A2E ARK-2000 Box PC - Intel Celeron J1900 Quad-Core 2. 0 GHz - DDR3L SDRAM - VGA/HDMI - Gigabit Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of this Box PC is the Intel Celeron J1900 system-on-chip, a quad-core processor operating at 2.0 GHz with integrated Intel graphics that support dual independent display outputs through VGA and HDMI interfaces. The system utilizes DDR3L SDRAM technology for memory operations, providing efficient power consumption while maintaining adequate performance for embedded applications.
Connectivity is handled by an Intel i210 Gigabit Ethernet controller delivering reliable network performance, complemented by five USB ports (four USB 2.0 and one USB 3.0) for peripheral connections. The 12V lockable DC jack power input accepts 9-36V power modules, offering flexibility for various power supply scenarios in industrial deployments.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Model, Memory Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This Box PC distinguishes itself through industrial-grade durability and flexible expansion capabilities that adapt to diverse application requirements. The fanless thermal design not only reduces acoustic noise but also minimizes points of failure, making the system suitable for 24/7 operation in environments where maintenance access is limited.
Expansion Flexibility
Supports Mini PCIe expansion with SIM holder for communication modules, mSATA storage, and 2.5" SATA devices. Compatible with Advantech iDoor, EMIO miniPCIe, and MIOe modules for customized functionality.
- Mini PCIe expansion slot
- SIM holder for cellular modules
- mSATA and 2.5" SATA support
Robust Construction
Fanless design eliminates moving parts for increased reliability in dusty environments. Extended operating temperature range from -20 to 60°C ensures performance stability in challenging conditions.
- No cooling fans required
- Wide temperature tolerance
- Compact metal enclosure
Deployment / Use Cases
The ARK-2230L-U0A2E serves as a versatile computing platform for embedded applications requiring reliable performance in constrained spaces. Its combination of compact dimensions, flexible expansion options, and industrial-grade construction positions it well for deployment scenarios where traditional desktop computers would be impractical or unreliable.
Common applications include thin client implementations, edge computing nodes, retail point-of-sale systems, and transportation information displays. The wall-mount capability further enhances installation flexibility in vertical market applications where desktop real estate is limited or where equipment needs to be secured out of the way.
Digital Signage & Kiosks
The compact form factor and dual display outputs make this Box PC ideal for digital signage installations, information kiosks, and interactive displays where space is limited but reliable performance is essential.
Industrial Automation
With its extended temperature range and fanless design, the system excels in factory automation, machine control, and process monitoring applications where environmental conditions challenge conventional computing equipment.
Physical Profile
Measuring just 1.73" (44 mm) in height, 10.24" (260 mm) in width, and 5.52" (140.20 mm) in depth, this Box PC occupies minimal space while delivering full computing functionality. The compact enclosure weighs approximately 5.07 lb (2300 g), facilitating easy mounting in various orientations and locations.
The included China RoHS wall mounting kit enables secure installation on vertical surfaces, making the system suitable for behind-display mounting in digital signage applications or equipment rack integration in industrial control environments. The low-profile design allows for discreet placement in space-constrained installations where traditional tower or desktop form factors would be impractical.
- Width
- 10.24" (260 mm)
- Depth
- 5.52" (140.20 mm)
- Height
- 1.73" (44 mm)
- Weight
- 5.07 lb (2300 g)
What's in the Box
The package includes everything needed for immediate deployment of the Box PC system.
Highlights
- Intel Celeron J1900 quad-core 2.0 GHz processor
- Fanless design for silent, reliable operation
- VGA and HDMI dual independent display outputs
- Gigabit Ethernet with Intel i210 controller
- Extended operating temperature range (-20 to 60°C)
- Mini PCIe expansion with SIM holder for communication
- Supports mSATA and 2.5" SATA storage devices
- 12V lockable DC jack with 9-36V power compatibility
- Compact Box PC form factor (1.73" H x 10.24" W x 5.52" D)
- Compatible with Advantech iDoor, EMIO, and MIOe modules
Specifications
| Specifications | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | ARK-2230L-U0A2E |
| Brand Name | Advantech |
| Product Series | ARK-2000 |
| Product Model | ARK-2230L |
| Product Name | ARK-2230L Desktop Computer |
| Packaged Quantity | 1 |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Celeron |
| Processor Model | J1900 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2 GHz |
| Memory | |
| Memory Technology | DDR3L SDRAM |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | i210 |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 1 |
| VGA | Yes |
| Physical Characteristics | |
| Form Factor | Box PC |
| Height | 1.73" (44 mm) |
| Width | 10.24" (260 mm) |
| Depth | 5.52" (140.20 mm) |
| Weight (Approximate) | 5.07 lb (2300 g) |
| Miscellaneous | |
| Package Contents | ARK-2230L Desktop Computer 1 x User Manual (Simplified Chinese) 1 x China RoHS Wall Mounting Kit |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processor does the Advantech ARK-2230L-U0A2E use?
This Box PC features an Intel Celeron J1900 quad-core processor operating at 2.0 GHz. This system-on-chip design integrates four processing cores with Intel graphics capabilities, providing balanced performance for embedded computing applications while maintaining efficient power consumption in fanless operation.
What display outputs are available on this Box PC?
The system provides both VGA and HDMI display outputs that support dual independent display configurations. This allows simultaneous connection to two monitors, making the Box PC suitable for digital signage, control room displays, or any application requiring extended desktop workspace from a compact computing platform.
What expansion options does this Box PC support?
The ARK-2230L-U0A2E includes Mini PCIe expansion with a SIM holder for communication modules, supporting cellular connectivity options. It also accommodates mSATA storage devices and one 2.5" SATA drive. The system is compatible with Advantech's iDoor, EMIO miniPCIe, and MIOe modules for customized functionality expansion.
What is the operating temperature range for this Box PC?
This fanless Box PC operates reliably across an extended temperature range from -20 to 60°C (-4 to 140°F). This wide tolerance makes it suitable for industrial environments, outdoor installations, and other applications where temperature conditions exceed the specifications of conventional desktop computers.
What networking capabilities does this system provide?
The Box PC features Gigabit Ethernet connectivity through an Intel i210 network controller, delivering reliable high-speed network performance for data-intensive applications. This professional-grade networking component ensures stable connections in commercial and industrial environments where network reliability is critical.
What power input does this Box PC require?
The system uses a 12V lockable DC jack power input that accepts 9-36V power modules. This wide voltage range compatibility allows flexibility in power supply selection and makes the Box PC suitable for various deployment scenarios, including vehicles, industrial equipment, and locations with unstable power conditions.
