Algo 8063 IP Door Controller - Wall Mountable - Tabletop - PoE/PoE+ - 50 Zones - 2 Relay Outputs - 2 Digital Inputs
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

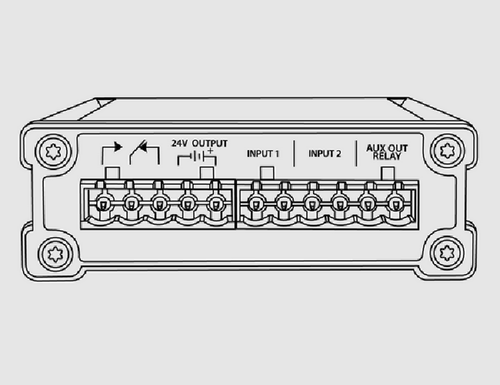

The 8063 features two relay outputs and two digital inputs compatible with dry contact closure sensors. Relay events can be triggered via SIP or multicast protocols, enabling integration with VoIP systems and network-based automation. The 24V output powers door strikes or solenoids directly, simplifying wiring and reducing external power requirements.
Configuration is managed through a user-friendly web interface or auto-provisioning, allowing for quick setup and remote management. The controller operates on PoE/PoE+ (IEEE 802.3af), eliminating the need for separate power supplies and streamlining installation in networked environments.
This section brings together practical product details such as Maximum Number of Zones Supported, Connectivity Technology, Number of Network (RJ-45) Ports, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Algo 8063 delivers precise control and monitoring for door access and security systems, with features that enhance reliability and ease of deployment. Its compatibility with Algo intercoms and IP controllers ensures a cohesive solution for expanding or upgrading existing installations.
Flexible Triggering
Supports SIP or multicast protocols for relay activation, enabling integration with VoIP phones, intercoms, and network management systems.
- SIP-compatible
- Multicast support
- Network-controlled events
Simplified Installation
PoE/PoE+ power reduces cabling complexity, while the compact metal design allows for wall or tabletop mounting in tight spaces.
- Single cable for power and data
- Wall or tabletop options
- Metal construction for durability
Deployment / Use Cases
The 8063 is ideal for environments requiring controlled access and integrated security, such as office buildings, hospitals, hotels, and parking facilities. It connects to intercoms, door strikes, alarms, and sensors, providing a centralized control point for entry management.
Common applications include triggering door releases from Algo 8036, 8039, or 8201 intercoms, monitoring dry contact sensors for alarm systems, and powering solenoids in access control setups. Its 50-zone capacity supports multi-door installations, making it a scalable choice for growing security needs.
Commercial Access Control
Integrate with Algo intercoms to manage door entry in lobbies, entrances, and secure areas, using relay outputs for strike control and digital inputs for sensor monitoring.
Healthcare and Hospitality
Deploy in hospitals or hotels to control access to restricted zones, with PoE power ensuring reliable operation in networked environments without additional wiring.
Physical Profile

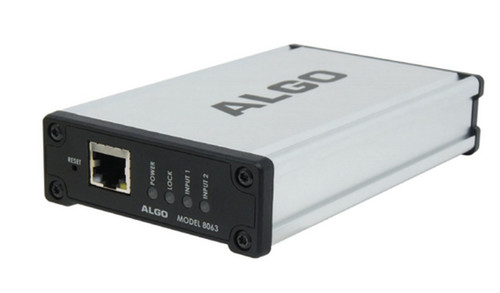

The controller measures 1.20" (30.48 mm) in height, 3.25" (82.55 mm) in width, and 5.40" (137.16 mm) in depth, with a compact footprint that fits discreetly in installation areas. Its metal construction provides durability, while the black and silver dual-color finish offers a professional appearance suitable for visible locations.
- Width
- 3.25" (82.55 mm)
- Depth
- 5.40" (137.16 mm)
- Height
- 1.20" (30.48 mm)
Highlights
- Two relay outputs for door control and alarm triggering.
- Two digital inputs compatible with dry contact closure sensors.
- PoE/PoE+ (IEEE 802.3af) power for simplified installation.
- Supports up to 50 zones for scalable deployments.
- Configuration via web interface or auto-provisioning.
- Compatible with Algo 8036, 8039, 8201 intercoms and 8300 IP controller.
- 24V output to power door strikes or solenoids directly.
- Metal construction with black and silver dual-color finish.
- Wall mountable or tabletop form factor.
- RoHS compliant for environmental safety.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Algo Communication Products Ltd |
| Manufacturer Part Number | 8063 |
| Brand Name | Algo |
| Product Model | 8063 |
| Product Name | 8063 IP Door Controller |
| Product Type | Door Controller |
| Technical Information | |
| Maximum Number of Zones Supported | 50 |
| Connectivity Technology | Wired |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Power Description | |
| Power Source | PoE/PoE+ |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black,Silver |
| Product Material | Metal |
| Form Factor | Wall Mountable,Tabletop |
| Height | 1.20" (30.48 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 5.40" (137.16 mm) |
| Miscellaneous | |
| Application/Usage | Intercom System,Door,Access Control,Alarm,Door Strike,Telephone,Gate,Lobby,Hotel,Hospital,Parking Lot,Entrance,Indoor,Government Facilities,Healthcare,Retail,Relay,Office,Dry Contact Sensor,Video Door Phone |
| Compatibility | Algo Intercom: 8036, 8039, 8201 Algo IP Controller: 8300 Algo Call Switch: 1202, 1203 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the maximum number of zones supported by the Algo 8063?
The Algo 8063 IP Door Controller supports up to 50 zones, allowing it to manage multiple doors or access points in medium to large-scale installations such as office buildings, hospitals, or hotels.
How many relay outputs and digital inputs does the 8063 have?
This controller features two relay outputs for controlling devices like door strikes and two digital inputs that are compatible with dry contact closure sensors, enabling integration with alarms and monitoring systems.
What power source does the Algo 8063 use?
The 8063 is powered by PoE/PoE+ (IEEE 802.3af), which delivers both data and power over a single Ethernet cable. This eliminates the need for separate power supplies and simplifies installation in networked environments.
How can I configure the Algo 8063?
Configuration is done through a user-friendly web interface or via auto-provisioning, allowing for easy setup and remote management. This flexibility supports quick deployment and adjustments without on-site technical visits.
What Algo products is the 8063 compatible with?
The controller is compatible with Algo intercom models 8036, 8039, and 8201, the Algo IP Controller 8300, and Algo Call Switch models 1202 and 1203, ensuring seamless integration into existing Algo ecosystems.
What are the physical dimensions and mounting options?
The 8063 measures 1.20" in height, 3.25" in width, and 5.40" in depth, with a compact metal design. It supports both wall mounting and tabletop placement, making it versatile for various installation scenarios.
How many SIP lines or accounts does this phone support?
Communication products are best understood through their line support, connectivity profile, and deployment fit. Those details help buyers confirm desk-phone or conference-room suitability before rollout.
What network or Ethernet connectivity is listed?
Communication products are best understood through their line support, connectivity profile, and deployment fit. Those details help buyers confirm desk-phone or conference-room suitability before rollout.
