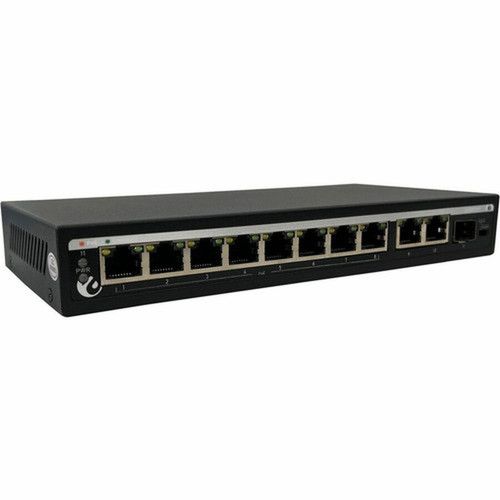

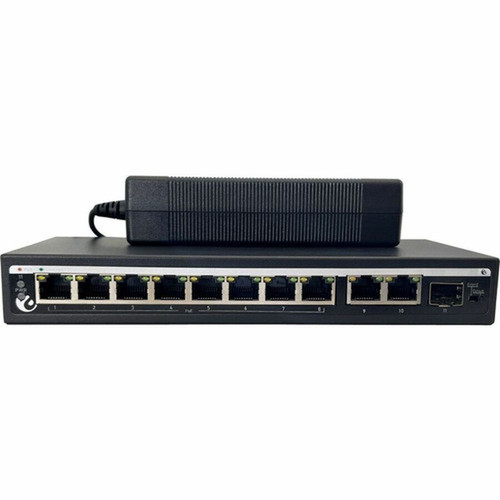

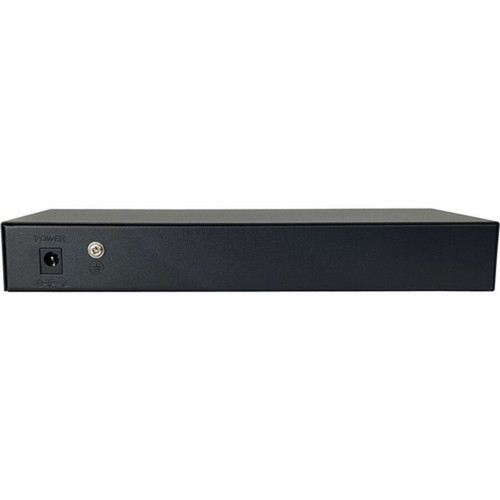

Amer SG8P2GF Managed 10-Port Gigabit Ethernet Switch - 8 PoE Ports - 96W Budget - Layer 3 - SFP Uplink - Fanless
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on a robust networking foundation, the SG8P2GF supports Layer 3 switching, enabling advanced routing, VLAN segmentation, and quality of service (QoS) features for optimized network traffic management. It complies with key IEEE standards including 802.3af/at for PoE, 802.3az for energy efficiency, and 802.3x for flow control, ensuring reliable and standards-based operation.
The switch's media flexibility allows connections over twisted pair copper for standard Ethernet and optical fiber via the SFP uplink, supporting network technologies from 10/100/1000Base-T to 1000Base-X. Its manageable nature provides network administrators with control over configuration, monitoring, and security settings through a user-friendly interface.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Uplink Port. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Amer SG8P2GF combines power, performance, and practicality in a single compact unit. Its fanless operation eliminates noise and reduces points of failure, while the 96W PoE budget delivers ample power for multiple devices without requiring external injectors.
High-Density PoE Ready
Eight PoE ports with auto-sensing MDI/MDIX support simplify deployment for WiFi APs, cameras, and phones, reducing cable clutter and installation time.
- 8 PoE ports
- Auto MDI/MDIX
- 30W per port max
Advanced Switching Features
Layer 3 support enables routing between VLANs, improved network segmentation, and enhanced traffic prioritization for voice and video applications.
- VLAN support
- QoS capabilities
- Inter-VLAN routing
Robust Build & Protection
Built with surge protection to guard against electrical hazards and RoHS compliance for environmental safety, ensuring long-term reliability.
- Surge protection
- RoHS compliant
- Compact metal housing
Deployment / Use Cases
This switch is ideal for deployments where space, noise, and power delivery are critical considerations. Its combination of PoE capabilities, management features, and compact form factor makes it versatile for various networking scenarios.
Common applications include powering and connecting wireless access points in office WiFi networks, supporting IP surveillance systems with multiple cameras, and providing connectivity for VoIP phone systems in small business environments. The SFP uplink option allows for fiber connections to network backbones or longer-distance copper runs where standard Ethernet limits are exceeded.
Small Office Networking
Deploy as a core switch in offices to connect computers, printers, and PoE devices while managing traffic between departments via VLANs.
Retail & Hospitality
Use in retail stores or hotels to support POS systems, security cameras, and guest WiFi access points with silent fanless operation.
Physical Profile
The SG8P2GF features a compact form factor measuring 8.27" wide, 3.86" deep, and 1.18" high (210 x 98 x 30 mm), with a weight of approximately 2.87 lbs (1300 g). This slim profile allows for flexible placement on desks, shelves, or in network cabinets without occupying excessive rack space. The fanless design not only ensures quiet operation but also reduces dust accumulation and maintenance needs, making it suitable for environments where cleanliness and low noise are valued.
- Width
- 8.27" (210 mm)
- Depth
- 3.86" (98 mm)
- Height
- 1.18" (30 mm)
- Weight
- 2.87 lb (1300 g)
Highlights
- 10 total network ports: 8 PoE Gigabit, 2 standard Gigabit RJ45
- 96W total PoE budget with IEEE 802.3af/at compliance
- Layer 3 managed switch with advanced routing and VLAN support
- 1 SFP uplink slot for fiber or copper expansion
- Fanless design for silent, reliable operation
- Compact form factor ideal for space-constrained deployments
- Auto MDI/MDIX on all RJ45 ports for easy cabling
- Surge protection against electrical hazards
- RoHS compliant for environmental safety
- Supports 10/100/1000Base-T and 1000Base-X network technologies
Specifications
| Specifications | |
|---|---|
| Manufacturer | Amer Networks, Inc |
| Manufacturer Part Number | SG8P2GF |
| Brand Name | Amer |
| Product Model | SG8P2GF |
| Product Name | SG8P2GF Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 10 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network Port,2 x Gigabit Ethernet PoE,1 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 1.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.3az |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 96 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Compact |
| Height | 1.18" (30 mm) |
| Width | 8.27" (210 mm) |
| Depth | 3.86" (98 mm) |
| Weight (Approximate) | 2.87 lb (1300 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
How many PoE ports does this switch have and what is the power budget?
The Amer SG8P2GF has eight Gigabit Ethernet ports that support Power over Ethernet (PoE), with a total PoE budget of 96 watts. This budget is shared across all PoE ports, with each port capable of delivering up to 30 watts to compatible devices like wireless access points, IP cameras, and VoIP phones, following IEEE 802.3af and 802.3at standards.
What does Layer 3 support mean for this switch?
Layer 3 support indicates that this switch can perform basic routing functions between different network segments or VLANs. This enables features like inter-VLAN routing, improved traffic management through Quality of Service (QoS), and more efficient network design compared to simpler Layer 2 switches, making it suitable for networks requiring segmentation and advanced traffic control.
Can I connect fiber optic cables to this switch?
Yes, this switch includes one SFP (Small Form-factor Pluggable) uplink slot that supports fiber optic or copper SFP modules. This allows you to connect to fiber network backbones, extend distances beyond standard Ethernet limits, or link to other switches using fiber for improved performance and isolation from electrical interference.
Is this switch fanless and what are the benefits?
Yes, the SG8P2GF is completely fanless, meaning it operates silently with no moving parts for cooling. This reduces noise in office or retail environments, minimizes points of failure, and prevents dust buildup that can affect performance over time. The passive cooling design is ideal for locations where quiet operation and low maintenance are important.
What are the physical dimensions and weight of this switch?
The switch measures 8.27 inches wide, 3.86 inches deep, and 1.18 inches high (210 x 98 x 30 mm), with an approximate weight of 2.87 pounds (1300 grams). Its compact and lightweight design makes it easy to mount on walls, place on shelves, or install in network cabinets without requiring extensive space or heavy-duty support.
What devices are typically connected to the PoE ports on this switch?
The PoE ports are designed to power and connect devices that support Power over Ethernet, such as wireless access points for WiFi networks, IP security cameras for surveillance systems, VoIP phones for business communications, and some types of network sensors or controllers. This eliminates the need for separate power adapters at each device location, simplifying installation and reducing cable clutter.
