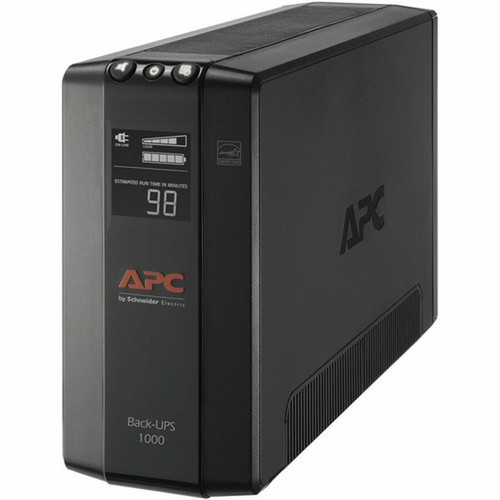

APC by Schneider Electric BX1000M APC Back-UPS Pro 1000VA Compact Tower UPS - 600W - AVR - LCD - 8 Outlets - 4 Surge - 120V
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered as a line-interactive UPS, the BX1000M maintains consistent 120V output with a stepped approximated sine wave, suitable for most computer and electronic loads. Its 10 ms typical transfer time ensures seamless switch to battery power during outages, while the wide input voltage range (88–139V AC) allows operation in areas with unstable grid power.
The unit incorporates a single maintenance-free, sealed lead-acid battery with 504 kJ energy capacity. It supports hot-swappable battery replacement, enabling continued operation during battery swaps without powering down connected equipment. A USB HID-compliant port facilitates communication with power management software on connected computers for graceful shutdowns.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Back-UPS Pro BX1000M delivers essential power protection with features that prioritize reliability, usability, and equipment safety. Its combination of adequate runtime, comprehensive outlet coverage, and clear status monitoring makes it a practical choice for safeguarding workstations and network peripherals.
Automatic Voltage Regulation
AVR corrects under- and over-voltage conditions, reducing battery usage for common power issues and extending battery life.
- Handles input from 88V to 139V
- Maintains stable 120V output
Intuitive LCD Interface
The backlit LCD displays real-time status, load percentage, battery charge level, and estimated runtime remaining.
- Shows UPS mode and alerts
- Battery and load bar graphs
Comprehensive Outlet Layout
Eight outlets provide dedicated battery-backed and surge-only circuits, allowing prioritized protection for critical devices.
- 4 battery+surge outlets
- 4 surge-only outlets
Deployment / Use Cases
This UPS is well-suited for protecting desktop computers, monitors, external storage, routers, modems, and gaming systems in environments where brief runtime is sufficient for saving work and shutting down equipment gracefully. Its compact tower form factor fits easily under desks or in home office setups without occupying excessive space.
In small business settings, the BX1000M can secure point-of-sale systems, network switches, or surveillance system recorders during short outages. The dataline protection for coaxial and RJ-45 connections adds an extra layer of defense for connected networking and video equipment against surge damage.
Home Office Workstation
Protect a desktop PC, monitor, and external hard drive with battery backup while providing surge protection for a printer and desk lamp.
Network Infrastructure Support
Ensure continuous operation of a router, modem, and network-attached storage device during brief power interruptions to maintain connectivity.
Physical Profile
The black tower enclosure measures 7.48 inches high, 3.58 inches wide, and 12.20 inches deep, with a weight of approximately 15.87 pounds. Its compact footprint allows placement in tight spaces while the integrated carry handle facilitates relocation. The six-foot power cord provides flexibility in positioning relative to wall outlets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.48" (190 mm), 3.58" (91 mm), 12.20" (310 mm), 45 dB(A). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.58" (91 mm)
- Depth
- 12.20" (310 mm)
- Height
- 7.48" (190 mm)
- Weight
- 45 dB(A)
- Length
- 6 ft (1.83 m)
What's in the Box
The package includes everything needed for immediate setup and operation.
Package contents include Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V USB cable User manual, Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 1000VA/600W line-interactive UPS with automatic voltage regulation (AVR)
- LCD display shows UPS status, load, and battery information clearly
- 8 total outlets: 4 battery+surge plus 4 surge-only NEMA 5-15R receptacles
- Provides 4.3 minutes at full load, 13.5 minutes at half load runtime
- Hot-swappable, user-replaceable maintenance-free lead-acid battery
- Dataline protection for coaxial and RJ-45 connections
- USB HID-compliant port for communication with power management software
- Energy Star certified and RoHS/REACH compliant
- Compact tower design with black finish and integrated carry handle
- 3-year UPS warranty with 1-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BX1000M |
| Brand Name | APC by Schneider Electric |
| Product Line | Back-UPS Pro |
| Product Name | Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R Surge,4 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Number of Surge-only Outlets | 4 |
| Dataline Protection | Coax,RJ-45 |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Application/Usage | Computer,Electronic Equipment,Router,Modem,Storage Device,Gaming Console,Home,Business |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V |
| Input Voltage Range | 88 V AC - 139 V AC |
| Input Current | 15 A |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 1103 J |
| Management | |
| Alarm | On Battery,Low Battery,Overload |
| Controls/Indicators | |
| Status Indicators | LCD Status Display: UPS status Load and battery bar graphs |
| Interfaces/Ports | |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Battery Chemistry | Lead Acid |
| Battery Energy | 504 kJ |
| Backup/Run Time (Full Load) | 4.30 Minute |
| Backup/Run Time (Half Load) | 13.50 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 12 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 48.50 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 7.48" (190 mm) |
| Width | 3.58" (91 mm) |
| Depth | 12.20" (310 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 15.87 lb (7198.51 g) |
| Miscellaneous | |
| Package Contents | Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V USB cable User manual |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 12 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the actual wattage capacity of this 1000VA UPS?
The APC Back-UPS Pro BX1000M provides 600 watts of continuous power capacity. For UPS units, the watt rating (600W) represents the real power available to connected equipment, while the VA rating (1000VA) includes both real and reactive power. Most computer and electronic loads operate within the 600W limit at 120V.
How long will this UPS run my equipment during a power outage?
Runtime depends on the total load connected. At the maximum 600W load, the UPS provides approximately 4.3 minutes of battery backup. At half load (300W), runtime extends to about 13.5 minutes. These times allow for saving work and performing graceful shutdowns of computers and connected devices.
What types of equipment can I connect to the different outlets?
Connect critical devices like computers, monitors, and networking equipment to the four battery+surge outlets for both backup and protection. Use the four surge-only outlets for less critical items like printers, lamps, or chargers that only need surge protection. All eight outlets provide surge protection, but only the battery+surge outlets offer backup power during outages.
Does this UPS require special software or configuration?
The UPS operates effectively without software using its built-in LCD display and audible alarms. However, the USB HID-compliant port allows connection to a computer for integration with power management software like APC PowerChute, which enables features like automatic safe shutdown, runtime monitoring, and event logging.
How do I know when the battery needs replacement?
The LCD display shows battery status and will indicate when battery replacement is recommended. Typically, batteries last 3-5 years depending on usage and environmental conditions. The UPS supports hot-swappable battery replacement, allowing you to change the battery without powering down connected equipment.
What protection does this UPS offer for network and cable connections?
In addition to power protection, the BX1000M includes dataline protection for coaxial cables (used for cable internet/TV) and RJ-45 Ethernet connections. This helps prevent surge damage from propagating through these connections to sensitive networking equipment, routers, modems, or connected computers.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 8, which helps buyers understand how many connected devices it can support in its intended deployment.
