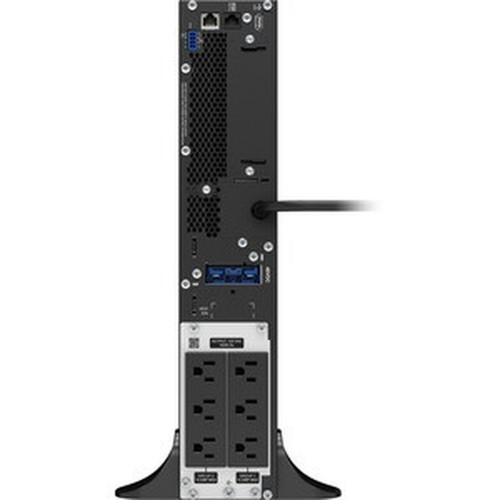

APC by Schneider Electric SRT1500XLA APC Smart-UPS SRT 1500VA Double Conversion Online UPS - 1350W - 120V - 6x NEMA 5-15R Outlets - Rack/Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS SRT 1500VA is a double-conversion online UPS engineered to deliver clean, reliable power for mission-critical infrastructure. With 1500VA/1350W capacity and pure sine wave output, this unit provides zero transfer time protection for sensitive electronics that cannot tolerate power interruptions. The double-conversion topology continuously converts incoming AC to DC and back to clean AC, ensuring complete isolation from power anomalies while maintaining stable voltage output.
This rack/tower convertible UPS features six NEMA 5-15R outlets with individual surge protection, hot-swappable lead-acid batteries, and a typical 3-hour recharge time. The included PowerChute Serial Edition software enables graceful shutdowns of connected equipment via serial or USB connections during extended outages. With its flexible deployment options and expandable runtime capabilities, the Smart-UPS SRT 1500VA offers enterprise-grade power protection for servers, networking equipment, medical devices, and industrial controls.
Technical Overview
The Smart-UPS SRT employs double-conversion online topology, which continuously converts incoming AC power to DC and back to clean AC output. This design eliminates transfer time completely and provides complete isolation from power anomalies including sags, surges, spikes, and electrical noise. The pure sine wave output ensures compatibility with sensitive electronics that require clean power waveforms for proper operation.
With 120V input and output voltage, single-phase operation, and 432 joules of surge protection, this UPS maintains stable power delivery under varying load conditions. The lead-acid batteries are hot-swappable, allowing maintenance or replacement without system downtime. The network RJ-45 port enables remote management and monitoring capabilities, while the 5.9-foot power cord provides flexible placement options in rack or tower configurations.
Key Product Advantages
Zero Transfer Time Protection
Double-conversion online topology ensures continuous clean power with no switching delay during outages or fluctuations. This eliminates power interruptions that could damage sensitive electronics or cause data loss in critical systems.
- Complete power isolation from anomalies
- Pure sine wave output for sensitive equipment
- Stable voltage regulation under all conditions
Flexible Deployment Options
Convert between rack and tower configurations to match your environment. The 3U rack-mountable design includes removable support feet for tower deployment, with rack rails (SRTRK2 or SRTRK3) available separately for standard 19-inch rack installation.
- 3U rack-mountable footprint
- Quick conversion between configurations
- Adapts to changing infrastructure needs
Expandable Runtime Capabilities
Connect up to 10 external battery packs (SRT48BP) to significantly extend backup time for mission-critical applications. This modular approach allows you to customize runtime based on specific requirements without replacing the entire UPS system.
- Scalable power protection
- Supports extended operations
- Modular battery expansion
Deployment / Use Cases
The Smart-UPS SRT 1500VA is engineered for environments where power quality and reliability are non-negotiable. Its pure sine wave output and zero transfer time make it ideal for sensitive electronics that cannot tolerate power interruptions.
This UPS supports a wide range of applications from server rooms and network closets to medical equipment and industrial controls. The rack/tower convertible design allows deployment in both data center and office environments.
Server & Network Infrastructure
Protect servers, storage arrays, switches, and routers with clean, uninterrupted power. The network port enables remote management and monitoring.
Medical & Laboratory Equipment
Ensure critical medical devices and laboratory instruments maintain operation during power events. Pure sine wave output is essential for sensitive diagnostic equipment.
Voice/Data Communication Systems
Maintain uptime for VoIP systems, PBX equipment, and communication infrastructure. Six outlets support multiple devices with individual surge protection.
Physical Profile
The black chassis measures 17.01" (432 mm) high, 3.35" (85 mm) wide, and 20" (508 mm) deep, occupying 3U of rack space. At 48.50 pounds, it's designed for stable installation in both rack and tower orientations.
Removable support feet allow quick conversion between rack and tower deployment. The compact depth ensures compatibility with standard server racks while providing sufficient internal space for the double-conversion power components.
- Width
- 3.35" (85 mm)
- Depth
- 20" (508 mm)
- Height
- 17.01" (432 mm)
- Weight
- 48.50 lb (21999.23 g)
- Length
- 5.9 ft (1.80 m)
What's in the Box
The Smart-UPS SRT 1500VA ships complete with all necessary components for immediate deployment and management.
Highlights
- 1500VA/1350W double-conversion online UPS with pure sine wave output
- Zero transfer time protection for critical and sensitive equipment
- Rack/tower convertible design (rails sold separately)
- Six NEMA 5-15R outlets with individual surge protection
- Hot-swappable lead-acid batteries for maintenance without downtime
- Includes PowerChute Serial Edition software for graceful shutdowns
- Supports up to 10 external battery packs for extended runtime
- 3-year UPS warranty with 2-year battery coverage
- Energy Star certified and RoHS compliant
- Network port enables remote management and monitoring
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT1500XLA |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS SRT 1500VA 120V |
| Packaged Quantity | 1 Each |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 5.9 ft (1.80 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 432 J |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 3.35" (85 mm) |
| Depth | 20" (508 mm) |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 48.50 lb (21999.23 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 1500VA 120V CD with software Communication cable Documentation CD Installation guide Removable support feet USB cable Warranty card |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS SRT 1500VA?
This double-conversion online UPS delivers 1500VA (1.50 kVA) and 1350W of pure sine wave power. This capacity supports critical equipment like servers, networking gear, and medical devices that require clean, uninterrupted power with zero transfer time.
What runtime can I expect at full load?
At full 1350W load, the internal batteries provide approximately 5 minutes of backup runtime. Runtime extends significantly at lower loads, and you can connect up to 10 external battery packs (SRT48BP) for extended operation during prolonged outages.
How many outlets does this UPS have and what type?
The unit features six NEMA 5-15R outlets, all providing battery backup and surge protection. This allows you to protect multiple devices simultaneously, making it suitable for server racks, network closets, or medical equipment setups.
What input and output voltage does this UPS support?
This UPS operates at 120V AC for both input and output, making it compatible with standard North American power systems. The double-conversion topology ensures stable 120V output regardless of input fluctuations or outages.
Can this UPS be installed in both rack and tower configurations?
Yes, this is a rack/tower convertible unit. It comes with removable support feet for tower deployment and is designed for 3U rack mounting (rack rails SRTRK2 or SRTRK3 sold separately). This flexibility allows deployment in data centers, server rooms, or office environments.
What management and connectivity options are included?
The UPS includes a network RJ-45 port for remote management and PowerChute Serial Edition software for graceful shutdowns via serial or USB connections. The hot-swappable batteries allow maintenance without downtime, and external battery packs can be added for extended runtime.
