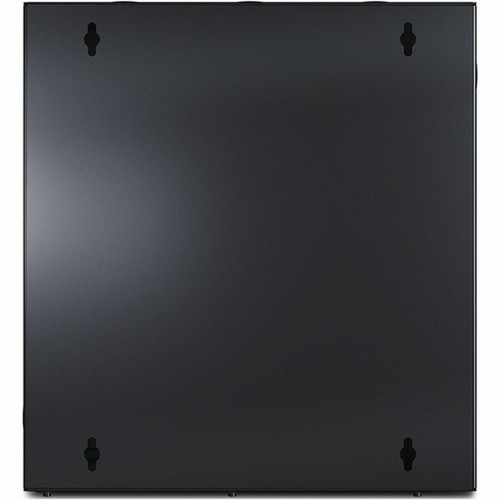

APC by Schneider Electric AR100 APC NetShelter WX 13U Wall-Mount Rack Cabinet with Glass Front Door - Black - 200 lb Capacity
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The AR100 is designed for wall mounting, with a form factor that integrates into tight spaces without sacrificing equipment accessibility. Its reversible single-hinge front door and rear hinging facilitate equipment installation and maintenance, while adjustable front mounting rails offer square or #12-24 tapped hole options for versatile device mounting.
Internal rack dimensions are 19" wide and 19" deep, compatible with standard rack-mount hardware. The cabinet ships pre-assembled, reducing setup time and complexity. A separate fan tray (AR8206ABLK) is available for enhanced thermal management in high-density applications.
This section brings together practical product details such as Application/Usage, Mounting Preference, Form Factor, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
Space Optimization
Wall-mount design eliminates floor footprint, ideal for edge computing, networking closets, or environments with limited floor space.
- Maximizes vertical space utilization
- Frees up floor area for other equipment or walkways
Secure and Accessible
Glass front door provides visibility into equipment status while maintaining security with included keys. Rear hinging allows full rear access for cabling and maintenance.
- Lockable front door
- Easy rear panel removal for servicing
Durable Construction
Steel frame and glass door ensure long-term reliability and protection for sensitive networking and computing hardware.
- 200.42 lb load capacity
- RoHS compliant materials
Deployment / Use Cases
The AR100 is tailored for deployments where space is at a premium but equipment security and organization are critical. Its 13U capacity accommodates a mix of switches, routers, patch panels, and small servers, making it a versatile solution for distributed IT infrastructure.
Common use cases include branch office networking racks, telecommunications equipment enclosures, retail point-of-sale system consolidation, and educational lab environments. The wall-mount capability allows installation in closets, utility rooms, or on walls in server rooms, optimizing space in multi-use facilities.
Edge Computing Nodes
Hosts networking gear and compact servers for edge computing applications, providing a secure, organized enclosure in remote or space-constrained locations.
Network Distribution Points
Centralizes switches, routers, and patch panels in wiring closets or mezzanine areas, improving cable management and equipment security.
Physical Profile
The AR100 features a sleek black finish with a glass front door, offering a professional appearance while allowing visual equipment monitoring. Its compact external dimensions (26.10" H x 22.99" W x 24.84" D) make it suitable for installation on standard wall studs or reinforced surfaces. The cabinet includes a wall-mounting template for precise installation, and its 94.20 lb weight requires proper mounting hardware for secure attachment.
- Width
- 22.99" (584 mm)
- Depth
- 24.84" (631 mm)
- Height
- 26.10" (663 mm)
- Weight
- 200.42 lb (90910 g)
What's in the Box
The AR100 ships complete with all necessary components for immediate deployment.
Highlights
- 13U wall-mount rack cabinet for space-constrained environments
- Glass front door with lock for security and visibility
- 200.42 lb static load capacity supports standard rack equipment
- Rear hinging and reversible front door for easy maintenance access
- Adjustable front mounting rails with square or #12-24 tapped holes
- Pre-assembled design reduces installation time
- RoHS compliant and environmentally friendly
- 5-year APC limited warranty for long-term reliability
- Compatible with optional fan tray (AR8206ABLK) for enhanced cooling
- Includes wall-mounting template for precise installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AR100 |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter WX |
| Product Model | AR100 |
| Product Name | NetShelter WX 13U w/Threaded Hole Vertical Mounting Rail Glass Front Door Black |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | Networking,Airflow System |
| Mounting Preference | No Preference |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Glass,Steel |
| Static/Stationary Weight Capacity | 200.42 lb (90910 g) |
| Height | 26.10" (663 mm) |
| Width | 22.99" (584 mm) |
| Depth | 24.84" (631 mm) |
| Rack Height | 13U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 19" (482.60 mm) |
| Weight (Approximate) | 94.20 lb (42728.40 g) |
| Miscellaneous | |
| Package Contents | NetShelter WX 13U Rack Cabinet Key(s) User Manual Wall-mounting template |
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the load capacity of the APC AR100 rack cabinet?
The APC AR100 has a static/stationary weight capacity of 200.42 lb (90910 g). This capacity supports a range of standard 19" rack-mount networking equipment, servers, and airflow systems, making it suitable for small to medium deployments in edge computing or networking applications.
Does the AR100 require assembly?
No, the AR100 ships pre-assembled. This reduces setup time and complexity, allowing for quicker deployment. The cabinet includes a wall-mounting template for precise installation, and all necessary hardware is provided for mounting the rack to a wall or suitable surface.
What are the internal rack dimensions of the AR100?
The internal rack dimensions are 19" wide and 19" deep (482.60 mm each). These dimensions are compatible with standard 19" rack-mount equipment, including servers, switches, and patch panels. The external depth is 24.84" (631 mm), providing space for cable management behind installed devices.
Is the front door of the AR100 lockable?
Yes, the glass front door is lockable with included keys. This provides security for sensitive networking and computing hardware while maintaining visibility into equipment status. The door features a reversible single-hinge design for flexible opening direction based on installation preferences.
What warranty comes with the APC AR100 rack cabinet?
The APC AR100 includes a 5-year limited warranty. This warranty covers defects in materials and workmanship, providing long-term reliability and peace of mind for deployments in commercial, educational, or telecommunications environments. The product is also RoHS compliant, meeting environmental standards.
Can the AR100 be used for networking equipment?
Yes, the AR100 is designed for networking and airflow system applications. Its 13U capacity accommodates switches, routers, patch panels, and other networking gear, making it ideal for branch offices, retail locations, or telecommunications closets where floor space is limited and equipment security is essential.
