APC by Schneider Electric APDU11452SW APC NetShelter Rack PDU Advanced Gen 2 Switched - 17. 3kW 208V 60A 3-Phase 42 Outlet IEC 60309 60A 3P+PE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switched PDU operates on three-phase power with IEC 60309 60A 3P+PE input connector, delivering 208V AC output voltage matching the input for efficient power distribution. The 17.3kW load capacity supports demanding applications while maintaining stable power delivery across all 42 outlets.
The management system provides comprehensive control through web interface, SNMP, and command-line access, enabling remote outlet switching for individual power control. The Live Swap NMC3 feature allows for maintenance without disrupting connected equipment, while enhanced cybersecurity protocols protect against unauthorized access.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The NetShelter Advanced Gen 2 PDU combines high power capacity with intelligent management features for modern data center requirements. The 4-in-1 combination outlet design allows each receptacle to accept C13, C15, C19, or C21 plugs, providing exceptional flexibility for mixed equipment environments without requiring adapter cords.

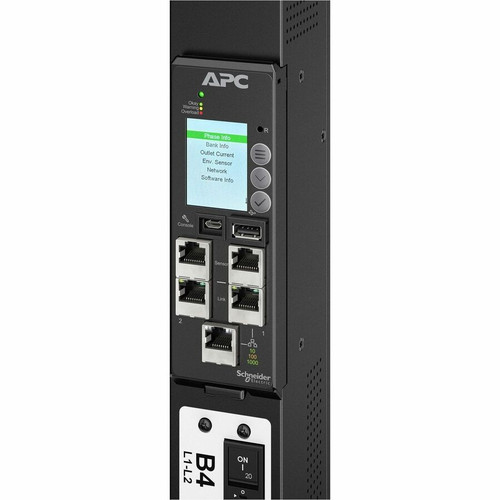

Advanced Management Capabilities
The NMC3 management card offers web, SNMP, and CLI interfaces for comprehensive power monitoring and control, including remote outlet switching and environmental monitoring integration.
- Live Swap capability for maintenance
- Enhanced cybersecurity features
- EcoStruxure™ IT compatible
High-Density Power Distribution
With 42 outlets and 17.3kW capacity, this PDU supports power-intensive applications including AI workloads, high-performance computing, and dense server deployments.
- 42 total outlets
- 17.3kW load capacity
- Three-phase 208V power
Deployment / Use Cases

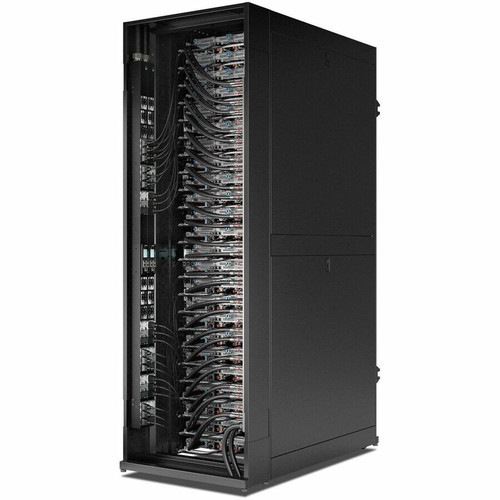

This switched rack PDU is specifically designed for data center environments requiring high-density power distribution with advanced management capabilities. The zero-rack-unit vertical mounting preserves valuable rack space while providing comprehensive power distribution for server cabinets and network racks.
Ideal deployment scenarios include AI infrastructure supporting machine learning workloads, enterprise server rooms with high-power equipment, colocation facilities requiring remote management, and data centers implementing power monitoring and control systems. The side placement design optimizes airflow while maintaining accessibility for cable management.
Data Center Power Distribution
Deploy in server racks supporting high-density computing equipment, providing managed power distribution with individual outlet control for maintenance and troubleshooting.
AI and High-Performance Computing
Support power-intensive AI servers and GPU clusters with the 17.3kW capacity and flexible outlet configuration for mixed equipment types.
Physical Profile
The PDU features a vertical rack-mountable design with side placement, occupying zero rack units (0U) to maximize equipment space. With dimensions of 71.89" height, 2.20" width, and 2.95" depth, the unit fits standard 19-inch server racks while providing 42 outlets in a compact form factor. The 9.8-foot power cord offers flexible installation options, and the 24.47-pound weight ensures stable mounting in rack environments.
- Width
- 2.20" (55.88 mm)
- Depth
- 2.95" (74.93 mm)
- Height
- 0U
- Weight
- 24.47 lb (11099.41 g)
- Length
- 9.8 ft (3 m)
Highlights
- 17.3kW power capacity for high-density applications
- 42 outlets with 4-in-1 combination design (C13/C15/C19/C21)
- Three-phase 208V 60A input with IEC 60309 60A 3P+PE connector
- Advanced NMC3 management with web, SNMP, and CLI interfaces
- Remote outlet switching for individual power control
- Zero-rack-unit (0U) vertical mounting design
- Live Swap Network Management Card for maintenance
- Enhanced cybersecurity features and EcoStruxure™ IT compatibility
- 1-year free subscription to Secure NMC3 System
- 3-year limited warranty for reliable operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APDU11452SW |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter 42-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Receptacle Type | IEC 60320 C13/C15/C19/C21,IEC 60320 C13/C15 |
| Receptacle Detail | 21 x IEC 60320 C13/C15/C19/C21,21 x IEC 60320 C13/C15 |
| Load Capacity (Watt) | 17.30 kW |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Source | Power Supply |
| Input Current | 60 A |
| Management | |
| Management | NMC3 Web SNMP CLI |
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 9.8 ft (3 m) |
| Height | 71.89" (1826.01 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2.95" (74.93 mm) |
| Weight (Approximate) | 24.47 lb (11099.41 g) |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Application/Usage | IT Equipment,Server/Network Rack,Data Center |
| TAA Compliant | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this APC NetShelter PDU?
This APC NetShelter Rack PDU Advanced Gen 2 delivers 17.3 kilowatts (kW) of power capacity, supporting high-density server and networking equipment in data center environments. The three-phase 208V 60A input provides sufficient power for demanding applications including AI workloads and high-performance computing clusters.
How many outlets does this PDU have and what types are supported?
The PDU features 42 total outlets with a combination of IEC 60320 receptacles. It includes 21 outlets that accept C13, C15, C19, or C21 plugs (4-in-1 combination design) and 21 outlets that accept C13 or C15 plugs. This flexible configuration supports various server, storage, and networking equipment without requiring adapter cords.
What management capabilities does the NMC3 provide?
The Network Management Card 3 (NMC3) offers comprehensive management through web interface, SNMP protocols, and command-line access. It enables remote outlet switching for individual power control, power monitoring, environmental sensor integration, and enhanced cybersecurity features. The Live Swap capability allows card replacement without disrupting connected equipment.
How is this PDU mounted in a server rack?
This PDU is designed for vertical rack mounting with side placement, occupying zero rack units (0U) to preserve valuable equipment space. The unit measures 71.89 inches in height, 2.20 inches in width, and 2.95 inches in depth, fitting standard 19-inch server racks. The vertical orientation and side placement optimize airflow and cable management in dense rack environments.
What input power connection does this PDU require?
The PDU requires a three-phase 208V 60A power source with an IEC 60309 60A 3P+PE input connector. This industrial-grade connection provides reliable power delivery for the 17.3kW capacity. The unit includes a 9.8-foot (3-meter) power cord for flexible installation relative to power distribution units or wall outlets.
What warranty and compliance certifications does this PDU have?
APC provides a 3-year limited warranty for this NetShelter PDU. The unit complies with Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), and China RoHS environmental standards. It is designed for IT equipment, server/network racks, and data center applications with a maximum operating temperature of 140°F (60°C).
What power capacity is listed for this UPS?
The listed power specification is 17.30 kW, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes Yes, which helps buyers understand how many connected devices it can support in its intended deployment.
