APC by Schneider Electric APDU10452ME NetShelter Rack PDU Advanced - Metered - 3-Phase - 17. 3kW/17. 3kVA - 208V 60A - 42 Outlets - 0U Vertical
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NetShelter PDU operates with three-phase power input using an IEC 60309 60A 3P+PE connector, providing stable 208V AC output across all 42 outlets. The unit supports equipment with both standard and high-current power requirements through its combination of C13/C15 and C13/C15/C19/C21 receptacles.
The advanced metering capability enables detailed power monitoring at the PDU level, allowing IT administrators to track power consumption, identify potential overload conditions, and optimize power distribution across connected equipment. The 5.9-foot input cord provides flexible installation options within standard rack configurations.
Relevant factors for this section include PDU Type, Phase, Plug/Connector Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Environmental Compliance
This PDU meets multiple environmental standards including WEEE, RoHS, China RoHS, and REACH compliance, supporting sustainable IT operations.
- WEEE Compliant
- RoHS Compliant
- China RoHS Compliant
- REACH Compliant
Key Product Advantages
The NetShelter Advanced Metered PDU combines high-density power distribution with intelligent monitoring capabilities for modern data center and server room deployments. Its 0U vertical form factor maximizes rack space utilization while providing comprehensive outlet coverage for equipment mounting.
Power Monitoring
The interactive LCD display provides real-time visibility into power consumption metrics, enabling proactive capacity management and energy efficiency optimization.
- Active power measurements
- Volts, amps, kW, kWh display
- Network management capability
Compliance & Warranty
Manufactured in the United States with TAA compliance and backed by a 3-year APC warranty, this PDU meets government and enterprise procurement requirements.
- TAA Compliant
- 3-Year Warranty
- Made in USA
Deployment / Use Cases
This 3-phase metered PDU is engineered for environments requiring high-power density and precise power monitoring. Its 17.3kW capacity and 42-outlet configuration make it ideal for server racks, network cabinets, and telecommunications installations where multiple devices require reliable, monitored power distribution.
The vertical 0U mounting design allows installation in standard 19-inch racks without consuming valuable rack unit space, making it particularly valuable in high-density data centers and colocation facilities. The side placement capability provides installation flexibility for various rack configurations and cable management approaches.
Data Center Applications
Support server racks, blade enclosures, and networking equipment with monitored three-phase power distribution in enterprise and colocation data centers.
- Server rack power distribution
- Network cabinet deployment
- High-density equipment support
Telecommunications Installations
Provide reliable power to telecom equipment, switches, and routers with the monitoring capabilities needed for remote site management.
- Telecom rack deployment
- Remote monitoring support
- Equipment power management
Physical Profile
The black vertical PDU measures 70.08 inches in height with a slim 2.20-inch width and 2.95-inch depth, designed specifically for side mounting in standard 19-inch racks. The 0U rack height preserves valuable equipment mounting space while the vertical orientation optimizes cable routing and management. The unit's 23.59-pound weight ensures stable mounting without excessive rack loading.
- Width
- 2.20" (56 mm)
- Depth
- 2.95" (75 mm)
- Height
- 0U
- Weight
- 23.59 lb (10700.24 g)
- Length
- 5.9 ft (1.80 m)
Highlights
- 17.3kW/17.3kVA three-phase power capacity
- 42 total outlets with mixed receptacle types
- Interactive LCD display for power monitoring
- 0U vertical rack mounting design
- IEC 60309 60A 3P+PE input connector
- 208V input and output voltage
- TAA compliant for government procurement
- 3-year APC warranty coverage
- Made in the United States
- Environmental compliance with WEEE, RoHS, and REACH
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APDU10452ME |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter 42-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Receptacle Type | IEC 60320 C13/C15/C19/C21,IEC 60320 C13/C15 |
| Receptacle Detail | 21 x IEC 60320 C13/C15,21 x IEC 60320 C13/C15/C19/C21 |
| Power Description | |
| Input Voltage | 208 V |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 60 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Form Factor | Rack |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 5.9 ft (1.80 m) |
| Height | 70.08" (1780 mm) |
| Width | 2.20" (56 mm) |
| Depth | 2.95" (75 mm) |
| Weight (Approximate) | 23.59 lb (10700.24 g) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this NetShelter PDU?
This APC NetShelter PDU provides 17.3 kilowatts (17.3kW) and 17.3 kilovolt-amperes (17.3kVA) of power capacity. It operates with three-phase power at 208 volts with 60 amps input current, making it suitable for high-density server racks and networking equipment that require substantial power distribution.
How many outlets does this PDU have and what types are they?

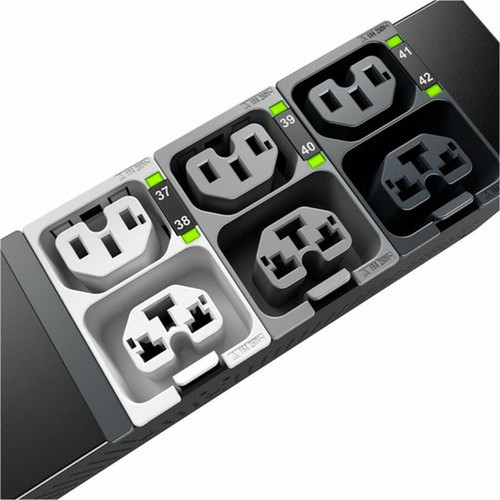

The PDU features 42 total outlets with a mixed configuration: 21 IEC 60320 C13/C15 receptacles and 21 IEC 60320 C13/C15/C19/C21 receptacles. This combination supports both standard equipment power cords and higher-current devices that require C19 or C21 connectors, providing flexibility for various IT equipment types.
What mounting options are available for this rack PDU?
This NetShelter PDU is designed for vertical 0U rack mounting with side placement capability. The 0U form factor means it doesn't consume any rack unit space, preserving valuable mounting real estate for servers and networking equipment. The vertical orientation optimizes cable management and airflow in standard 19-inch racks.
What monitoring capabilities does the metered PDU provide?
The advanced metered design includes an interactive LCD display that shows real-time power measurements including voltage, current, kilowatts, and kilowatt-hours. This enables IT administrators to monitor power consumption, identify potential overload conditions, and optimize power distribution across connected equipment for improved energy management.
Is this PDU compliant with government procurement requirements?
Yes, this PDU is TAA (Trade Agreements Act) compliant, making it suitable for government and public sector procurement. It's also manufactured in the United States and meets multiple environmental standards including WEEE, RoHS, China RoHS, and REACH compliance requirements for sustainable IT operations.
What warranty coverage does APC provide for this PDU?
APC by Schneider Electric provides a 3-year limited warranty for this NetShelter PDU. The warranty covers defects in materials and workmanship, offering reliable protection for your power distribution investment. This warranty support is backed by APC's extensive experience in power protection and distribution solutions.
