APC NetShelter SX, Networking Rack Enclosure, 42U, Black, 1991H x 750W x 1070D mm with Casters, Feet, Vertical Cable Managers, Side - (AR3140)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features

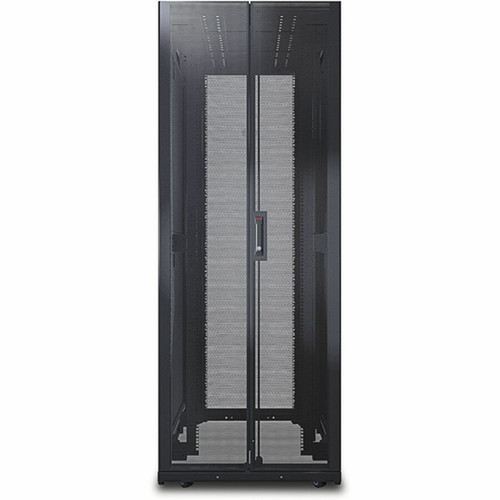

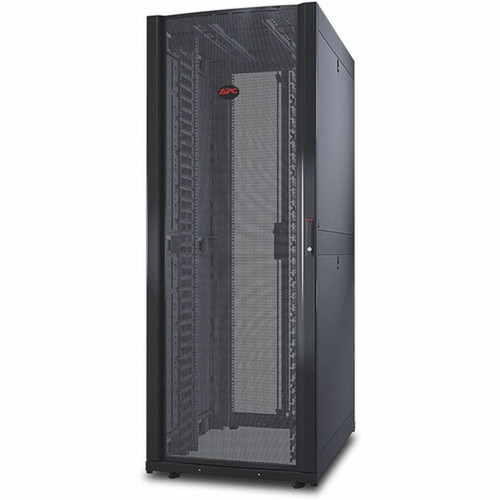

- NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides
- Baying Hardware
- Documentation CD
- Key(s)
- Keyed-alike Doors and Side Panels
- Leveling Feet
- Mounting Hardware
- Pre-installed Casters
- Side Panels
- User Manual

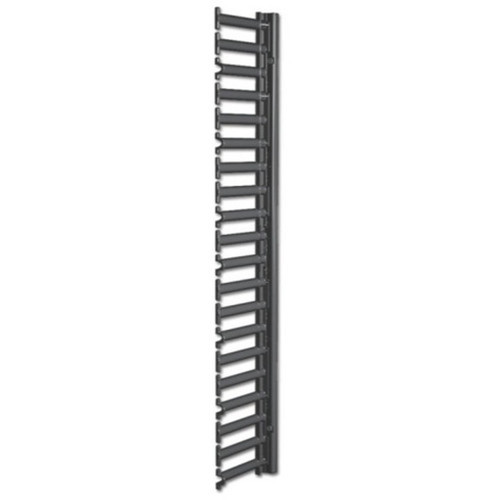

- Vertical Cable Managers
Application/Usage: Networking,Airflow System
Features: Cable Management,Removable Side Panel,Perforated Door,Lockable Door,Adjustable Leveling Feet,Adjustable Mounting Rails,Casters
Mounting Location: Front
Mounting Preference: No Preference
Form Factor: Floor Standing
Color Family: Black
Product Color: Black
Dynamic/Rolling Weight Capacity: 2254.73 lb (1022730 g)
Static/Stationary Weight Capacity: 3006.31 lb (1363640 g)
Height: 78.39" (1991 mm)
Width: 29.53" (750 mm)
Depth: 42.13" (1070 mm)
Rack Height: 42U
Rack Width: 19" (482.60 mm)
Weight (Approximate): 343.81 lb (155949.59 g)
Package Contents:
Assembly Required: No
Country of Origin: Philippines
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year

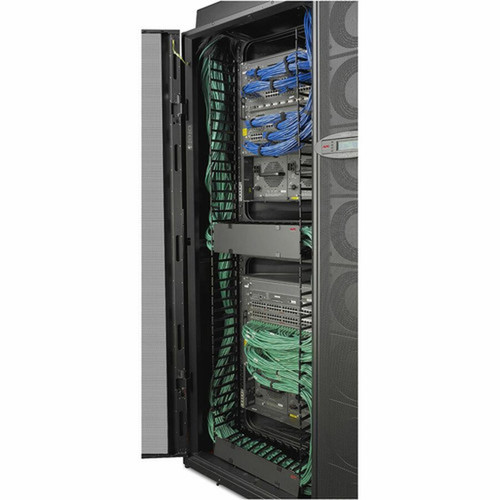

- Ideal for high density networking or computing
- Designed for faster IT installation, adds or changes
- Promotes proper airflow to improve cooling efficiency
- Full height, 0U accessory channels (x2) for more available Uspace
- Compatible with a wide variety of accessories for organization, airflow, and ease of use
[custom-specifications]
| Specifications | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AR3140 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter SX |
| Product Name | NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | Networking,Airflow System |
| Features | Cable Management,Removable Side Panel,Perforated Door,Lockable Door,Adjustable Leveling Feet,Adjustable Mounting Rails,Casters |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Physical Characteristics | |
| Form Factor | Floor Standing |
| Color Family | Black |
| Product Color | Black |
| Dynamic/Rolling Weight Capacity | 2254.73 lb (1022730 g) |
| Static/Stationary Weight Capacity | 3006.31 lb (1363640 g) |
| Height | 78.39" (1991 mm) |
| Width | 29.53" (750 mm) |
| Depth | 42.13" (1070 mm) |
| Rack Height | 42U |
| Rack Width | 19" (482.60 mm) |
| Weight (Approximate) | 343.81 lb (155949.59 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | Philippines |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
