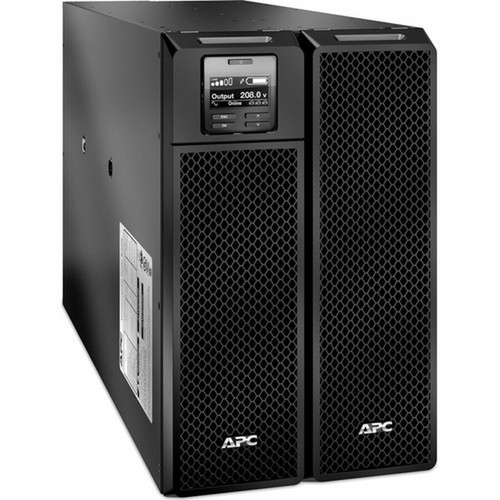

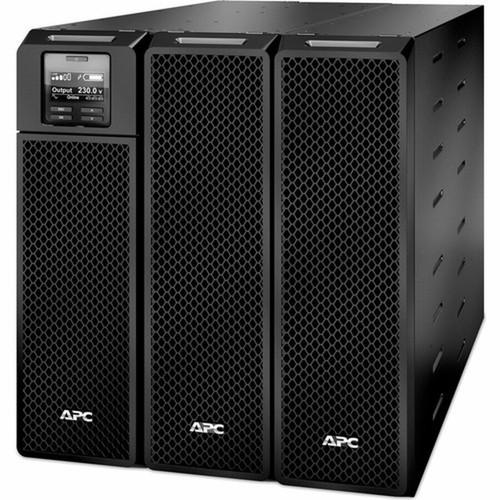

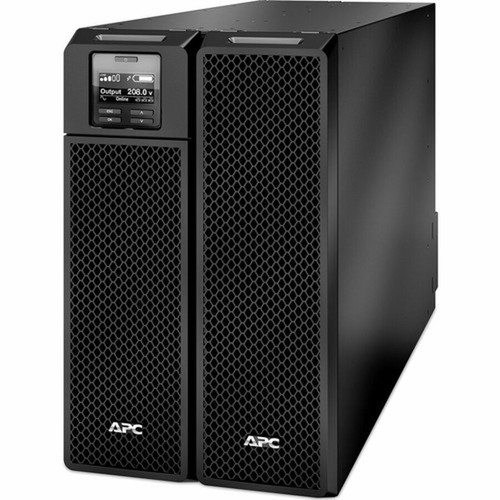

APC by Schneider Electric SRT10KXLT30 APC Smart-UPS 10kVA/10kW On-Line UPS - 208V - Tower - 6x L6-30R Outlets - Network Card+SmartSlot
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This single-phase online UPS operates with a 10 kVA/10 kW load capacity, accepting input voltages of 208 V AC or 240 V AC and delivering the same stable output. The double-conversion topology eliminates power disturbances by continuously converting AC to DC and back to AC, providing isolation from grid anomalies. The pure sine wave output ensures compatibility with sensitive electronic loads, including power factor corrected (PFC) power supplies.
The unit features six NEMA L6-30R battery and surge-protected outlets, plus a hard-wire input for direct connection. Surge energy protection is rated at 480 joules. Battery chemistry is lead-acid, with a typical recharge time of 1.5 hours. The integrated temperature probe enables environmental monitoring for optimized battery health and lifespan.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Number of Battery & Surge Outlets, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Smart-UPS SRT10KXLT30 combines industrial-grade power protection with advanced manageability, making it a cornerstone for uptime-critical infrastructure. Its design prioritizes reliability, scalability, and ease of integration into modern IT ecosystems.
Advanced Network Management
The embedded Web/SNMP management card includes a 1-year Secure Network Management Card subscription, enabling remote monitoring, configuration, and graceful shutdown of physical servers, virtual machines, and HCI clusters via network protocols.
- Network-based UPS monitoring
- Graceful shutdown capabilities
- Virtual machine and HCI cluster support
Scalable Runtime
Support for up to 10 external APC SRT192BP2 battery packs allows runtime extension to meet specific backup requirements, providing flexibility for longer outages or higher load scenarios.
- Up to 10 external battery packs
- Extended runtime options
- Modular scalability
Rack/Tower Flexibility
The convertible design supports both tower placement and rack mounting (using optional SRTRK2 or SRTRK3 rail kits), adapting to space constraints and installation preferences in diverse environments.
- Tower or rack deployment
- Optional rail kits
- Space-efficient footprint
Deployment / Use Cases
This 10kVA UPS is engineered for environments where power quality and continuity are non-negotiable. Its robust capacity and pure sine wave output make it suitable for protecting high-density server racks, storage area networks (SAN), network operation centers, and industrial control systems.
In healthcare settings, the unit safeguards diagnostic equipment, lab analyzers, and patient monitoring systems from power disturbances. For voice/data networks, it ensures uninterrupted operation of VoIP systems, routers, switches, and communication servers. Light industrial applications include CNC machinery, process controllers, and automation systems where clean, stable power is essential for precision and safety.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Number of Battery & Surge Outlets, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The tower-form UPS features a black finish and measures 17.01 inches in height, 10.35 inches in width, and 28.15 inches in depth, with an approximate weight of 245.99 pounds. Its rack-mountable design allows integration into standard 19-inch racks using optional rails, while the tower configuration provides stability for floor placement. The compact footprint relative to its power capacity makes it suitable for space-constrained data centers or equipment rooms.
- Width
- 10.35" (263 mm)
- Depth
- 28.15" (715 mm)
- Height
- 17.01" (432 mm)
- Weight
- 245.99 lb (111579.19 g)
What's in the Box
The package includes the Smart-UPS SRT 10000VA 208V L630 unit, a CD with software and documentation, installation guide, temperature probe, USB cable, warranty card, and the Web/SNMP management card.
Highlights
- 10kVA/10kW double-conversion on-line pure sine wave UPS
- 208V/240V input and output with zero transfer time
- 6 NEMA L6-30R battery and surge-protected outlets
- Embedded Web/SNMP management card with 1-year subscription
- Rack/tower convertible design (rails sold separately)
- Supports up to 10 external battery packs for extended runtime
- SmartSlot for additional communication or monitoring options
- Energy Star certified and RoHS compliant
- 3-year UPS warranty with 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT10KXLT30 |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Model | SRT10KXLT30 |
| Product Name | Smart-UPS SRT 10000VA 208V L630 |
| Packaged Quantity | 1 / Pallet |
| Product Type | Online UPS |
| Technical Information | |
| Receptacle Type | Hard Wire 3-wire (2PH + G),NEMA L6-30R |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G),6 x NEMA L6-30R |
| Number of Battery & Surge Outlets | 6 |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 10 kVA |
| Input Voltage | 208 V AC,240 V AC |
| Output Voltage | 208 V AC,240 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 1.50 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Height | 17.01" (432 mm) |
| Width | 10.35" (263 mm) |
| Depth | 28.15" (715 mm) |
| Weight (Approximate) | 245.99 lb (111579.19 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 10000VA 208V L630 CD with software Documentation CD Installation guide Temperature probe USB cable Warranty card Web/SNMP management card |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
The APC Smart-UPS SRT10KXLT30 has a load capacity of 10 kVA (10,000 VA) and 10 kW. This double-conversion on-line UPS is designed to support critical equipment such as servers, storage, and network gear with pure sine wave output and zero transfer time.
What types of outlets does this UPS have?
This unit provides six NEMA L6-30R battery and surge-protected outlets for connecting equipment. It also includes a hard-wire input for direct electrical connection, suitable for permanent installations in data centers or industrial settings.
Can this UPS be mounted in a rack?
Yes, the Smart-UPS SRT10KXLT30 is rack/tower convertible. It can be installed as a standalone tower or mounted in a standard 19-inch rack using optional APC rail kits (SRTRK2 or SRTRK3, sold separately), offering flexibility for different deployment environments.
What network management features are included?
The UPS comes with an embedded Web/SNMP management card pre-installed, which includes a 1-year Secure Network Management Card subscription. This enables remote monitoring, configuration, and graceful shutdown of connected devices over the network, supporting physical servers, virtual machines, and HCI clusters.
How can I extend the runtime of this UPS?
Runtime can be extended by adding up to 10 external APC SRT192BP2 battery packs. This modular scalability allows you to tailor backup duration to your specific needs, providing longer protection during power outages for critical loads.
What is the warranty coverage for this UPS?
The APC Smart-UPS SRT10KXLT30 comes with a 3-year limited warranty for the UPS unit and a 2-year warranty for the internal batteries. This coverage ensures reliable performance and support for your power protection investment.
What power capacity is listed for this UPS?
The listed power specification is 10 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
