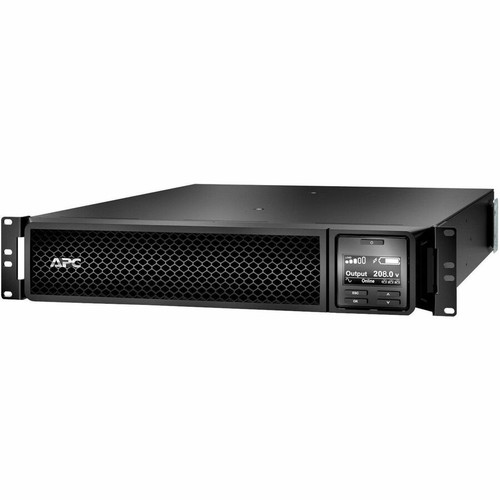

APC by Schneider Electric SRT3000RMXLTUS Smart-UPS On-Line 3kVA/2. 7kW 2U Rack/Tower UPS - 208V - 3 Outlets - Sine Wave - Rail Kit - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS continuously converts incoming AC power to DC and back to AC, isolating connected equipment from power anomalies. It delivers a pure sine wave output at 208V AC, matching input voltage to eliminate transfer delays and provide seamless power protection.
The unit's 3 kVA (2.7 kW) capacity supports substantial loads, while its 340 J surge energy rating offers robust protection against voltage spikes. Battery management includes user-replaceable lead-acid batteries with a typical recharge time of three hours. The SmartSlot enables integration of network management cards for remote monitoring and control via protocols like SNMP or web interface.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Smart-UPS On-Line SRT series combines industrial-grade power protection with deployment flexibility, making it a versatile solution for demanding environments.
Clean Power Delivery
Double-conversion technology ensures output power is always clean and stable, free from sags, surges, or frequency variations that can disrupt sensitive electronics.
- Pure sine wave output
- Zero transfer time
- Isolation from grid anomalies
Scalable Runtime
Support for up to ten external battery packs (SRT96RMBP) allows runtime extension to meet specific backup requirements, ideal for extended outages or critical processes.
- External battery expansion
- Modular runtime scaling
- Compatible with APC battery packs
Management Ready
The integrated SmartSlot accepts management cards for remote monitoring, automated shutdowns, and environmental sensing, enabling proactive power management.
- SmartSlot for add-on cards
- Remote monitoring capabilities
- Graceful shutdown support
Deployment / Use Cases
This UPS is tailored for environments where power quality and uptime are critical. Its 3kVA capacity and 208V configuration suit medium-density server racks, network closets, and industrial control systems.
In data centers, it protects virtualization hosts, storage arrays, and converged infrastructure. For medical or laboratory settings, it ensures uninterrupted operation of diagnostic equipment and monitoring systems. Light industrial applications benefit from its robust surge protection and ability to handle motor loads or variable frequency drives.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Server & Storage Protection
Ideal for rackmounted servers, NAS devices, and SAN arrays, providing runtime for graceful shutdowns during extended outages.
Network & VoIP Infrastructure
Supports voice/data network equipment, switches, and routers, maintaining connectivity during power disturbances.
Physical Profile
The black 2U chassis measures 3.35" high, 17.01" wide, and 25" deep, fitting standard 19-inch racks. At 69 pounds, it is manageable for installation while offering substantial power density. The included rail kit simplifies mounting and allows tower placement where rack space is unavailable. Front-panel displays and controls provide at-a-glance status and configuration access.
- Width
- 17.01" (432.05 mm)
- Depth
- 25" (635 mm)
- Height
- 3.35" (85.09 mm)
- Weight
- 69 lb (31297.87 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes the UPS unit and essential accessories for immediate deployment.
Highlights
- 3kVA/2.7kW double-conversion online UPS with pure sine wave output
- 2U rackmount design convertible to tower with included rail kit
- 208V input and output voltage with three NEMA L6-20R/L6-30R outlets
- Zero transfer time ensures continuous power for critical devices
- Supports up to 10 external battery packs (SRT96RMBP) for extended runtime
- SmartSlot for network management card integration
- User-replaceable lead-acid batteries with 3-hour typical recharge
- TAA compliant and ENERGY STAR 2.0 certified
- 3-year UPS warranty with 2-year battery coverage
- Ideal for servers, storage, networks, medical labs, and light industrial applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT3000RMXLTUS |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Series | SRT |
| Product Name | Smart-UPS On-Line SRT 3000VA Rack/Tower UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | NEMA L6-20R,NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-20R |
| Number of Battery & Surge Outlets | 3 |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Application/Usage | IT,Network,Business,Electronic,Server,Storage,Voice/Data Network,Medical Laboratory,Light Industrial Application,Virtual Machine,Hyperconverged Infrastructure (HCI) |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Management | |
| Network Management | SmartSlot |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" (85.09 mm) |
| Width | 17.01" (432.05 mm) |
| Depth | 25" (635 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 69 lb (31297.87 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS On-Line SRT 3000VA Rack/Tower UPS CD with software |
| Energy Star | Yes |
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS On-Line delivers 3 kVA (3000 VA) and 2.7 kW of power capacity. It supports single-phase 208V input and output, making it suitable for medium-density server racks, network equipment, and industrial devices requiring reliable backup power.
Can this UPS be used in both rack and tower configurations?
Yes, the unit is designed as rack/tower convertible. It includes a rail kit that allows installation in a standard 19-inch rack (occupying 2U of height) or can be placed as a standalone tower. This flexibility accommodates environments where rack space is limited or where tower deployment is preferred.
What type of power output does this UPS provide?
It provides pure sine wave output through double-conversion online topology. This means incoming AC power is continuously converted to DC and back to AC, ensuring clean, stable power with zero transfer time. This is essential for sensitive electronics like servers, medical equipment, and variable frequency drives.
How many outlets does this UPS have and what types?

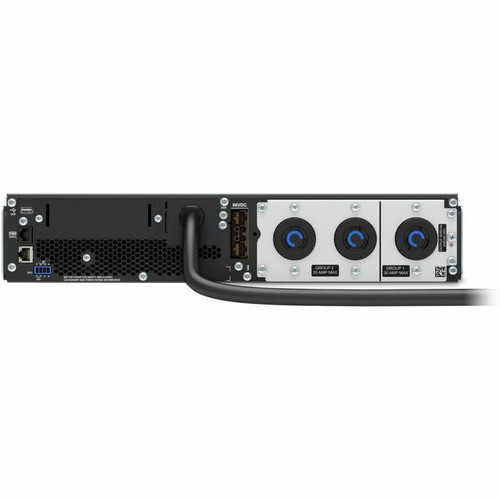

The UPS has three battery and surge-protected outlets: two NEMA L6-20R receptacles and one NEMA L6-30R receptacle. These are designed for 208V equipment and are commonly used in data center and industrial environments. The power cord is a NEMA L6-20P plug with a 10-foot length.
Can the runtime be extended on this UPS?
Yes, runtime can be extended by connecting up to ten external battery packs, specifically the APC SRT96RMBP model. This modular approach allows you to scale backup time based on your needs, ideal for critical applications requiring longer runtime during power outages.
What management features are available?
The UPS includes a SmartSlot for adding network management cards, enabling remote monitoring, configuration, and graceful shutdowns via serial or USB connections. Compatible software like PowerChute Serial Shutdown allows automated shutdown sequences for protected equipment, enhancing reliability and reducing downtime risks.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 3, which helps buyers understand how many connected devices it can support in its intended deployment.
