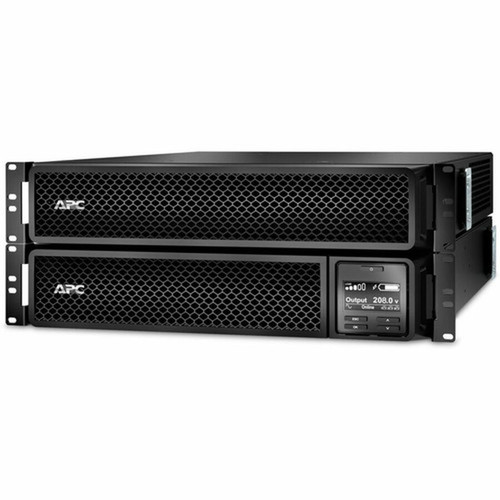

APC by Schneider Electric SRT3000RMXLT-5KTF Smart-UPS On-Line 3kVA/2. 7kW 4U Rackmount UPS - 208V Input - 120V/208V Output - 14 Outlets - Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS On-Line model employs double-conversion technology that continuously converts incoming AC power to DC and then back to clean AC power, providing complete isolation from utility power problems. The 3 kVA/2.7 kW capacity supports substantial loads, while the 340 joule surge energy rating offers robust protection against voltage spikes.
The electrical configuration includes 208V AC input with both 120V and 208V AC output options, accommodating diverse equipment requirements. Single-phase operation simplifies installation, and the 10-foot power cord provides flexibility in rack placement. The lead-acid battery chemistry delivers reliable backup performance with a typical 3-hour recharge time after use.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This UPS delivers enterprise-grade power protection with features designed for reliability and manageability in demanding environments. The combination of high capacity, flexible voltage options, and robust construction makes it suitable for protecting critical infrastructure.
Zero Transfer Time Protection
Double-conversion technology eliminates transfer time during power events, providing seamless protection for sensitive equipment that cannot tolerate even momentary power interruptions.
- Continuous power conditioning
- No switching delays
- Complete isolation from utility issues
Flexible Deployment Options
The included rail kit enables both rackmount and tower configurations, while the 208V to 120V step-down transformer supports mixed voltage environments without additional equipment.
- Rack/tower convertible
- Integrated voltage transformation
- Simplified installation
Scalable Runtime
Support for up to 10 external battery packs (SRT96RMBP) allows for extended runtime requirements, enabling customization based on specific backup needs and facility requirements.
- External battery expansion
- Runtime customization
- Future-proof design
Deployment / Use Cases
This 3kVA Smart-UPS is engineered for protecting critical infrastructure in data centers, server rooms, and industrial environments. Its robust power capacity and pure sine wave output make it suitable for a wide range of sensitive equipment that demands clean, uninterrupted power.
The rackmount design with 4U footprint optimizes space utilization in standard server racks, while the included rail kit simplifies installation in both new and existing deployments. The 14-outlet configuration supports multiple devices, and the mixed voltage output accommodates equipment with different power requirements within the same protected environment.
Server & Storage Protection
Ideal for protecting rackmount servers, storage arrays, and network equipment in data centers and server rooms where uptime is critical and space is at a premium.
Voice/Data Network Infrastructure
Provides reliable backup for telecommunications equipment, network switches, and VoIP systems that require clean power and zero transfer time protection.
Physical Profile
The UPS features a standard 4U rackmount form factor measuring 6.69" high, 17.01" wide, and 25" deep, designed to fit efficiently in standard 19-inch server racks. The black finish provides a professional appearance that blends with typical data center equipment. At 164 pounds, the unit is substantial but manageable with proper rack installation equipment and procedures.
- Width
- 17.01" (432 mm)
- Depth
- 25" (635 mm)
- Height
- 6.69" (170 mm)
- Weight
- 164 lb (74389.15 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for installation and operation, ensuring a complete solution ready for deployment.
Highlights
- 3kVA/2.7kW double-conversion online UPS with pure sine wave output
- 4U rackmount form factor with included rail kit for rack/tower convertible installation
- 208V input with 120V/208V output options via integrated step-down transformer
- 14 total outlets: 12 x NEMA 5-20R and 2 x NEMA L6-20R
- Zero transfer time protection for critical and sensitive equipment
- Supports up to 10 external battery packs (SRT96RMBP) for extended runtime
- Includes PowerChute Serial Edition software for graceful shutdown management
- Energy Star certified and RoHS compliant for environmental responsibility
- 3-year UPS warranty with 2-year battery warranty
- 10-foot power cord for flexible rack placement
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT3000RMXLT-5KTF |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS SRT 3000VA RM 208V to 120V 2U Step-Down Transformer |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | NEMA L6-20P |
| Receptacle Detail | 12 x NEMA 5-20R,2 x NEMA L6-20R |
| Number of Battery & Surge Outlets | 14 |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC,208 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 6.69" (170 mm) |
| Width | 17.01" (432 mm) |
| Depth | 25" (635 mm) |
| Rack Height | 4U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 164 lb (74389.15 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 3000VA RM 208V to 120V 2U Step-Down Transformer CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails USB cable Warranty card |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS has a 3 kVA (3000 VA) capacity with a 2.7 kW watt rating. This double-conversion online UPS can support substantial loads while providing clean sine wave output, making it suitable for protecting multiple servers, storage devices, or network equipment in a rack environment.
What voltage inputs and outputs does this UPS support?
The UPS accepts 208V AC input and provides both 120V and 208V AC output options. The integrated 208V to 120V step-down transformer enables compatibility with equipment requiring different voltage levels, allowing you to protect mixed-voltage devices within the same rack or enclosure.
How many outlets does this UPS have and what types?
This unit features 14 total outlets with a combination of receptacle types. There are 12 NEMA 5-20R outlets and 2 NEMA L6-20R outlets, providing flexibility for connecting various equipment types. The cord length is 10 feet (3.05 meters) for convenient rack placement.
What is the backup runtime at full load?
At full 3 kVA load, the UPS provides approximately 4 minutes of backup runtime from its internal lead-acid batteries. The typical recharge time after a complete discharge is 3 hours. For extended runtime requirements, the system supports connection of up to 10 external battery packs (SRT96RMBP).
Is this UPS rackmount or tower compatible?
This is a 4U rackmount UPS that includes a complete rail kit for both rackmount and tower deployment. The package contains rack mounting brackets, hardware, and support rails, making it convertible between rack and tower configurations based on your installation requirements and space constraints.
What management and shutdown capabilities are included?
The UPS includes PowerChute Serial Edition software for graceful shutdown of connected equipment. Management is available via serial or USB connections, allowing automated shutdown procedures during extended power outages to protect data and equipment integrity.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 14, which helps buyers understand how many connected devices it can support in its intended deployment.
