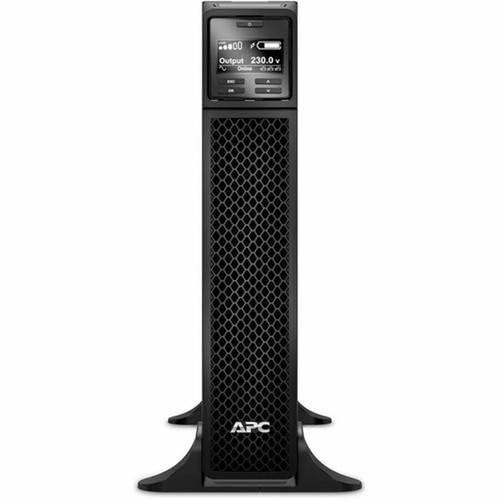

APC by Schneider Electric SRT3000XLW-IEC APC Smart-UPS On-Line 3kVA/2. 7kW Tower UPS - 208V/230V - 10 Outlets - Rack-Mountable - Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS continuously converts incoming AC power to DC and back to clean AC, eliminating power disturbances and providing isolation from raw utility power. The pure sine wave output ensures compatibility with active PFC power supplies found in modern servers and network equipment.
The unit operates on single-phase power with a 7.9 ft (2.40 m) input cord terminated with a British BS1363A plug. It offers 340 joules of surge protection and maintains output voltage regulation within tight tolerances regardless of input voltage fluctuations.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Smart-UPS SRT series provides enterprise-grade power protection with the reliability and manageability expected in critical infrastructure deployments. Its double-conversion topology ensures the highest level of power conditioning available in a UPS.
Extended Runtime Capability
Supports connection of up to 10 external battery packs (SRT96RMBP) for significantly extended runtime beyond the standard 4-minute full-load backup, allowing for longer ride-through during extended outages.
- External battery expansion
- Scalable runtime
- Modular design
Intelligent Management
Includes PowerChute Serial Edition software for graceful shutdown of connected equipment via serial or USB cables. The SmartSlot allows for additional management card installation for enhanced monitoring and control.
- Graceful shutdown capability
- Serial/USB connectivity
- SmartSlot expansion
Deployment / Use Cases
This 3kVA UPS is ideally suited for protecting critical infrastructure where power quality and reliability are non-negotiable. Its robust design and pure sine wave output make it appropriate for sensitive electronic equipment across multiple environments.
In server rooms and data centers, it provides backup power for rack-mounted servers, storage systems, and network switches. For voice/data networks, it ensures uninterrupted operation of VoIP systems, routers, and switches. In medical and light industrial applications, it protects diagnostic equipment, lab instruments, and control systems from power disturbances.
Server Room Protection
Provides clean, uninterrupted power for rack-mounted servers, storage arrays, and network equipment in data center and server room environments.
Network Infrastructure
Ensures continuous operation of voice/data networks, VoIP systems, and telecommunications equipment during power disturbances and outages.
Physical Profile
The UPS features a sleek black enclosure measuring 17.01" (432 mm) in height, 3.35" (85 mm) in width, and 25" (635 mm) in depth, with a weight of approximately 69 lb (31297.87 g). Designed for rack-mount installation, it includes removable support feet for tower deployment when not rack-mounted. The compact 3U-height form factor optimizes rack space utilization while providing substantial power capacity.
- Width
- 3.35" (85 mm)
- Depth
- 25" (635 mm)
- Height
- 17.01" (432 mm)
- Weight
- 69 lb (31297.87 g)
- Length
- 7.9 ft (2.40 m)
What's in the Box
The package includes all necessary components for installation and operation of the UPS system.
Highlights
- 3kVA/2.7kW double-conversion online UPS with pure sine wave output
- Zero transfer time for uninterrupted power to critical equipment
- Rack/Tower convertible design (rail kits sold separately)
- 10 IEC outlets: 6x C13 and 2x C19 plus 2x IEC jumper
- 208V/230V input and output voltage compatibility
- Supports up to 10 external battery packs for extended runtime
- Includes PowerChute Serial Edition for graceful shutdown
- 3-year UPS warranty with 2-year battery warranty
- RoHS compliant and environmentally friendly design
- SmartSlot for management card expansion
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT3000XLW-IEC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS SRT 3000VA 208/230V IEC |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | British BS1363A |
| Receptacle Type | IEC 60320 C20,Schuko CEE 7/EU1-16P |
| Receptacle Detail | 2 x IEC 60320 C19,2 x IEC Jumper,6 x IEC 60320 C13 |
| Number of Battery & Surge Outlets | 10 |
| Cord Length | 7.9 ft (2.40 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 208 V AC,230 V AC |
| Output Voltage | 208 V AC,230 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 3.35" (85 mm) |
| Depth | 25" (635 mm) |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 69 lb (31297.87 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 3000VA 208/230V IEC CD with software Documentation CD Installation guide Removable support feet Smart UPS signalling RS-232 cable USB cable |
| Software Included | Powerchute Serial Edition |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This APC Smart-UPS On-Line has a 3 kVA (3000 VA) capacity with a 2.7 kW watt rating. It operates at 208V/230V input and output voltages, making it suitable for protecting substantial server and network loads in commercial and light industrial environments.
How long does the battery backup last at full load?
At full load (2.7 kW), the internal battery provides approximately 4 minutes of runtime. This allows sufficient time for connected equipment to perform graceful shutdowns via the included PowerChute software or for backup generators to start in facilities with emergency power systems.
Can I extend the runtime of this UPS?
Yes, this UPS supports connection of up to 10 external battery packs (model SRT96RMBP) for significantly extended runtime. This modular expansion capability allows you to customize backup duration based on your specific requirements without replacing the entire UPS unit.
What types of outlets does this UPS have?
The unit features 10 IEC outlets total: 6 IEC 60320 C13 outlets, 2 IEC 60320 C19 outlets, and 2 IEC jumper connections. This outlet configuration supports a mix of server, storage, and networking equipment commonly found in rack environments, with C19 outlets suitable for higher-power devices.
Is this UPS rack-mountable or tower-only?
This UPS is designed as rack-mountable with a convertible form factor. It comes ready for rack installation and includes removable support feet for tower deployment. For rack mounting, optional rail kits (SRTRK4 or SRTRK3) are available separately to facilitate installation in standard server racks.
What management capabilities does this UPS include?
The UPS includes PowerChute Serial Edition software for graceful shutdown of connected equipment via the included serial or USB cables. It also features a SmartSlot for installing optional management cards that provide advanced monitoring, network connectivity, and environmental monitoring capabilities for comprehensive power management.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 10, which helps buyers understand how many connected devices it can support in its intended deployment.
