APC by Schneider Electric SRT5KRMXLTUS APC Smart-UPS SRT 5kVA Rackmount 3U 208V Double-Conversion Online UPS with Network Card & Rails
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS SRT model operates on double-conversion online topology, continuously converting incoming AC power to DC and back to clean AC output. This eliminates transfer time and provides complete isolation from utility power anomalies. The unit accepts a wide input voltage range from 160V to 275V AC, making it suitable for environments with unstable power conditions.
The embedded network management card enables remote monitoring and control via web, SNMP, or Telnet interfaces, while the SmartSlot accommodates additional communication or environmental monitoring cards. Four NEMA outlets (2x L6-20R and 2x L6-30R) provide flexible power distribution for rack-mounted equipment. With a surge energy rating of 480 joules, the unit offers robust protection against power surges and spikes.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
Zero Transfer Time Protection
Double-conversion online topology ensures continuous clean power with no switching delay, critical for sensitive servers, storage arrays, and network equipment.
- Eliminates power interruptions during utility fluctuations
- Provides complete isolation from grid anomalies
- Maintains consistent sine wave output
Advanced Management Capabilities
Factory-installed network card with 1-year secure subscription enables comprehensive remote monitoring and graceful shutdown of physical and virtual infrastructure.
- Web/SNMP/Telnet management interfaces
- Supports graceful shutdown of servers and VMs
- SmartSlot for additional communication options
Scalable Runtime Design

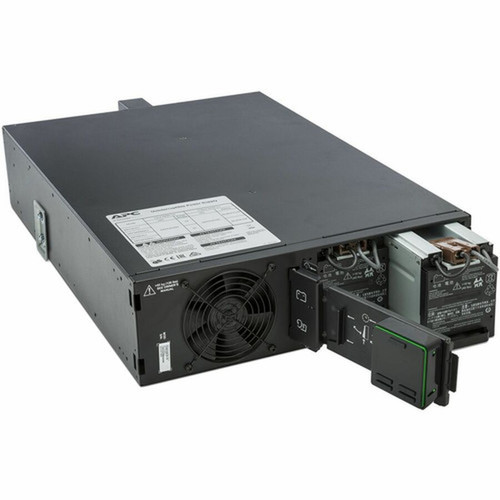

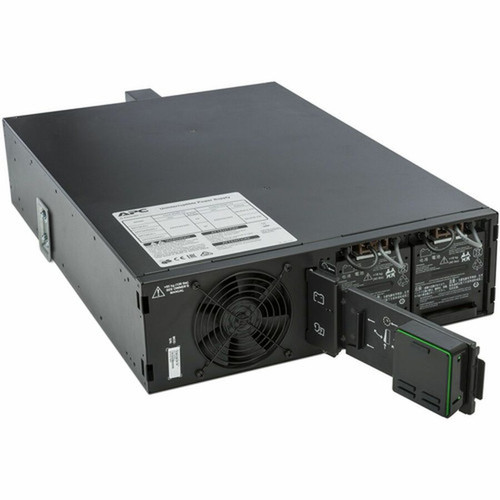

Hot-swappable battery design allows maintenance without downtime, while support for up to 10 external battery packs enables extended runtime for mission-critical applications.
- Hot-swappable batteries for continuous operation
- External battery pack support for extended runtime
- Typical recharge time of 1.5 hours
Deployment / Use Cases
The Smart-UPS SRT 5kVA is engineered for environments where power quality and availability are non-negotiable. Its double-conversion online design makes it ideal for protecting sensitive electronic equipment that cannot tolerate even momentary power interruptions.
Primary deployment scenarios include server rooms, data centers, network closets, medical laboratories, and light industrial applications. The unit effectively protects servers, storage systems, network switches, routers, security systems, and other critical infrastructure components. The rack/tower convertible design with included rails provides installation flexibility for both dedicated rack environments and standalone tower configurations.
Data Center & Server Room Protection
Provides clean, continuous power for rack-mounted servers, storage arrays, and network equipment in centralized IT environments.
Network Infrastructure Support
Protects voice/data networks, switches, routers, and security systems from power anomalies that could cause network downtime.

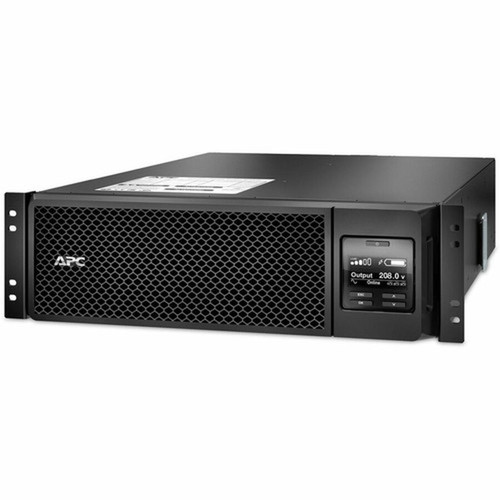

Physical Profile
This 3U rackmount UPS features a standard 19-inch rack width with dimensions of 5.12" (130 mm) height, 17.01" (432 mm) width, and 28.31" (719 mm) depth. The black finish matches standard rack equipment aesthetics. At 123 pounds, the unit requires proper rack mounting and consideration of weight distribution in multi-unit installations.
The included rail kit supports both rack-mount and tower deployment configurations, providing installation flexibility. The 10-foot power cord with NEMA L6-30P connector accommodates typical rack-to-power-source distances in data center environments.
- Width
- 17.01" (432 mm)
- Depth
- 28.31" (719 mm)
- Height
- 5.12" (130 mm)
- Weight
- 123 lb (55791.86 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for immediate deployment and operation of the UPS system.
Highlights
- 5.4kVA/4.25kW double-conversion online UPS with pure sine wave output
- 3U rackmount form factor with included rail kit for rack/tower deployment
- 208V input and output with wide 160-275V AC input range
- Four NEMA outlets: 2x L6-20R and 2x L6-30R for flexible power distribution
- Embedded network management card with 1-year secure subscription included
- Hot-swappable batteries for maintenance without downtime
- Supports up to 10 external battery packs for extended runtime
- Double-conversion topology provides zero transfer time protection
- Typical battery recharge time of 1.5 hours
- 3-year UPS warranty with 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT5KRMXLTUS |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS SRT |
| Product Model | SRT5KRMXLTUS |
| Product Name | Smart-UPS SRT 5000VA RM 208V |
| Packaged Quantity | 1 Each |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30P |
| Receptacle Detail | 2 x NEMA L6-20R,2 x NEMA L6-30R |
| Number of Battery & Surge Outlets | 4 |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Application/Usage | Server,Router,Network Switch,Network Hub,Security System,Data Center,Computer,Network Device |
| Power Description | |
| Load Capacity (VA) | 5.40 kVA |
| Load Capacity (Watt) | 4.25 kW |
| Input Voltage | 208 V AC |
| Input Voltage Range | 160 V AC - 275 V AC |
| Output Voltage | 208 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4.40 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 1.50 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 5.12" (130 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.31" (719 mm) |
| Rack Height | 3U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 123 lb (55791.86 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 5000VA RM 208V Documentation CD Rack mounting brackets Rack mounting hardware Rack mounting support rails USB cable User manual Warranty card Web/SNMP management card |
| Energy Star | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS SRT unit?
This Smart-UPS SRT model delivers 5.4kVA (5,400 VA) of apparent power and 4.25kW (4,250 watts) of real power capacity. This double-conversion online UPS can support substantial server, storage, and network equipment loads in rack environments while providing clean sine wave output with zero transfer time.
What input and output voltages does this UPS support?
The unit is designed for 208V AC systems, with both input and output operating at 208V AC. It accepts a wide input voltage range from 160V to 275V AC, making it suitable for environments with unstable utility power. The pure sine wave output ensures compatibility with sensitive electronic equipment.
How many outlets does this rackmount UPS provide and what types?
This Smart-UPS SRT includes four NEMA outlets: two L6-20R receptacles and two L6-30R receptacles. These outlets provide flexible power distribution for rack-mounted equipment with different plug requirements. All outlets deliver battery-backed and surge-protected power.
What is the runtime at full load and how can it be extended?
At full 5.4kVA/4.25kW load, the internal batteries provide approximately 4.4 minutes of runtime. Runtime can be significantly extended by adding external battery packs—this model supports up to 10 APC SRT192RMBPUS external battery packs for extended backup time based on specific load requirements.
What management capabilities are included with this UPS?
The unit comes with a factory-installed network management card that provides web, SNMP, and Telnet interfaces for remote monitoring and control. A 1-year secure subscription is included. The SmartSlot allows for additional communication cards, and the system supports graceful shutdown of physical servers, virtual machines, and hyper-converged infrastructure clusters.
Is this UPS rack-mountable and what are its physical dimensions?
Yes, this is a 3U rackmount UPS measuring 5.12" (130 mm) high, 17.01" (432 mm) wide, and 28.31" (719 mm) deep. It weighs 123 pounds and includes a complete rail kit for both rack and tower deployment. The standard 19-inch rack width ensures compatibility with most server rack configurations.
What power capacity is listed for this UPS?
The listed power specification is 5.40 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 4, which helps buyers understand how many connected devices it can support in its intended deployment.
