APC by Schneider Electric SRT6KXLT APC Smart-UPS On-Line - 6kVA/6kW Tower UPS - 208V - 5x NEMA Outlets - Network Card - Extended Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS On-Line model employs double-conversion technology, continuously converting AC input to DC and back to AC, providing complete isolation from power anomalies. It accepts 208V or 240V AC input and delivers the same voltage output, with a sine wave waveform ideal for servers, networking gear, and medical equipment.

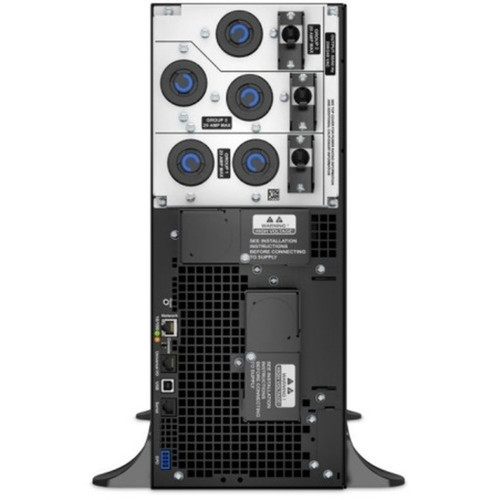

The unit includes five power outlets: two NEMA L6-20R and three NEMA L6-30R receptacles, plus one hardwired connection for flexible installation. Surge protection is rated at 480 joules, and the lead-acid battery provides two minutes of runtime at full load, with a typical recharge time of 1.5 hours.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Number of Battery & Surge Outlets, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SRT6KXLT combines high-capacity power protection with advanced management features, offering zero-transfer-time operation that eliminates disruptions during power events. Its rack/tower convertible design provides deployment flexibility, while the included network card enables centralized monitoring and graceful shutdown of connected systems.
Clean Power Delivery
Double-conversion online topology ensures output power is always clean and stable, protecting sensitive electronics from sags, surges, and harmonics.
- Zero transfer time
- Pure sine wave output
- Isolated output from input anomalies
Extended Runtime Capability
Supports connection of up to ten external battery packs (SRT192BP) for significantly longer backup times, adaptable to specific runtime requirements.
- Scalable battery expansion
- External pack compatibility
- Flexible runtime planning
Deployment / Use Cases
This UPS is engineered for environments where power continuity is non-negotiable. Its 6kVA capacity and robust outlet configuration make it ideal for server rooms, network closets, and industrial control systems that demand reliable backup power.
Common applications include protecting rack-mounted servers, storage arrays, voice/data network equipment, medical lab instruments, and light industrial machinery. The network management capabilities allow integration into IT infrastructure management systems for automated shutdown procedures during extended outages.
Data Center & Server Room
Provides backup power for critical servers and networking equipment, with network management for remote monitoring and graceful shutdown.
- Server protection
- Network gear backup
- Virtual machine shutdown support
Industrial & Medical
Safeguards sensitive instrumentation and control systems in medical labs and light industrial settings where power quality is crucial.
- Medical equipment compatibility
- Industrial control backup
- Clean power for sensitive loads
Physical Profile

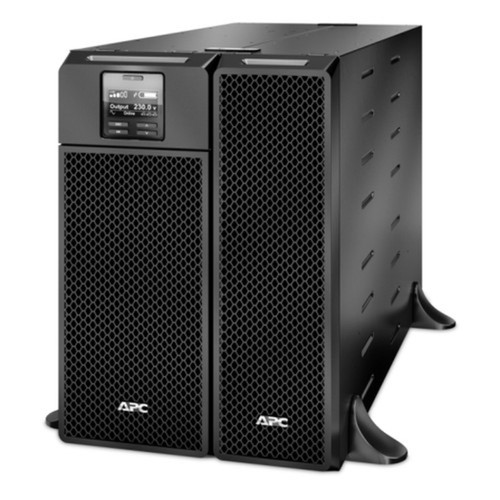

The unit features a black tower design that is rack-mountable with optional rail kits (SRTRK2 or SRTRK3 sold separately). Its dimensions of 17.01" H × 6.85" W × 28.31" D provide a compact footprint for rack installation, while removable support feet allow stable tower placement. Weighing approximately 135 pounds, it requires proper handling during installation.
- Width
- 6.85" (174 mm)
- Depth
- 28.31" (719 mm)
- Height
- 17.01" (432 mm)
- Weight
- 134.99 lb (61230.43 g)
What's in the Box
The package includes all necessary components for setup and operation, along with comprehensive documentation and management tools.
Highlights
- 6kVA/6kW double-conversion online UPS with pure sine wave output
- Tower design rack-mountable with optional rail kits (sold separately)
- 208V/240V input and output with five NEMA outlets (L6-20R and L6-30R)
- Embedded network management card for remote monitoring and control
- Supports up to ten external battery packs (SRT192BP) for extended runtime
- Zero transfer time ensures continuous power for critical devices
- SmartSlot for additional communication and expansion modules
- Energy Star certified and RoHS compliant
- Three-year UPS warranty with two-year battery coverage
- Includes one-year secure network management card subscription
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT6KXLT |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS SRT 6000VA 208V |
| Packaged Quantity | 1 Each |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | NEMA L6-20R,NEMA L6-30R |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G),2 x NEMA L6-20R,3 x NEMA L6-30R |
| Number of Battery & Surge Outlets | 5 |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Input Voltage | 208 V AC,240 V AC |
| Output Voltage | 208 V AC,240 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 6.85" (174 mm) |
| Depth | 28.31" (719 mm) |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 134.99 lb (61230.43 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 6000VA 208V CD with software Documentation CD Installation guide Removable support feet Temperature probe USB cable User manual Warranty card Web/SNMP management card |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This Smart-UPS On-Line model provides 6 kVA (6000 VA) and 6 kW of power capacity. It is designed to support critical loads such as servers, storage systems, and network equipment requiring reliable backup power during outages or fluctuations.
How long does the battery last at full load?
At full 6 kW load, the internal battery provides approximately 2 minutes of runtime. For extended backup times, the UPS supports connection of up to ten external battery packs (SRT192BP), allowing runtime to be scaled according to specific application requirements.
What types of outlets does this UPS have?
The unit includes five power outlets: two NEMA L6-20R receptacles, three NEMA L6-30R receptacles, and one hardwired 3-wire connection. This configuration supports a mix of equipment with different plug types, commonly used in server racks and industrial settings.
Can this UPS be mounted in a rack?
Yes, the tower-form unit is rack-mountable with optional rail kits (SRTRK2 or SRTRK3 sold separately). Its dimensions of 17.01" H × 6.85" W × 28.31" D are designed for standard rack installation, while removable support feet allow use as a standalone tower.
What management features are included?
An embedded network management card is included, providing web/SNMP monitoring and management capabilities. This allows remote monitoring of power status, configuration of shutdown sequences for servers and virtual machines, and integration with network management systems. A one-year secure subscription is included.
What is the warranty coverage for this UPS?
The UPS is covered by a three-year limited warranty, while the internal battery has a two-year warranty. This comprehensive coverage ensures protection against defects in materials and workmanship, supporting reliable operation in critical power backup applications.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 5, which helps buyers understand how many connected devices it can support in its intended deployment.
