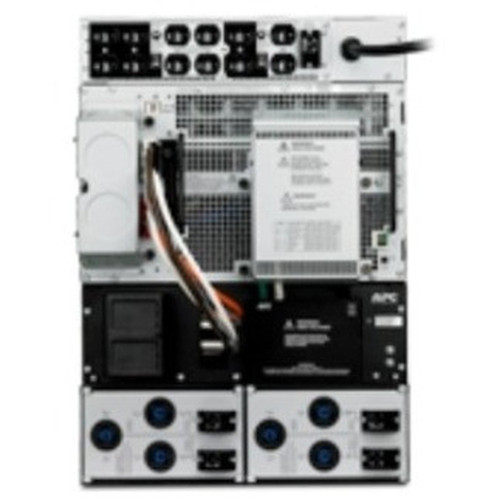

APC by Schneider Electric SURT15KRMXLT-TF5 Smart-UPS 15kVA 208V Rackmount UPS - 14U - 17 Outlets - LCD - Double-Conversion
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS model employs double-conversion online topology, which continuously converts incoming AC power to DC and back to clean AC, providing complete isolation from utility power anomalies. The 15 kVA capacity supports substantial critical loads, with input accepting 208V or 240V AC and output delivering 120V, 208V, or 240V AC as needed.
The electrical design includes single-phase operation with 60Hz input and output frequency synchronization. Overload protection safeguards connected equipment, while the pure sine wave output ensures compatibility with sensitive electronics including servers, networking gear, and storage systems.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This UPS delivers enterprise-grade power protection with the density and management features needed for modern data center and server room environments. The combination of high capacity, flexible voltage support, and comprehensive outlet configuration addresses diverse power distribution requirements in a single rack-optimized unit.
High-Density Power Distribution
With 17 outlets including multiple NEMA types and hardwired capability, this UPS can power a complete rack of equipment without requiring additional PDUs, simplifying cable management and reducing points of failure.
Infrastructure-Grade Monitoring
The LCD display provides immediate visual status, while SNMP and serial interfaces enable integration with existing monitoring systems for centralized power management and alerting.
Maintenance-Free Operation
Four sealed lead-acid batteries require no routine maintenance and are spill-proof for safe installation in equipment racks. The 2-year warranty provides additional deployment confidence.
Deployment / Use Cases
The SURT15KRMXLT-TF5 is designed for environments where power continuity is non-negotiable and rack space is at a premium. Its 15kVA capacity and 208V input make it particularly suitable for North American commercial and industrial applications where this voltage is standard for three-phase power distribution.
This UPS effectively protects complete server racks, network operations centers, telecommunications equipment, and industrial control systems. The transformer option supporting 208V to 120V conversion allows it to serve mixed-voltage environments where both standard 120V equipment and 208V devices must coexist in the same rack.
Data Center Server Racks
Protect full racks of 1U and 2U servers, switches, and storage arrays with sufficient outlet diversity and runtime for graceful shutdown procedures during extended outages.
Network Operations Centers
Ensure continuous operation of core routing, switching, and security appliances with clean power isolation from utility fluctuations and brownouts.
Physical Profile
This rackmount UPS occupies 14U of vertical space with dimensions of 24.49" height, 17.01" width, and 30.43" depth. The substantial 641-pound weight requires proper rack reinforcement and consideration during installation planning. The black finish blends with standard rack equipment, while the front-panel LCD provides clear status visibility without requiring additional monitoring hardware.
- Width
- 17.01" (432 mm)
- Depth
- 30.43" (773 mm)
- Height
- 14U
- Weight
- 641.35 lb (290911.47 g)
Highlights
- 15 kVA double-conversion online UPS for critical infrastructure protection
- Rack-mountable 14U form factor with black finish for data center integration
- 17 total outlets: 12x NEMA 5-20R, 4x L6-20R, 1x L6-30R, plus hardwired connection
- 208V primary input with 120V/208V/240V output voltage support
- LCD display for real-time monitoring of power status and battery health
- SNMP and serial management interfaces for remote monitoring and control
- 8-minute runtime at full load with 4 maintenance-free lead-acid batteries
- Sine wave output ensures compatibility with sensitive server and network equipment
- Overload protection and 60Hz operation for stable power delivery
- 2-year limited warranty with RoHS compliance for environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SURT15KRMXLT-TF5 |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Model | SURT15KRMXLT-TF5 |
| Product Name | Smart-UPS On-Line SURT15KRMXLT-TF5 15 kVA Tower/Rack Mountable UPS |
| Product Type | Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 3-wire |
| Receptacle Type | Hard Wire 3-wire (2PH + G),NEMA 5-20R,NEMA L6-20R,NEMA L6-30R |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G),12 x NEMA 5-20R,4 x NEMA L6-20R,1 x NEMA L6-30R |
| Number of Battery & Surge Outlets | 17 |
| Overload Protection | Yes |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 15 kVA |
| Input Voltage | 208 V AC,240 V AC |
| Output Voltage | 120 V AC,208 V AC,240 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| Number of Batteries | 4 |
| Battery Characteristics | Maintenance-free/Sealed/Spill Proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 8 Minute |
| Typical Battery Recharge Time | 2.50 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 14U |
| Height | 24.49" (622 mm) |
| Width | 17.01" (432 mm) |
| Depth | 30.43" (773 mm) |
| Weight (Approximate) | 641.35 lb (290911.47 g) |
| Miscellaneous | |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This UPS has a 15 kVA (kilovolt-ampere) load capacity, which represents its maximum apparent power output. This capacity supports substantial critical loads typically found in server racks, network operations centers, and industrial control environments requiring reliable backup power.
What input voltages does this UPS support?
The Smart-UPS SURT15KRMXLT-TF5 accepts 208V AC or 240V AC input power. This dual-voltage input flexibility allows deployment in various North American commercial and industrial settings where either voltage is available from the electrical distribution system.
How many outlets does this rackmount UPS provide?
This unit offers 17 total power outlets: 12 NEMA 5-20R receptacles, 4 NEMA L6-20R receptacles, 1 NEMA L6-30R receptacle, and 1 hardwired 3-wire connection. This outlet diversity supports mixed equipment types without requiring additional power distribution units in the rack.
What is the runtime at full load?
At maximum 15 kVA load, this UPS provides approximately 8 minutes of battery runtime. This duration allows sufficient time for connected systems to perform graceful shutdown procedures or for backup generators to start and stabilize during utility power interruptions.
How is this UPS managed and monitored?
Management options include an integrated LCD display for local status monitoring plus SNMP and serial interfaces for remote management. These connectivity options enable integration with network monitoring systems for proactive alerting, historical reporting, and centralized power management across multiple UPS units.
What rack space does this UPS require?
This unit occupies 14U (rack units) of vertical space in a standard 19-inch rack. With dimensions of 24.49 inches high, 17.01 inches wide, and 30.43 inches deep, it requires proper rack reinforcement due to its 641-pound weight and consideration of depth for adequate airflow and cable management.
What power capacity is listed for this UPS?
The listed power specification is 15 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 17, which helps buyers understand how many connected devices it can support in its intended deployment.
