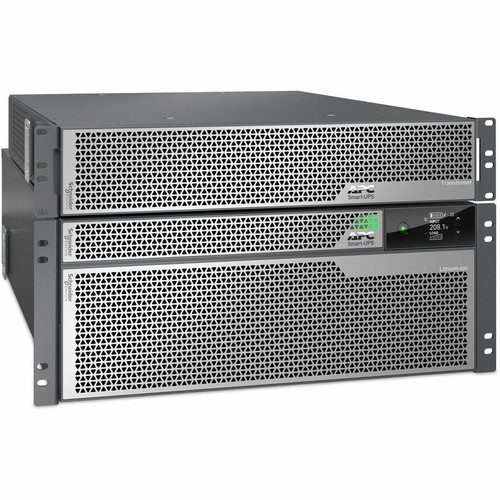

APC by Schneider Electric SRTL8KRM4UT-5KTF APC Smart-UPS Ultra Li-ion 8kVA 208V/240V Rack/Tower UPS with 5kVA Step-Down Transformer - 4U - 1. 5 Hour
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS Ultra system operates as a true online double-conversion UPS, providing complete isolation from input power anomalies. It accepts 208-240V AC input and delivers the same voltage range as output, with pure sine wave waveform for compatibility with sensitive electronic equipment.
The lithium-ion battery chemistry offers faster recharge times, longer service life, and reduced maintenance compared to traditional lead-acid batteries. The system supports single-phase power distribution and includes replaceable battery components for extended serviceability.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Phase, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This bundled UPS and transformer solution eliminates the need for separate component sourcing and integration. The system provides comprehensive power protection with voltage conversion capabilities in a single, coordinated package.
Integrated Transformer
The included 5kVA step-down transformer enables the UPS to provide 120V output voltages, expanding compatibility with standard North American equipment while maintaining the UPS's 208-240V input capability.
- 5kVA capacity
- 120V output conversion
- Integrated design
Outlet Configuration
The UPS provides dedicated high-power outlets while the transformer expands connectivity options for standard equipment.
- UPS: 2× NEMA L6-20R, 2× NEMA L6-30R
- Transformer: 12× 5-20R outlets
- Mixed outlet types for equipment diversity
Deployment / Use Cases
The SRTL8KRM4UT-5KTF is engineered for demanding enterprise environments where both power protection and voltage conversion are required. Its rack/tower flexibility makes it suitable for data centers, server rooms, and network closets with varying space constraints.
This system excels in scenarios where equipment mixes require different voltage levels. The UPS protects critical 208-240V equipment directly, while the transformer enables protection of standard 120V devices through the same power infrastructure. This makes it ideal for hybrid environments with both high-power servers and standard networking or peripheral equipment.
Server Room Protection
Provides uninterrupted power to rack-mounted servers, storage arrays, and networking gear while offering voltage flexibility for supporting equipment.
Mixed Voltage Environments
Solves power distribution challenges in facilities with equipment requiring both 208-240V and 120V operation from a single UPS system.
What's in the Box
This bundle includes both the UPS system and transformer for immediate deployment.
Highlights
- 8kVA/8kW double-conversion online UPS with integrated 5kVA step-down transformer
- Lithium-ion battery technology with 1.5-hour recharge time
- 4U rack/tower form factor with silver gray finish
- UPS outlets: 2× NEMA L6-20R and 2× NEMA L6-30R
- Transformer provides 12× 5-20R outlets for 120V equipment
- 208-240V AC input and output with pure sine wave
- Replaceable battery design for extended service life
- 5-year limited warranty for repair or replacement
- RoHS and REACH environmental compliance
- Includes RJ45 cable for network management connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL8KRM4UT-5KTF |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra 8kVA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | NEMA L6-20R,NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-20R,2 x NEMA L6-30R |
| Phase | Single Phase |
| Application/Usage | Server Room,Enterprise |
| Power Description | |
| Load Capacity (VA) | 8 kVA |
| Load Capacity (Watt) | 8 kW |
| Input Voltage | 208 V AC,240 V AC |
| Output Voltage | 208 V AC,240 V AC |
| Waveform Type | Sine Wave |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 1.50 Hour |
| Replaceable Battery | Yes |
| Physical Characteristics | |
| Product Color | Silver Gray |
| Rack Height | 4U |
| Form Factor | Rack/Tower |
| Miscellaneous | |
| Package Contents | Smart-UPS Ultra 8kVA Rack/Tower UPS RJ45 Cable |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this UPS system?
The APC Smart-UPS Ultra SRTL8KRM4UT-5KTF provides 8 kVA (8000 VA) and 8 kW of power capacity. This substantial capacity supports critical enterprise equipment in server rooms and data center environments, with the double-conversion online topology ensuring clean, reliable power delivery regardless of input conditions.
How does the included step-down transformer work with this UPS?
The bundled 5kVA step-down transformer converts the UPS's 208-240V output to 120V, providing 12 standard 5-20R outlets. This allows the single UPS system to protect both high-power 208-240V equipment directly through the UPS outlets and standard 120V devices through the transformer, creating a comprehensive power protection solution for mixed-voltage environments.
What type of battery does this UPS use and how fast does it recharge?
This Smart-UPS Ultra utilizes lithium-ion (Li-ion) battery technology, which offers significant advantages over traditional lead-acid batteries. The Li-ion batteries recharge to 90% capacity in approximately 1.5 hours under typical conditions, providing faster recovery between power events and reducing downtime windows compared to slower-charging battery technologies.
Can this UPS be installed in both rack and tower configurations?
Yes, the SRTL8KRM4UT-5KTF features a rack/tower form factor that supports both installation methods. The UPS occupies 4U of rack space in standard 19-inch racks, but also includes provisions for tower deployment. This flexibility allows installation in data center racks, server room enclosures, or as a standalone floor unit depending on space requirements and infrastructure preferences.
What types of outlets are available on this system?
The UPS provides four high-power outlets: two NEMA L6-20R and two NEMA L6-30R receptacles for 208-240V equipment. The included step-down transformer adds twelve 5-20R outlets for standard 120V devices. This combination supports a wide range of equipment from servers and storage arrays to networking gear and peripherals through a single protected power system.
What warranty coverage comes with this UPS and transformer bundle?
APC provides a 5-year limited warranty that covers repair or replacement of the UPS and transformer components. This extensive warranty period reflects the reliability built into the Smart-UPS Ultra design and provides long-term protection for your power infrastructure investment in enterprise environments where uptime is critical.
What power capacity is listed for this UPS?
The listed power specification is 8 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC,240 V AC, which helps position the unit for the right load level and installation role.
