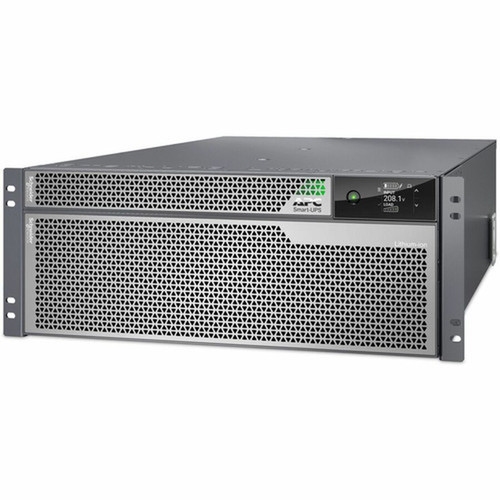

APC by Schneider Electric SRTL10KRM4UT APC Smart-UPS Ultra On-Line 10000VA/10000W Lithium-ion Rack/Tower 4U UPS - 208V/240V - Network Card - Extended
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This online double-conversion UPS provides complete isolation from utility power, delivering consistent 208V/240V sine wave output regardless of input conditions. It supports single-phase operation with input and output frequencies of 50 Hz or 60 Hz, making it suitable for global deployments. The DC system operates at 180V, and the lithium-ion batteries recharge in approximately 1.5 hours under typical conditions.
Management capabilities include a built-in network card with a 1-year secure subscription, USB connectivity for local management, and an EPO (Emergency Power Off) port for safety integration. The unit offers 1410 joules of surge protection and maintains operation at elevations up to 10,000 feet, with storage possible up to 50,000 feet.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Smart-UPS Ultra On-Line distinguishes itself through lithium-ion battery technology, which lasts approximately three times longer than traditional VRLA batteries and typically requires no replacement during the UPS's service life. This reduces total cost of ownership and minimizes maintenance interruptions. The 4U rack-optimized design includes stabilization feet and rack mounting hardware for flexible deployment in either rack or tower configurations.
Extended Runtime Capability
Supports connection of up to 10 external battery packs (SRTL180RM2UBP) for significantly extended runtime during prolonged outages, allowing customization based on specific backup requirements.
- Scalable battery expansion
- Maintains runtime as loads grow
Advanced Monitoring & Management
Includes a network management card with 1-year secure subscription for remote monitoring via web, SNMP, or EcoStruxure IT software. Optional WiFi accessory (AP9834) enables wireless communication.
- EcoStruxure™ Ready
- Autorotating LCD display
- Temperature probe included
Deployment / Use Cases
This 10000VA UPS is engineered for environments where power quality and availability are non-negotiable. Its 4U rack-mountable form factor makes it ideal for standard server racks in data centers, while the tower configuration option provides flexibility for smaller server rooms or network closets where rack space is limited.
Typical applications include protecting server racks, network switches, storage arrays, and telecommunications equipment. The hard-wire input capability and NEMA L6-20R/L6-30R outlets support higher-power devices commonly found in data centers. The unit's 55 dB sound emission level ensures it operates quietly in office-adjacent spaces.
Data Center Server Protection
Provides clean, uninterrupted power to critical servers and networking equipment, preventing data loss and hardware damage during power events. The online topology ensures zero transfer time during outages.
Network Infrastructure Backup
Safeguards switches, routers, and communication systems that must remain operational during utility failures. The network management capabilities allow IT staff to monitor power status remotely.
Physical Profile
The UPS features a silver gray finish that blends professionally with data center equipment. Its dimensions—6.89" (175 mm) height, 17.01" (432 mm) width, and 32.76" (832 mm) depth—are optimized for standard 19-inch racks while providing substantial battery capacity. At 121.25 pounds, the unit requires proper handling equipment during installation. The included stabilization feet ensure secure placement in tower mode, while the comprehensive rack mounting hardware simplifies rack installation.
- Width
- 17.01" (432 mm)
- Depth
- 32.76" (832 mm)
- Height
- 4U
- Weight
- 121.25 lb (54998.07 g)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 10000VA/10000W online double-conversion UPS with pure sine wave output
- Lithium-ion batteries last 3x longer than VRLA, typically no replacement needed
- 4U rack/tower convertible design with silver gray finish
- Includes network management card with 1-year secure subscription
- Supports up to 10 external battery packs for extended runtime
- EcoStruxure™ Ready for remote monitoring and management
- 208V/240V input and output with 96.4% efficiency
- 5-year warranty covering UPS and internal batteries
- Hard-wire input plus NEMA L6-20R and L6-30R outlets
- Autorotating LCD display and temperature probe included
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL10KRM4UT |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra On-Line 10000VA Rack/tower UPS |
| Packaged Quantity | 1 / Pack |
| Product Type | Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 3-wire |
| Receptacle Type | Hard Wire 3-wire (2PH + G),NEMA L6-30R,NEMA L6-20R |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G),2 x NEMA L6-30R,2 x NEMA L6-20R |
| Phase | Single Phase |
| Efficiency | 96.4% |
| Power Description | |
| Load Capacity (VA) | 10 kVA |
| Load Capacity (Watt) | 10 kW |
| Input Voltage | 208 V AC,240 V AC |
| Output Voltage | 208 V AC,240 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1410 J |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 180 V DC |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 1.50 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission | 55 dB |
| Physical Characteristics | |
| Product Color | Silver Gray |
| Form Factor | Rack/Tower |
| Rack Height | 4U |
| Height | 6.89" (175 mm) |
| Width | 17.01" (432 mm) |
| Depth | 32.76" (832 mm) |
| Weight (Approximate) | 121.25 lb (54998.07 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS Ultra On-Line 10000VA Rack/tower UPS Temperature Probe USB cable Stabilization feet Strain relief Rack mounting hardware |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS Ultra On-Line provides 10000VA (10 kVA) and 10000W (10 kW) of power capacity. It delivers pure sine wave output at 208V or 240V with 96.4% efficiency, making it suitable for protecting high-density server racks and critical network infrastructure.
What type of batteries does this UPS use?
This unit utilizes lithium-ion (Li-Ion) battery technology, which offers approximately three times the lifespan of traditional VRLA batteries. The lithium-ion batteries typically require no replacement during the UPS's service life, reducing maintenance costs and downtime.
Can I extend the runtime of this UPS?
Yes, this UPS supports connection of up to 10 external battery packs (model SRTL180RM2UBP) for significantly extended runtime. This scalability allows you to customize backup duration based on your specific load requirements and outage expectations.
What management features are included?
The UPS includes a network management card with a 1-year secure subscription, enabling remote monitoring via web interface, SNMP, or EcoStruxure IT software. It also features USB connectivity for local management, an autorotating LCD display, and an EPO (Emergency Power Off) port for safety integration.
What are the physical dimensions and installation options?
The unit measures 6.89" (175 mm) height, 17.01" (432 mm) width, and 32.76" (832 mm) depth, with a 4U rack height. It weighs 121.25 pounds and includes both rack mounting hardware and stabilization feet for flexible deployment as either a rack-mounted or tower-configured UPS.
What warranty coverage is provided?
APC provides a 5-year warranty that covers both the UPS unit and its internal lithium-ion batteries. This comprehensive warranty reflects the product's reliability and the extended lifespan of the lithium-ion battery technology compared to traditional UPS systems.
What power capacity is listed for this UPS?
The listed power specification is 10 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC,240 V AC, which helps position the unit for the right load level and installation role.
