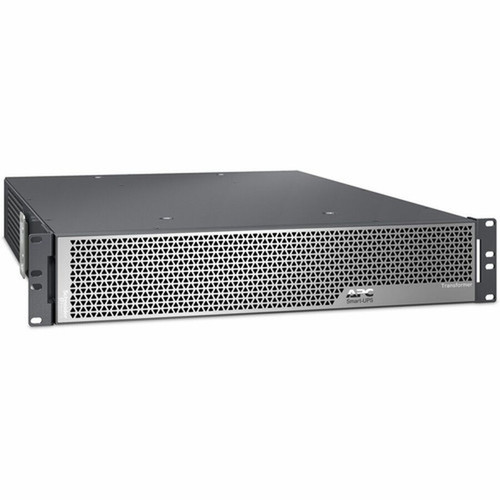

APC by Schneider Electric SRTL5KRMTF Smart-UPS Ultra Step-Down Transformer - 5kVA - 208V to 120V - 2U Rackmount - 12x NEMA 5-20R Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This section brings together practical product details such as Power Rating, Input Receptacle Type, Input Voltage, Output Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Voltage Conversion
Converts 208V AC input to 120V AC output, matching North American standard voltage for connected equipment. This step-down functionality bridges compatibility gaps in mixed-voltage environments.
- Input: 208V via NEMA L6-30P connector
- Output: 120V to 12x NEMA 5-20R outlets
Rack Integration
Engineered for seamless integration into standard 19-inch racks with a 2U height. The compact design maximizes power density without sacrificing accessibility or cooling.
- 2U rack height (8.35")
- Fits standard 19-inch rack width
- Front-to-back depth of 30.71"
Key Product Advantages
This step-down transformer combines high power capacity with rack-optimized design, offering distinct advantages for IT power management. Its robust construction ensures reliable performance under continuous load, while the integrated management capabilities provide operational oversight.
High-Density Power Conversion
Delivers 5kVA of conversion capacity in a 2U footprint, maximizing rack space efficiency. This density is ideal for environments where floor space and rack real estate are at a premium.
Comprehensive Outlet Configuration
Features twelve NEMA 5-20R outlets, distributing 120V power to multiple devices. This configuration supports diverse equipment loads without requiring additional power distribution units.
Enhanced Manageability
Includes a one-year Secure Network Management Card subscription for remote monitoring, alerting, and control. This capability reduces onsite maintenance needs and improves response times to power events.
Deployment / Use Cases
The SRTL5KRMTF transformer is tailored for scenarios where voltage compatibility and rack-based power distribution are critical. Its design addresses common challenges in modern IT infrastructure, providing a reliable solution for power conversion needs.
In data centers with 208V UPS systems, this transformer enables the use of 120V equipment, such as networking switches, servers, and storage arrays. It also serves in colocation facilities where tenant equipment may require different voltage levels than the available power feed.
Data Center Voltage Harmonization
Integrates with 208V UPS outputs to power 120V rack equipment, eliminating compatibility issues. This use case is common in enterprise data centers with mixed-voltage infrastructure.
High-Density Rack Power Distribution
Supports power-dense racks by converting and distributing 5kVA to multiple devices. Ideal for server racks, network racks, and telecom cabinets where space optimization is essential.
Physical Profile
The transformer's 2U rackmount design features a durable steel chassis with dimensions of 8.35" height, 23.31" width, and 30.71" depth. Weighing 101.41 pounds, it is built for stability in rack environments. The front-panel layout includes output outlets and status indicators for easy monitoring, while the rear accommodates the input connection and management interfaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 8.35" (212 mm), 23.31" (592 mm), 30.71" (780 mm), 101.41 lb (45998.80 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 23.31" (592 mm)
- Depth
- 30.71" (780 mm)
- Height
- 8.35" (212 mm)
- Weight
- 101.41 lb (45998.80 g)
Highlights
- 5kVA step-down transformer converts 208V input to 120V output
- 2U rackmount design for space-efficient deployment in standard 19-inch racks
- Twelve NEMA 5-20R outlets distribute power to multiple devices
- Includes one-year Secure Network Management Card subscription for remote monitoring
- RoHS compliant and environmentally friendly construction
- Five-year limited warranty for long-term reliability
- Input via NEMA L6-30P connector for secure power connection
- Heavy-duty steel chassis supports continuous operation in data center environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL5KRMTF |
| Brand Name | APC by Schneider Electric |
| Product Name | Step Down Transformer |
| Product Type | Step Down Transformer |
| Technical Information | |
| Power Rating | 5 kVA |
| Input Receptacle Type | NEMA L6-30P |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 120 V |
| Physical Characteristics | |
| Height | 8.35" (212 mm) |
| Width | 23.31" (592 mm) |
| Depth | 30.71" (780 mm) |
| Rack Height | 2U |
| Weight (Approximate) | 101.41 lb (45998.80 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this step-down transformer?
This transformer has a power rating of 5 kVA, providing sufficient capacity to convert and distribute power for multiple IT devices. It handles 208V input and delivers 120V output, making it suitable for medium-density rack deployments.
How many outlets does the transformer have, and what type are they?
The unit includes twelve NEMA 5-20R outlets, which are standard 120V receptacles commonly used in North America. This configuration allows you to power multiple servers, switches, or other equipment directly from the transformer.
What rack space does the transformer require?
It occupies 2U of vertical space in a standard 19-inch rack, with dimensions of 8.35 inches in height. The width is 23.31 inches, and the depth is 30.71 inches, ensuring compatibility with most rack enclosures.
What input voltage and connector does the transformer use?
The transformer accepts 208V input power through a NEMA L6-30P connector. This input voltage is typical in commercial and data center environments, and the connector ensures a secure, high-current connection.
Does the transformer include any management features?
Yes, it comes with a one-year subscription to the Secure Network Management Card service. This enables remote monitoring, alerting, and control via network connectivity, helping you manage power conditions without physical access.
What warranty coverage is provided with this transformer?
APC by Schneider Electric offers a five-year limited warranty on this transformer. This warranty covers repairs or replacements for defects in materials or workmanship, supporting long-term reliability in critical applications.
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What voltage details are listed?
The listed power specification is 208 V, which helps position the unit for the right load level and installation role.
