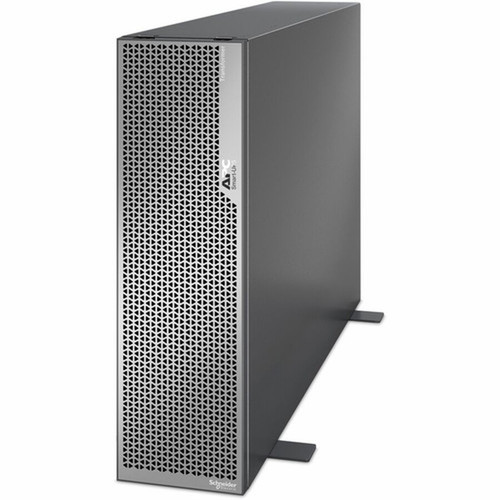

APC by Schneider Electric SRTL5KTF APC Smart-UPS Ultra Tower Isolation/Step-Down Transformer 5kVA - 208V to 120V - 12 Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS Ultra model operates as a true double-conversion online UPS, providing complete isolation between input power and connected equipment. The 5 kVA capacity supports substantial loads while the 208V to 120V step-down transformer enables deployment in commercial and industrial settings with 208V power distribution.
The unit maintains 60 Hz output frequency regardless of input fluctuations and offers comprehensive environmental specifications for reliable operation in diverse conditions. With operating temperatures up to 104°F (40°C) and elevation tolerance to 10,000 feet, this UPS is engineered for demanding deployment scenarios.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Smart-UPS Ultra Tower combines high-capacity power protection with voltage conversion capabilities in a single integrated solution. The isolation transformer provides enhanced protection against power anomalies while the step-down functionality simplifies deployment in 208V environments.
Comprehensive Outlet Configuration
Twelve NEMA outlets support diverse equipment with 5-20R, L6-20R, L6-30R, and L14-30R receptacles for flexible power distribution.
- 8 × NEMA 5-20R outlets
- 2 × NEMA L6-20R outlets
- 1 × NEMA L6-30R outlet
- 1 × NEMA L14-30R outlet
Advanced Management Capabilities
Includes a 1-year Secure Network Management Card subscription for remote monitoring and control of power conditions and UPS status.
- Network management included
- Remote monitoring capabilities
- Power conditioning control
Deployment / Use Cases
This 5kVA tower UPS is specifically designed for commercial and industrial applications where 208V power distribution is standard but connected equipment requires 120V input. The step-down transformer functionality eliminates the need for external voltage conversion equipment, simplifying installation and reducing points of failure.
Ideal deployment scenarios include server rooms, network closets, telecommunications installations, and industrial control systems where reliable 120V power is essential for sensitive electronics. The tower form factor provides flexibility for floor placement in equipment rooms or dedicated power distribution areas.
Commercial Building Applications
Protect critical IT infrastructure in office buildings, data centers, and commercial facilities with 208V three-phase power distribution systems.
Industrial Control Systems
Provide clean, regulated 120V power for PLCs, HMIs, and control equipment in manufacturing and processing environments.
Physical Profile
The tower design features a compact footprint with dimensions of 17.01 inches high, 5.12 inches wide, and 25.98 inches deep. The black finish provides a professional appearance suitable for equipment room environments. At 125 pounds, the unit is substantial yet manageable for placement in dedicated power distribution areas.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 17.01" (432 mm), 5.12" (130 mm), 25.98" (660 mm), 125 lb (56699.05 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.12" (130 mm)
- Depth
- 25.98" (660 mm)
- Height
- 17.01" (432 mm)
- Weight
- 125 lb (56699.05 g)
- Length
- 3 ft (0.90 m)
What's in the Box
The package includes the complete Smart-UPS Ultra 5kVA Tower UPS system with all necessary components for immediate deployment.
Highlights
- 5 kVA double-conversion online UPS with isolation/step-down transformer
- Converts 208V input to 120V output for equipment compatibility
- 12 versatile NEMA outlets supporting multiple receptacle types
- Tower form factor with compact 17.01" height footprint
- Includes 1-year Secure Network Management Card subscription
- 5-year limited warranty with repair or replacement coverage
- RoHS compliant and environmentally friendly design
- Operates at elevations up to 10,000 feet for diverse deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL5KTF |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra 5kVA Tower UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30P |
| Receptacle Detail | 8 x NEMA 5-20R,2 x NEMA L6-20R,1 x NEMA L6-30R,1 x NEMA L14-30R |
| Cord Length | 3 ft (0.90 m) |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Input Voltage | 208 V |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 5.12" (130 mm) |
| Depth | 25.98" (660 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 125 lb (56699.05 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS Ultra 5kVA Tower UPS User Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the purpose of the isolation/step-down transformer in this UPS?
The integrated isolation/step-down transformer converts 208V input power to 120V output, allowing the UPS to protect equipment designed for 120V operation in environments with 208V power distribution. This eliminates the need for external voltage conversion equipment and provides enhanced protection against power anomalies through complete electrical isolation.
How many devices can I connect to this UPS with its outlet configuration?
The APC Smart-UPS Ultra Tower provides 12 NEMA outlets with four different receptacle types: eight 5-20R outlets, two L6-20R outlets, one L6-30R outlet, and one L14-30R outlet. This versatile configuration supports connecting multiple servers, networking equipment, and other devices with different plug types while staying within the 5 kVA total capacity limit.
What type of UPS topology does this model use?
This Smart-UPS Ultra model utilizes double-conversion online topology, which provides the highest level of power protection. It continuously converts AC input to DC, then back to clean AC output, completely isolating connected equipment from power line disturbances, voltage fluctuations, and frequency variations.
Does this UPS include remote management capabilities?
Yes, the Smart-UPS Ultra Tower includes a 1-year subscription for the Secure Network Management Card. This enables remote monitoring and control of the UPS via network connection, allowing administrators to check power conditions, configure settings, receive alerts, and manage shutdown sequences from any location with network access.
What are the physical dimensions and weight of this tower UPS?
The UPS measures 17.01 inches in height, 5.12 inches in width, and 25.98 inches in depth (432 × 130 × 660 mm). It weighs approximately 125 pounds (56.7 kg). The compact tower design provides a substantial power capacity while maintaining a reasonable footprint for equipment room placement.
What warranty coverage does this Smart-UPS Ultra model include?
APC provides a 5-year limited warranty that includes repair or replacement coverage for the Smart-UPS Ultra Tower. This comprehensive warranty supports the product's reliability in critical power protection applications and reflects the manufacturer's confidence in the unit's construction and performance.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V, which helps position the unit for the right load level and installation role.
