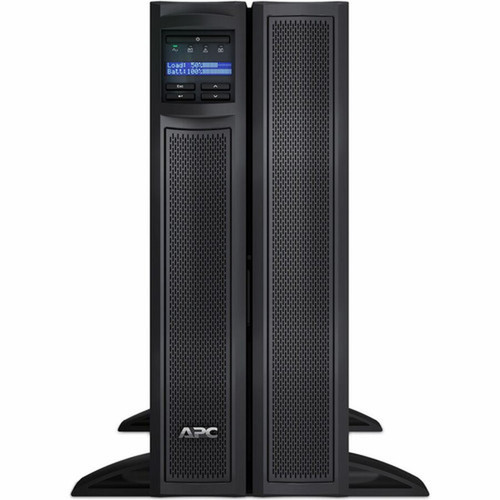

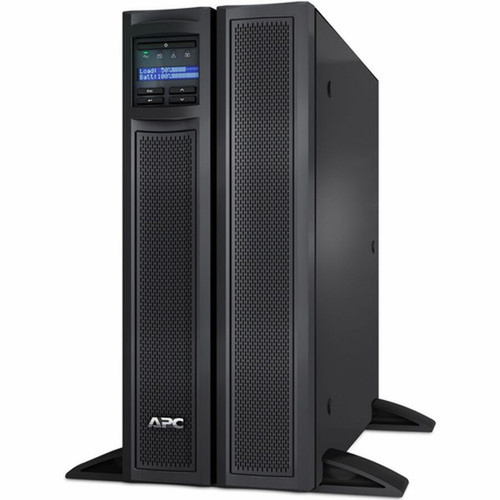

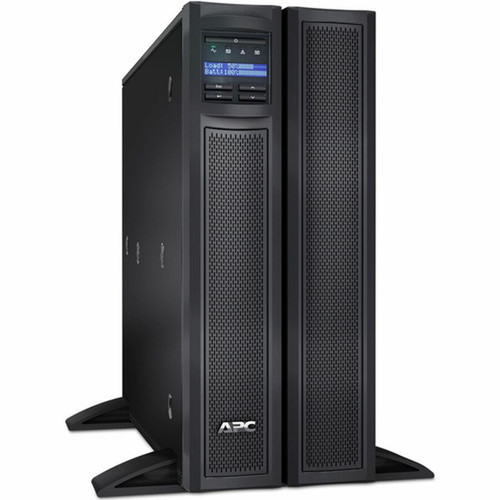

APC by Schneider Electric SMX3000HVNC APC Smart-UPS X 3kVA/2700W Line Interactive UPS - 4U Rack/Tower Convertible - 208V-230V - 12 Outlets - Network
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS X model operates with a line-interactive topology, providing efficient power conditioning and battery backup. The unit accepts 208V or 230V input and delivers the same voltage output, with sine wave waveform ensuring compatibility with active PFC power supplies found in modern servers and networking gear.

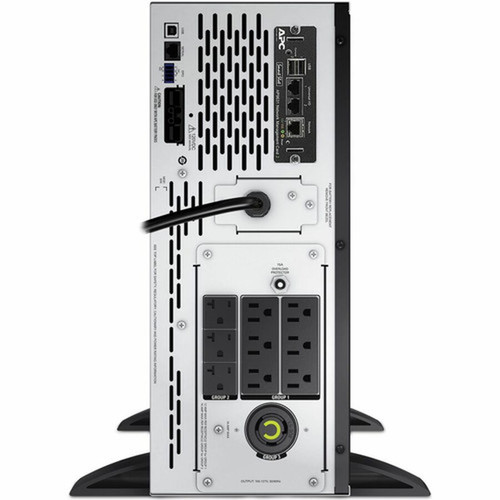

The 12 outlets include 8 IEC C13 and 2 IEC C19 connectors, plus jumper outlets, offering versatile device connectivity. A 645 joule surge energy rating protects against voltage spikes, while the 3-hour typical recharge time ensures quick recovery after an outage.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Smart-UPS X combines enterprise-grade power protection with practical deployment features. The convertible 4U design works equally well in rack-mounted server environments or as a standalone tower unit, with short-depth construction that saves valuable rack space for cable management.
Integrated Network Management
The preinstalled network management card includes a 1-year secure subscription, enabling remote monitoring via SNMP/HTTP, graceful shutdown of physical and virtual servers, and comprehensive power management without additional hardware purchases.
- SNMP/HTTP monitoring
- Virtual machine shutdown support
- Temperature probe compatible
Runtime Flexibility
Support for up to 10 external SMX120BP battery packs allows runtime extension to meet specific application requirements, while the hot-swappable battery design enables maintenance without taking connected equipment offline.
- External battery pack support
- Hot-swappable design
- Maintenance-free batteries
Deployment / Use Cases
This 3kVA UPS is engineered for protecting critical infrastructure in small to medium server rooms, network closets, and commercial IT installations. The combination of pure sine wave output and automatic voltage regulation makes it ideal for servers, storage arrays, networking equipment, and other sensitive electronics.

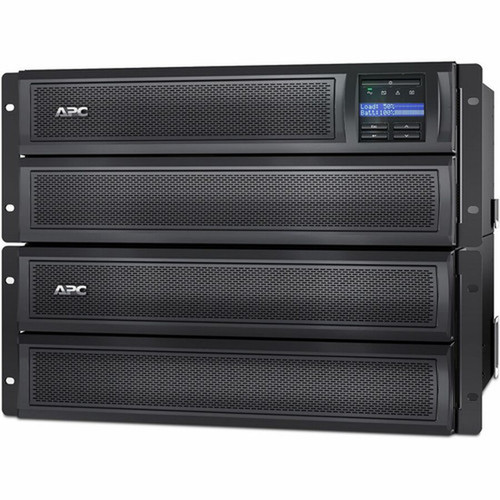

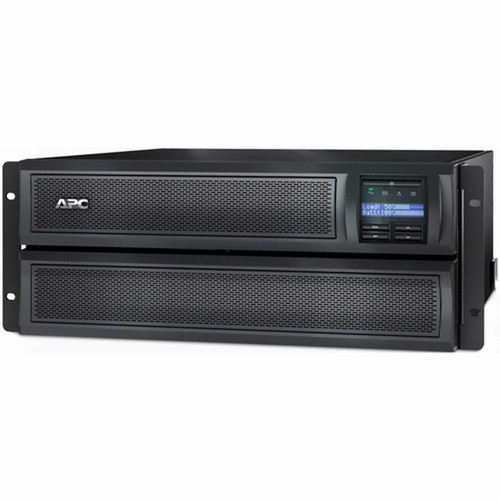

The rack/tower convertible design provides deployment flexibility—install it in a standard 19-inch rack using the included mounting rails or use it as a standalone tower unit. The short 19.02-inch depth is particularly valuable in space-constrained rack environments, leaving additional room for cable management behind the unit.
Server Room Protection
Provides clean power backup for 1-2 rack servers, network switches, and storage devices, with network management enabling automated shutdown procedures during extended outages.
Network Closet Installation
The compact 4U form factor fits standard network racks while the 12 outlets accommodate multiple switches, routers, and other networking equipment with pure sine wave protection.
Physical Profile
The black 4U enclosure measures 17.01" high, 7.01" wide, and 19.02" deep, with a weight of 85.19 pounds. The short-depth design is optimized for modern server racks where rear clearance is limited. The rack-mountable form includes support rails for secure 19-inch rack installation, while the tower configuration provides stable standalone operation.
- Width
- 7.01" (178 mm)
- Depth
- 19.02" (483 mm)
- Height
- 17.01" (432 mm)
- Weight
- 85.19 lb (38641.53 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all essential components for immediate deployment and management of the UPS system.
Highlights
- 3kVA/2700W line interactive UPS with pure sine wave output
- 4U rack/tower convertible design with short-depth construction
- 208V-230V input/output with user-selectable voltage settings
- 12 total outlets (8x C13, 2x C19) for versatile device connectivity
- Preinstalled network management card with 1-year subscription
- Support for up to 10 external battery packs (SMX120BP)
- Hot-swappable, maintenance-free lead acid batteries
- Automatic Voltage Regulation for stable power output
- 645 joule surge protection rating
- 3-year UPS warranty with 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX3000HVNC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | SMX |
| Product Name | Smart-UPS 3000VA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | British BS1363A,IEC 320-C20 |
| Receptacle Type | Schuko CEE 7/EU1-16P |
| Receptacle Detail | 2 x IEC 320-C19,2 x IEC Jumper,8 x IEC 320-C13 |
| Number of Battery & Surge Outlets | 12 |
| Cord Length | 8 ft (2.44 m) |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 208 V AC,230 V AC |
| Output Voltage | 208 V AC,230 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 645 J |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Low Battery |
| Interfaces/Ports | |
| Serial Port | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 6 Minute |
| Backup/Run Time (Half Load) | 18 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 7.01" (178 mm) |
| Depth | 19.02" (483 mm) |
| Rack Height | 4U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 85.19 lb (38641.53 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 3000VA Tower/Rack Mountable UPS CD with software Rack mounting support rails Smart UPS signalling RS-232 cable Temperature probe User manual Web/SNMP management card |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This Smart-UPS X model provides 3 kVA (3000 VA) apparent power and 2700 watts real power capacity. It operates at 208V or 230V input and output voltages, making it suitable for commercial and server room applications where higher voltage power is standard.
How long will this UPS run on battery power?
At full 2700W load, the internal battery provides approximately 6 minutes of runtime. At half load (1350W), runtime extends to about 18 minutes. These times can be significantly extended by adding external battery packs, with support for up to 10 SMX120BP units.
What types of outlets does this UPS have?
The unit features 12 total outlets: 8 IEC 320-C13 outlets, 2 IEC 320-C19 outlets, and 2 IEC jumper outlets. This mix accommodates standard server and network equipment power cords while providing higher-capacity C19 outlets for devices with greater power requirements.
Does this UPS include network management capabilities?
Yes, a Web/SNMP management card is preinstalled and includes a 1-year secure subscription. This enables remote monitoring via SNMP or HTTP, graceful shutdown of physical servers and virtual machines, temperature monitoring with the included probe, and comprehensive power management without additional hardware.
Can this UPS be mounted in a server rack?
Yes, this is a 4U rack/tower convertible unit. It includes rack mounting support rails for installation in standard 19-inch server racks. The short 19.02-inch depth is designed for modern rack environments where rear clearance is limited, while still providing space for cable management.
What warranty coverage does this Smart-UPS include?
The UPS is covered by a 3-year (36-month) warranty, while the batteries have a 2-year (24-month) warranty. The unit is also RoHS compliant and manufactured in the Philippines, meeting international environmental standards for hazardous substance restriction.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 12, which helps buyers understand how many connected devices it can support in its intended deployment.
