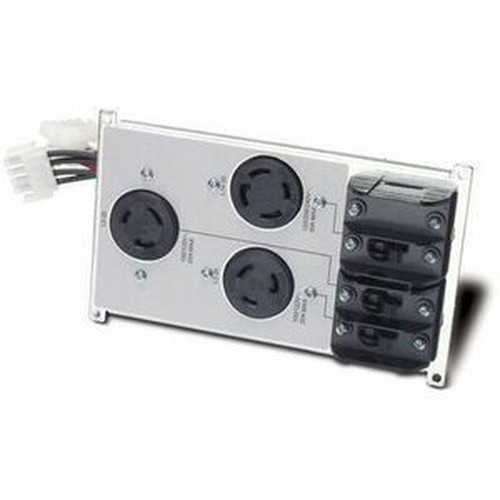

APC Symmetra LX power distribution panel; (1) L14-30, (2) L5-20 - 1, 2 x NEMA L14-30R, NEMA L5-20R Female, Female (SYAPD1)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Receptacle Type: NEMA L14-30R,NEMA L5-20R
Receptacles Detail: 1 x NEMA L14-30R,2 x NEMA L5-20R
Voltage Rating: 200 V AC,208 V AC
Color Family: Black
Product Color: Black
Height: 5" (127 mm)
Width: 5.98" (152 mm)
Depth: 2.01" (51 mm)
Weight (Approximate): 4.01 lb (1818.91 g)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SYAPD1 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | Symmetra LX Power Backplate |
| Product Type | Power Backplate |
| Technical Information | |
| Receptacle Type | NEMA L14-30R,NEMA L5-20R |
| Receptacles Detail | 1 x NEMA L14-30R,2 x NEMA L5-20R |
| Power Description | |
| Voltage Rating | 200 V AC,208 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 5" (127 mm) |
| Width | 5.98" (152 mm) |
| Depth | 2.01" (51 mm) |
| Weight (Approximate) | 4.01 lb (1818.91 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
