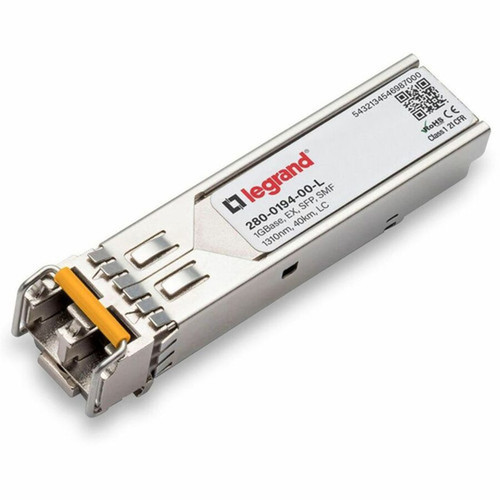

Ortronics 280-0194-00-A Cyan SFP Module - 1G LC Duplex 1000Base-EX Single-mode 40 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP module operates on the 1000Base-EX standard, which uses a 1310 nm wavelength for single-mode fiber transmission. The module features one LC duplex port, maintaining compatibility with standard SFP slots in switches, routers, and media converters. Its compact form factor follows the SFP MSA specification, ensuring broad interoperability with networking equipment from major vendors.
The transceiver supports full-duplex Gigabit Ethernet, providing a maximum data transfer rate of 1000 Mbps. It is designed for optical fiber media only and does not support copper Ethernet connections. The module is environmentally compliant with RoHS standards and carries a lifetime limited warranty from the manufacturer.
Key Product Advantages
This Ortronics SFP module offers several distinct advantages for network deployments requiring extended reach and reliable fiber connectivity.
Extended Distance Capability
With support for up to 40 kilometers over single-mode fiber, this module eliminates the distance limitations of copper cabling, making it suitable for connecting geographically dispersed network segments.
High-Speed Optical Performance
The 1000Base-EX technology provides full Gigabit Ethernet throughput, ensuring data-intensive applications perform without bottlenecks across fiber links.
Standard Compatibility
As an SFP form factor module with LC connectors, it integrates seamlessly with existing fiber infrastructure and SFP-capable networking equipment from various manufacturers.
Deployment / Use Cases
The Ortronics Cyan SFP Module is deployed in scenarios where reliable, high-speed connectivity over extended distances is required. Its single-mode fiber compatibility and 40 km reach make it particularly valuable for specific network architectures.
Common deployment scenarios include connecting separate buildings within a campus network, establishing backbone links between data centers, and providing fiber uplinks for network aggregation switches. It is also used in metropolitan area network (MAN) extensions where service providers need to deliver Gigabit Ethernet services over existing fiber infrastructure.
Physical Profile
The module measures 0.53 inches wide, 0.33 inches high, and 2.23 inches deep, conforming to the standard SFP dimensions for easy installation in compatible SFP slots. Its compact size allows high-density deployments in network equipment chassis. The RoHS-compliant construction ensures environmental responsibility while maintaining durability for continuous operation in networking environments.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.23" (56.65 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- SFP form factor optical transceiver for Gigabit Ethernet networks
- 1000Base-EX technology with 1 Gbit/s data transfer rate
- LC duplex connector for single-mode fiber compatibility
- Maximum supported distance of 40 kilometers (24.85 miles)
- Hot-pluggable design for easy installation and replacement
- RoHS compliant for reduced environmental impact
- Lifetime limited warranty for long-term reliability
- Compact dimensions: 0.53" W × 0.33" H × 2.23" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 280-0194-00-A |
| Brand Name | Approved Networks |
| Product Name | Cyan SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-EX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-EX |
| Maximum Distance Supported | 40 km (24.85 Mile) |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.23" (56.65 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of fiber does this SFP module support?
This Ortronics SFP module supports single-mode fiber optic cable with LC duplex connectors. Single-mode fiber uses a single wavelength of light to transmit data over long distances with minimal signal loss, making it ideal for the module's 40 km maximum reach capability.
What is the maximum data transfer rate of this transceiver?
The module supports a maximum data transfer rate of 1 Gbit/s (1000 Mbps) using Gigabit Ethernet technology. This full-duplex performance enables high-speed data transmission for network backbone connections, server links, and other bandwidth-intensive applications over fiber optic infrastructure.
How far can this SFP module transmit data?
This transceiver supports transmission distances up to 40 kilometers (approximately 24.85 miles) over single-mode fiber when using 1000Base-EX technology. This extended reach makes it suitable for connecting network segments across campus environments, between buildings, or in metropolitan area network deployments.
What type of connector does this module use?
The module features one LC duplex connector port. LC connectors are small form-factor fiber optic connectors that provide reliable connections with low insertion loss, commonly used in SFP transceivers for their compact size and performance in high-density networking equipment.
