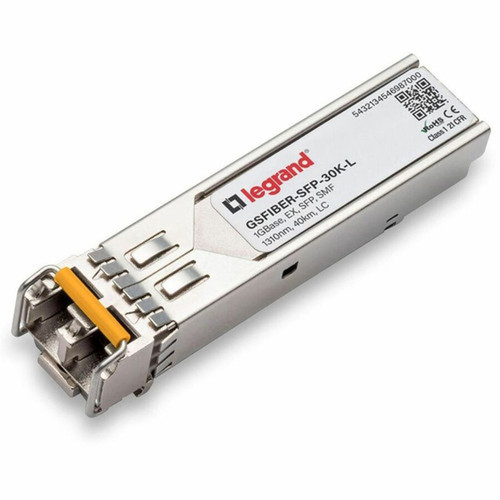

Ortronics GSFIBER-SFP-30K-A Sixnet SFP Module - 1G Gigabit Ethernet - LC Duplex - 1000Base-EX - 40 km Single-mode Fiber
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP module operates on 1000Base-EX network technology, which is optimized for extended-reach single-mode fiber deployments. The module transmits data at 1310 nm wavelength, enabling high-performance connections over long distances without signal degradation.
The single-mode fiber support allows for precise data transmission with minimal dispersion, making it ideal for backbone network links, campus networks, and telecommunications infrastructure. The module's electrical interface complies with Gigabit Ethernet standards, ensuring interoperability with existing network equipment.
Key Product Advantages
This Ortronics SFP module offers several advantages for network deployments requiring extended reach and reliable fiber optic connectivity.
Extended Reach Capability
With support for distances up to 40 kilometers, this module eliminates the need for additional signal repeaters in long-haul network segments, reducing infrastructure complexity and cost.
- 40 km maximum distance
- Single-mode fiber optimization
- Reduced signal loss over distance
High-Performance Connectivity
The 1000Base-EX technology delivers Gigabit Ethernet speeds that are up to 10 times faster than standard Fast Ethernet connections, providing sufficient bandwidth for data-intensive applications.
- 1 Gbit/s data transfer rate
- 1000Base-EX technology
- Low-latency performance
Environmental Compliance
Manufactured with RoHS-compliant materials, this SFP module meets environmental standards while maintaining reliable operation in various deployment conditions.
- RoHS compliance
- Environmentally friendly construction
- Reliable operation in diverse conditions
Deployment / Use Cases
The Ortronics GSFIBER-SFP-30K-A SFP Module is designed for network environments that require reliable, high-speed connections over extended distances using single-mode fiber optic cabling.
This module is particularly suitable for connecting network switches and routers across separate buildings in campus networks, linking data centers to remote facilities, and establishing backbone connections in metropolitan area networks. Its 40-kilometer reach capability makes it ideal for telecommunications infrastructure, enterprise WAN connections, and service provider networks where fiber runs span significant distances.
Campus Network Backbone
Connect switches between buildings across large campuses or industrial complexes using existing single-mode fiber infrastructure.
Telecommunications Links
Establish reliable point-to-point connections for service providers and telecommunications companies requiring extended reach between network nodes.
Physical Profile
The compact SFP form factor measures 0.53" wide × 0.33" high × 2.23" deep (13.40 mm × 8.50 mm × 56.65 mm), allowing high-density deployment in network equipment with SFP slots. This standardized physical design ensures compatibility with a wide range of switches, routers, and media converters that support SFP modules.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.23" (56.65 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- 1000Base-EX technology for Gigabit Ethernet over single-mode fiber
- LC duplex connector for secure fiber optic connections
- 40 km maximum distance support for extended-reach deployments
- 1 Gbit/s data transfer rate for high-performance networking
- Hot-pluggable SFP form factor for easy installation and replacement
- 1310 nm wavelength operation optimized for single-mode fiber
- RoHS compliant construction for environmental responsibility
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | GSFIBER-SFP-30K-A |
| Brand Name | Approved Networks |
| Product Name | Sixnet SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-EX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-EX |
| Maximum Distance Supported | 40 km (24.85 Mile) |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.23" (56.65 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of fiber optic cable does this SFP module support?
This Ortronics SFP module supports single-mode fiber optic cable. Single-mode fiber uses a single wavelength of light to carry data over long distances with minimal signal loss, making it ideal for the module's 40-kilometer reach capability in network backbone and telecommunications applications.
What is the maximum data transfer rate of this SFP module?
The module supports a maximum data transfer rate of 1 Gbit/s (Gigabit per second) using 1000Base-EX network technology. This provides sufficient bandwidth for data-intensive network applications and is approximately 10 times faster than standard Fast Ethernet connections.
What is the maximum distance this SFP module can support?
This SFP module supports connections up to 40 kilometers (approximately 24.85 miles) over single-mode fiber optic cable. This extended reach capability makes it suitable for connecting network equipment across separate buildings, campus networks, and telecommunications infrastructure without requiring signal repeaters.
What type of connector does this SFP module use?
The module features an LC duplex connector, which is a small form-factor fiber optic connector commonly used in SFP modules. The LC connector provides secure connections with low insertion loss, making it ideal for high-density network deployments where space is at a premium.
