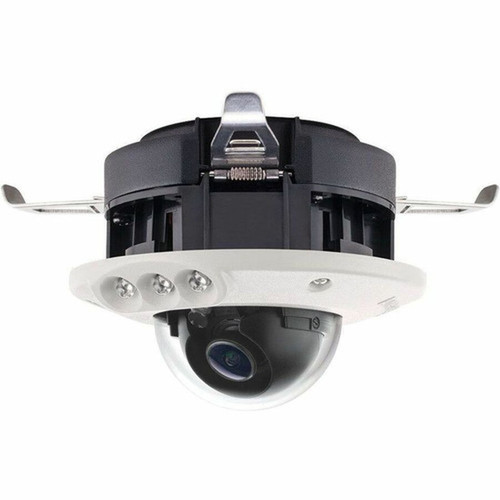

Arecont Vision AV5856DNIR-F MicroDome LX 5MP Indoor/Outdoor Network Camera - White - 2. 8mm Lens - PoE - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/2.8" CMOS image sensor paired with a fixed 2.8mm M12-mount lens featuring an f/1.6 maximum aperture. The wide 98° field of view provides extensive coverage, minimizing blind spots in monitored areas. Video is encoded using H.265, H.264, and Motion JPEG formats, offering flexibility for bandwidth management and storage optimization.
Network connectivity is handled via Fast Ethernet with an RJ-45 port, supporting a comprehensive suite of protocols including SNMP, HTTP/HTTPS, IPv4/IPv6, TCP/IP, RTSP, and more. Remote management capabilities allow administrators to configure and monitor the camera from any location. Onboard storage via memory card adds local recording redundancy.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
For buyers comparing similar models, the strongest advantage is usually the balance between dependable day-to-day operation and a simpler rollout experience. That means less time spent troubleshooting fit, compatibility, or user adoption after installation, which is especially important for shared business environments and repeat purchasing decisions.
Deployment / Use Cases
The AV5856DNIR-F is suited for environments requiring reliable, high-quality video evidence. Its TAA compliance makes it eligible for U.S. federal government purchases, while environmental certifications (WEEE, REACH, RoHS) address regulatory requirements in various markets.
Retail & Commercial Security
Deploy in stores, offices, or warehouses where high-resolution monitoring of entrances, aisles, and inventory areas is required. The vandal-resistant dome housing deters tampering.
- 5MP resolution captures fine details like license plates or facial features.
- Indoor/outdoor rating allows placement in covered entryways or parking areas.
Educational & Institutional Facilities
Install in schools, hospitals, or government buildings needing discreet, reliable surveillance. PoE simplifies wiring in existing infrastructure.
- IK10 impact resistance withstands attempted vandalism.
- Wide temperature range ensures operation in unheated corridors or outdoor perimeters.
Physical Profile
Measuring 3.10" (78.74 mm) in height and 4" (101.60 mm) in diameter, the camera maintains an ultra-low-profile design that blends into ceilings or walls. The approximate weight is 15.17 oz (430 g), facilitating secure mounting without excessive load. The white finish matches common interior and exterior surfaces, while the micro dome shape minimizes visual intrusion.
- Height
- 3.10" (78.74 mm)
- Weight
- 15.17 oz (430 g)
- Length
- 2.8 mm (0.11")
Highlights
- 5MP resolution for detailed 2592 x 1944 video at 30 fps
- Fixed 2.8mm lens with 98° field of view and f/1.6 aperture
- Infrared night vision with 50 ft (15.24 m) range and 3 IR LEDs
- IP66 and IK10 ratings for weather and impact resistance
- Power over Ethernet (PoE) for simplified installation
- H.265, H.264, and MJPEG video compression formats
- Wide Dynamic Range (WDR) up to 120dB for balanced lighting
- True day/night functionality with mechanical IR cut filter
- On-camera analytics including motion detection and privacy masking
- TAA compliant and environmentally certified (WEEE, REACH, RoHS)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Arecont Vision |
| Manufacturer Part Number | AV5856DNIR-F |
| Brand Name | Arecont Vision |
| Product Line | MicroDome LX |
| Product Model | AV5856DNIR-F |
| Product Name | ConteraIP MicroDome LX Megapixel Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 50 ft (15.24 m) |
| Night Vision Type | Infrared |
| Number of IR LEDs | 3 |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | 98° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265,H.264,Motion JPEG |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | SNMP,HTTP,HTTPS,IPv6,IPv4,SSL,TCP/IP,TLS,UPnP,UDP,RTCP,RTSP,RTP,SMTP,NTP,DHCP,FTP,802.1X,QoS,DDNS,ZeroConf |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Flush Mount,Board Mount,Ceiling Mount |
| Form Factor | Micro Dome |
| Durability | Weather Proof,Tamper Resistant,Impact Resistant,Vandal Resistant,Weather Resistant |
| Height | 3.10" (78.74 mm) |
| Diameter | 4" (101.60 mm) |
| Weight (Approximate) | 15.17 oz (430 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,Built-in IR LED,Motion Detection,Privacy Masking,Multi-view Stream,On Screen Display Menu,Password Protection,White Balance,Automatic White Balance,Back Light Compensation (BLC) |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the resolution and video quality of this camera?
The Arecont Vision AV5856DNIR-F captures 5-megapixel video at a maximum resolution of 2592 x 1944 pixels and a frame rate of 30 frames per second. This high resolution ensures clear, detailed imagery suitable for identifying faces, license plates, or other critical details in surveillance footage. Video is encoded using H.265, H.264, and Motion JPEG formats, providing flexibility for bandwidth management and storage efficiency.
How does the night vision perform?
Night vision is provided by three built-in infrared LEDs that illuminate up to 50 feet (15.24 meters) in total darkness. The camera features a mechanical IR cut filter for true day/night functionality, automatically switching between color and monochrome modes. This ensures optimal image quality in low-light conditions without requiring external lighting.
Is this camera suitable for outdoor use?
Yes, the camera is rated IP66 for ingress protection against dust and water jets, and IK10 for impact resistance up to 20 joules. It operates in temperatures from -4°F to 122°F (-20°C to 50°C) and up to 90% humidity. These ratings make it durable for outdoor installations or harsh indoor environments like warehouses or parking garages.
What power source does the camera require?
The camera is powered via Power over Ethernet (PoE), which delivers both data and electrical power through a single Ethernet cable. This simplifies installation by eliminating the need for a separate power outlet near the camera, reducing wiring complexity and costs. It uses standard IEEE 802.3af or similar PoE injectors or switches.
What mounting options are available?
The camera supports flush mounting, board mounting, and ceiling mounting, offering flexibility for various installation scenarios. Its micro dome form factor and white color provide a discreet appearance. The compact size (3.10" height, 4" diameter) and lightweight design (15.17 oz) facilitate secure attachment to surfaces without requiring heavy-duty supports.
Does this camera include video analytics features?
Yes, on-camera video analytics include motion detection, privacy masking, and multi-view streaming. Additional features like CorridorView™ allow 90° image rotation for better coverage in hallways, while SNAPstream+™ reduces bandwidth usage without impacting image quality. These analytics enable smarter monitoring and efficient use of network and storage resources.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
