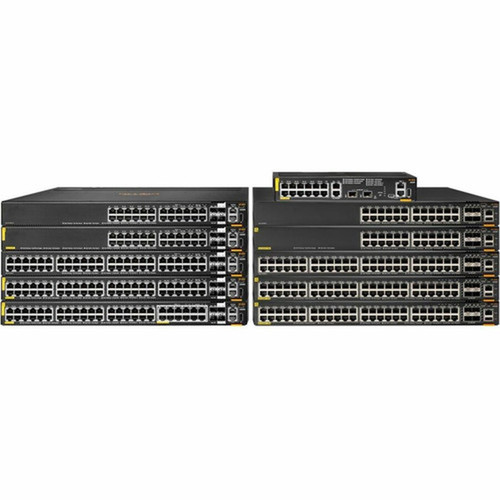

Aruba R8V13A#ABA 6200F 12G Class4 PoE Switch - 14 Ports - 2 SFP+ - 139W - Layer 3 - Fanless - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch provides 14 Gigabit Ethernet ports (10/100/1000Base-T) that support both twisted pair copper and, via optional transceivers, optical fiber connections. Two built-in SFP+ slots deliver 10 Gigabit Ethernet expansion for high-bandwidth uplinks to core switches or servers, ensuring no bottlenecks in aggregated traffic. The switch operates at Layer 3, enabling advanced routing, policy-based forwarding, and improved network segmentation compared to basic Layer 2 switches.
Power delivery is a key strength, with a 139W PoE budget supporting IEEE 802.3bt (Class 4) for high-power devices like pan-tilt-zoom cameras or advanced access points. The internal power supply accepts 120-230V AC input and consumes only 23W under typical load, contributing to energy efficiency. The fanless thermal design eliminates moving parts for increased reliability and zero audible noise, suitable for environments where quiet operation is preferred.
Key Product Advantages
The Aruba 6200F switch stands out with its balanced combination of port density, PoE power, and management features. Its 139W PoE budget allows it to power multiple high-demand devices simultaneously without external injectors, simplifying cabling and reducing points of failure. The Layer 3 capabilities provide routing between VLANs and support for dynamic routing protocols, making it suitable for small to medium-sized networks that require segmentation and advanced traffic management.
Silent Operation
The fanless design ensures completely silent performance, ideal for office environments, classrooms, or retail spaces where noise reduction is important.
- No moving parts
- Zero audible noise
- Enhanced reliability
Flexible Deployment
With both rack-mount and wall-mount options, this switch adapts to various installation scenarios from data centers to wiring closets.
- 1U rack mounting
- Wall mountable
- Compact footprint
Future-Proof Connectivity
The dual SFP+ slots provide 10 Gigabit Ethernet uplinks for connecting to higher-tier switches or servers, ensuring bandwidth headroom for growing network demands.
- 10GbE capability
- Fiber or copper options
- High-speed aggregation
Deployment / Use Cases
This switch is particularly well-suited for small to medium business networks, branch offices, and educational environments where a combination of wired connectivity and PoE power is required. Its 14 Gigabit Ethernet ports can accommodate workstations, printers, and other wired devices, while the substantial PoE budget powers VoIP phones, surveillance cameras, and wireless access points throughout the facility.
In retail settings, the switch can support point-of-sale systems, digital signage, and inventory management devices while providing PoE to security cameras and Wi-Fi access points. For office deployments, it enables clean, organized network infrastructure with the flexibility to support both traditional cubicle setups and modern collaborative spaces with wireless connectivity. The TAA compliance makes it appropriate for government contracts, educational institutions receiving federal funding, or any organization requiring compliant networking equipment.
Physical Profile
The switch features a compact 1U form factor measuring 1.73 inches in height, 10 inches in width, and 12.01 inches in depth, making it suitable for standard 19-inch racks. Its weight of 7.14 pounds ensures easy handling during installation. The design supports both rack mounting with included hardware and wall mounting for flexible placement in telecom closets or equipment rooms. The all-metal construction provides durability while maintaining effective heat dissipation without active cooling.
- Width
- 10" (254 mm)
- Depth
- 12.01" (305 mm)
- Height
- 1.73" (43.90 mm)
- Weight
- 7.14 lb (3240 g)
Highlights
- 14 Gigabit Ethernet ports for high-density wired connectivity
- 139W PoE budget supporting IEEE 802.3bt Class 4 devices
- Dual SFP+ slots for 10 Gigabit Ethernet uplinks or fiber expansion
- Layer 3 switching capabilities for advanced routing and segmentation
- Fanless design for silent, reliable operation with no moving parts
- 1U rack-mountable form factor with wall-mount options
- TAA compliant for government and educational procurement
- Comprehensive management features for granular network control
- Supports twisted pair and optical fiber media types
- Stack port for easy network expansion and simplified management
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R8V13A#ABA |
| Brand Name | HPE |
| Product Series | CX 6200 |
| Product Model | R8Q72A |
| Product Name | 6200F 12G Class4 PoE 2G/2SFP+ 139W TAA Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 14 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 14 x Gigabit Ethernet Network,2 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3bt,IEEE 802.3at,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1p,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1x,IEEE 802.1ae,IEEE 802.3af |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 139 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 23 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Wall Mountable |
| Height | 1.73" (43.90 mm) |
| Width | 10" (254 mm) |
| Depth | 12.01" (305 mm) |
| Weight (Approximate) | 7.14 lb (3240 g) |
| Miscellaneous | |
| TAA Compliant | Yes |
FAQ
How many devices can this switch power with PoE?
The switch has a total PoE budget of 139 watts, which can power multiple PoE devices simultaneously. The exact number depends on each device's power requirements. For example, it could power approximately 8-10 standard VoIP phones (7-10W each), 4-5 wireless access points (15-30W each), or a combination of different devices. The switch supports IEEE 802.3af, 802.3at, and 802.3bt standards, allowing it to deliver power to devices ranging from basic sensors to high-power equipment like PTZ cameras.
What are the benefits of Layer 3 switching compared to Layer 2?
Layer 3 switching adds routing capabilities that Layer 2 switches lack. This allows the Aruba 6200F to route traffic between different VLANs without needing a separate router, implement access control lists for security, support dynamic routing protocols like OSPF, and provide policy-based routing. This results in better network segmentation, improved traffic management, reduced latency for inter-VLAN communication, and more granular security controls compared to basic Layer 2 switching.
Can I use fiber optic connections with this switch?
Yes, the switch supports fiber optic connections through its two SFP+ slots. You can install compatible SFP or SFP+ transceivers to connect via fiber to other switches, routers, or network equipment. The switch supports 10GBase-X for 10 Gigabit Ethernet over fiber, and with appropriate transceivers, can support various fiber types and distances. The 14 copper ports also support twisted pair connections up to 100 meters, giving you flexibility in media selection throughout your network.
What does TAA compliance mean for this switch?
TAA (Trade Agreements Act) compliance means this switch meets the requirements of the U.S. Trade Agreements Act, which governs procurement by federal government agencies. TAA-compliant products must be substantially manufactured or undergo significant transformation in the United States or in designated countries. This makes the switch eligible for government contracts, educational institutions receiving federal funding, and any organization that requires compliant networking equipment as part of their procurement policies.
How does the fanless design affect performance and reliability?
The fanless design eliminates moving parts that are common points of failure in networking equipment, increasing overall reliability and reducing maintenance needs. It operates completely silently, making it suitable for office environments, classrooms, healthcare settings, or any location where noise reduction is important. The passive cooling system uses heat sinks and thermal design to dissipate heat effectively without fans, maintaining optimal operating temperatures while consuming less power and producing no audible noise.
What management features does this switch offer?
As a fully manageable switch, it offers comprehensive control through a web interface, command line interface (CLI), and support for network management protocols like SNMP. You can configure VLANs, quality of service (QoS) policies, link aggregation (LACP), port security, and access control lists. The switch supports IEEE 802.1x for network access control, plus features like storm control, DHCP snooping, and comprehensive monitoring capabilities for troubleshooting and network optimization.
