Aruba S1T23A Instant On AP32 Tri-Band Wi-Fi 6E Access Point - 3.6 Gbps - 2.5GbE - PoE - Indoor - Ceiling/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The AP32 leverages Wi-Fi 6E technology with tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz frequencies. It implements Multi-User MIMO (MU-MIMO) and beamforming technologies to optimize signal direction and capacity, efficiently serving multiple client devices simultaneously.
Network security is handled through WPA2 and WPA3 encryption standards, ensuring data protection for connected devices. The access point supports common communication protocols including PPPoE, DHCP, and RADIUS for flexible network integration and authentication.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AP32 combines advanced wireless technology with practical deployment features for reliable indoor coverage. Its tri-band design with 6 GHz support provides future-ready capacity, while the 2.5 Gigabit Ethernet port with PoE support ensures sufficient backhaul bandwidth and simplified installation.
Enhanced Wireless Capacity
With access to the 6 GHz band, the AP32 offers additional channels and reduced congestion compared to dual-band access points, improving performance in crowded RF environments.
- Tri-band operation (2.4/5/6 GHz)
- Wi-Fi 6E technology
- Reduced interference on 6 GHz
Simplified Installation
The PoE PD port allows the access point to receive both power and data over a single Ethernet cable, reducing wiring complexity and enabling flexible placement options.
- Single-cable deployment
- Ceiling or wall mounting
- Compact 6.3" square design
Deployment / Use Cases
The Aruba Instant On AP32 is optimized for indoor environments requiring reliable, high-performance wireless connectivity. Its ceiling and wall mounting options make it suitable for office spaces, retail locations, educational facilities, and healthcare settings where aesthetics and coverage are both important considerations.
With support for the latest Wi-Fi 6E standard and 2.5 Gigabit Ethernet backhaul, this access point can serve as a foundation for modern wireless networks supporting bandwidth-intensive applications, IoT device ecosystems, and high-density client environments.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Office & Commercial Spaces
Provide consistent wireless coverage throughout office environments with support for video conferencing, cloud applications, and mobile device connectivity.
Education & Healthcare
Support high-density client environments with reliable connectivity for student devices, medical equipment, and staff mobility requirements.
Physical Profile

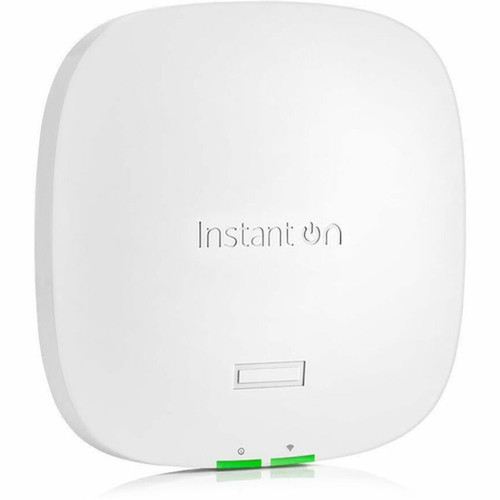

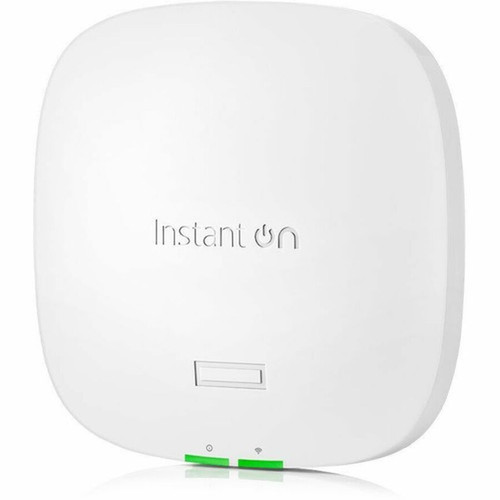

The AP32 features a compact square design measuring 6.30" (160 mm) wide, 6.30" (160 mm) high, and 1.54" (39 mm) deep, with a weight of approximately 1.15 lb (520 g). Its internal antenna design maintains a clean appearance while providing omnidirectional coverage. The access point includes mounting hardware for both ceiling and wall installation, offering flexibility in placement based on coverage requirements and aesthetic preferences.
- Width
- 6.30" (160 mm)
- Depth
- 1.54" (39 mm)
- Height
- 6.30" (160 mm)
- Weight
- 1.15 lb (520 g)
Highlights
- Tri-band Wi-Fi 6E access point with 2.4 GHz, 5 GHz, and 6 GHz support
- IEEE 802.11ax wireless standard with 3.6 Gbps aggregate throughput
- Multi-User MIMO (MU-MIMO) and beamforming technology for optimized performance
- Single 2.5 Gigabit Ethernet port with PoE PD support for simplified installation
- Internal antenna design with two antennas for clean aesthetics
- Ceiling and wall mounting options for flexible deployment
- WPA2 and WPA3 encryption for enhanced network security
- Low 11W power consumption for energy-efficient operation
- Supports PPPoE, DHCP, and RADIUS communication protocols
- Compact 6.3" square form factor suitable for indoor environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | S1T23A |
| Brand Name | Aruba |
| Product Line | Instant On |
| Product Model | AP32 |
| Product Name | Instant On AP32 Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ax |
| Network Band | Tri Band |
| Frequency Band | 2.40 GHz,5 GHz,6 GHz |
| Total Number of Antennas | 2 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 3.60 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA2,WPA3 |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6E |
| Communication Protocols | PPPoE,DHCP,RADIUS |
| Power Description | |
| Power Consumption | 11 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable,Wall Mountable |
| Antenna Form Factor | Internal |
| Height | 6.30" (160 mm) |
| Width | 6.30" (160 mm) |
| Depth | 1.54" (39 mm) |
| Weight (Approximate) | 1.15 lb (520 g) |
User Manual
FAQ
What Wi-Fi generation does the Aruba Instant On AP32 support?
The AP32 supports Wi-Fi 6E, which is the latest generation of Wi-Fi technology. Wi-Fi 6E extends the capabilities of Wi-Fi 6 by adding support for the 6 GHz frequency band, providing additional channels and reduced interference for improved performance in crowded wireless environments.
What wireless speeds can I expect from this access point?
The Aruba Instant On AP32 delivers aggregate wireless speeds up to 3.6 Gbps across its tri-band configuration. This throughput supports bandwidth-intensive applications and multiple concurrent client connections, making it suitable for modern networking requirements in office, retail, and educational environments.
Does this access point support Power over Ethernet (PoE)?
Yes, the AP32 includes a PoE PD (Power over Ethernet Powered Device) port. This allows the access point to receive both power and data over a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
What mounting options are available for the AP32?
The Aruba Instant On AP32 supports both ceiling and wall mounting. Its compact square design and included mounting hardware provide flexibility in placement to optimize wireless coverage based on your specific environment and coverage requirements.
What frequency bands does this access point support?
The AP32 is a tri-band access point that supports three frequency bands: 2.4 GHz, 5 GHz, and 6 GHz. This tri-band configuration provides expanded capacity and reduced interference compared to dual-band access points, with the 6 GHz band offering additional channels for high-performance applications.
What type of Ethernet connection does the AP32 have?
The access point features a single 2.5 Gigabit Ethernet port (RJ-45). This provides sufficient backhaul bandwidth to support the maximum wireless throughput of 3.6 Gbps and ensures the wired connection doesn't become a bottleneck for network performance.
