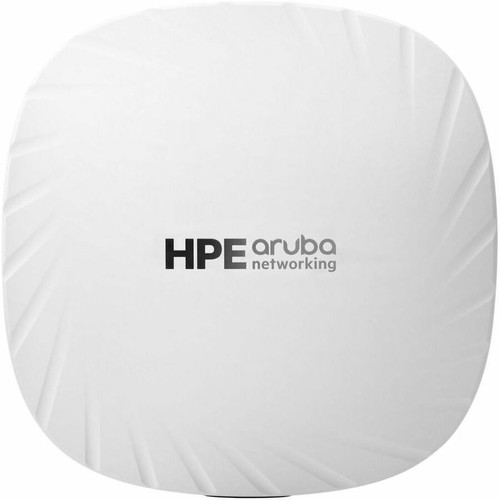

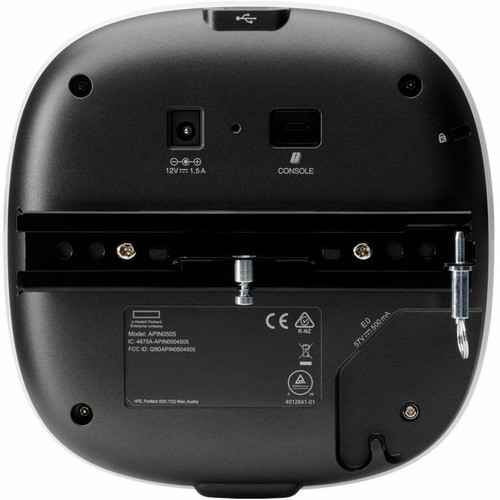

Aruba S3J27A AP-505 Dual Band Wi-Fi 6 Indoor Wireless Access Point - IEEE 802.11ax - 1.49 Gbit/s - PoE - 2 Internal Antennas
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The AP-505 operates on the IEEE 802.11ax wireless standard, also known as Wi-Fi 6, which improves network efficiency and reduces latency in congested environments. It supports dual-band operation with frequencies at 2.40 GHz and 5 GHz, allowing flexible channel allocation and better interference management.
For connectivity, the access point includes one RJ-45 Ethernet port that supports Power over Ethernet (PoE) for simplified installation, eliminating the need for separate power cabling. A USB 2.0 Type A port is available for peripheral connections or additional functionality.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Aruba AP-505 combines advanced wireless technology with practical deployment features to meet the demands of modern network infrastructures. Its AI-powered management enhances network reliability and reduces operational overhead through automated optimization and troubleshooting.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Security, Efficient Installation.
Enhanced Security
Supports multiple encryption standards including WPA3, WPA, WPA2, WPA3-CNSA, and WPA3-ENT to protect network traffic and ensure compliance with security policies.
- WPA3 for latest security protocols
- Backward compatibility with WPA/WPA2
Efficient Installation
PoE support allows the access point to receive both data and power over a single Ethernet cable, simplifying deployment in ceiling or wall mounts.
- Reduces cabling complexity
- Ideal for hard-to-reach locations
Deployment / Use Cases
The Aruba AP-505 is engineered for indoor environments where reliable Wi-Fi coverage and high performance are essential. Its compact design and PoE capability make it well-suited for office spaces, educational institutions, retail locations, and healthcare facilities.
In high-density scenarios such as conference rooms or open-plan offices, the AP-505's Wi-Fi 6 features help maintain consistent connectivity for multiple devices. The internal antenna design ensures a clean aesthetic while providing effective radio coverage for seamless user experiences.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Office Networks
Provides stable wireless access for employees and guests, with management tools to control network setup and monitor performance.
Educational Campuses
Supports simultaneous connections from students and staff, with encryption standards to protect sensitive academic data.
Physical Profile
The AP-505 features a sleek, low-profile design with dimensions of 6.30" (160 mm) wide, 6.34" (161 mm) high, and 1.46" (37 mm) deep. It weighs approximately 1.10 lb (500 g), making it lightweight and easy to mount on ceilings or walls. The internal antenna form factor contributes to its discreet appearance, blending into various indoor environments without protruding elements.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.34" (161 mm), 6.30" (160 mm), 1.46" (37 mm), 1.10 lb (500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.30" (160 mm)
- Depth
- 1.46" (37 mm)
- Height
- 6.34" (161 mm)
- Weight
- 1.10 lb (500 g)
Highlights
- Wi-Fi 6 (IEEE 802.11ax) for improved network efficiency and performance
- Dual-band operation with 2.40 GHz and 5 GHz frequency support
- Maximum wireless transmission speed of 1.49 Gbit/s
- PoE PD port for simplified power and data over a single cable
- Two internal antennas with MIMO technology for enhanced coverage
- AI-powered management for automated network optimization
- Multiple encryption standards including WPA3 for robust security
- Compact design suitable for ceiling or wall mounting in indoor spaces
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | S3J27A |
| Brand Name | Aruba |
| Product Series | 500 |
| Product Model | AP-505 |
| Product Name | AP-505 Wireless Access Point |
| Packaged Quantity | 10 Pack |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 2 |
| Number of Internal Antennas | 2 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 1.49 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Single User/Multi User MIMO |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA,WPA2,WPA3-CNSA,WPA3-ENT |
| AI-powered | Yes |
| Interfaces/Ports | |
| Ethernet Technology | Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 2.0 Type A |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Power Description | |
| Power Consumption | 4.30 W |
| Physical Characteristics | |
| Antenna Form Factor | Internal |
| Height | 6.34" (161 mm) |
| Width | 6.30" (160 mm) |
| Depth | 1.46" (37 mm) |
| Weight (Approximate) | 1.10 lb (500 g) |
FAQ
What Wi-Fi generation does the Aruba AP-505 support?
The Aruba AP-505 supports Wi-Fi 6, which is based on the IEEE 802.11ax wireless standard. This generation offers improved network efficiency, higher data rates, and better performance in congested environments compared to previous Wi-Fi versions.
Does this access point support Power over Ethernet (PoE)?
Yes, the AP-505 includes a PoE PD (Powered Device) port. This allows it to receive both data and electrical power over a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
What frequency bands does the AP-505 operate on?
This access point operates on dual bands: 2.40 GHz and 5 GHz. This dual-band capability provides flexibility for network planning, allowing devices to connect on either band to optimize performance and reduce interference in busy wireless environments.
How many antennas does the AP-505 have, and are they internal or external?
The AP-505 has two antennas, both of which are internal. The internal antenna design offers a clean, low-profile appearance while still delivering effective wireless coverage, making it suitable for discreet mounting in office ceilings or walls.
What security encryption standards are supported by this access point?
The AP-505 supports multiple encryption standards including WPA3, WPA, WPA2, WPA3-CNSA, and WPA3-ENT. This range ensures compatibility with older devices while providing advanced security with WPA3 for protecting network traffic and user data.
What is the maximum wireless transmission speed of the Aruba AP-505?
The maximum wireless transmission speed is 1.49 Gbit/s. This throughput is achieved through Wi-Fi 6 technology and MIMO support, enabling fast data transfers and reliable connectivity for bandwidth-intensive applications in business and enterprise settings.
