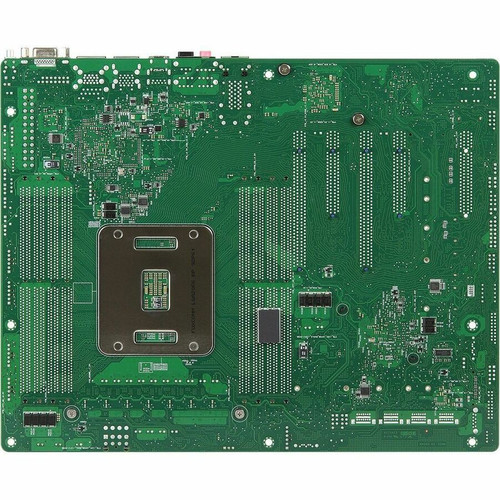

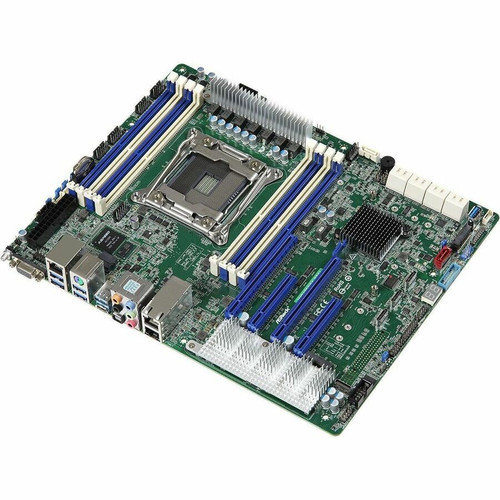

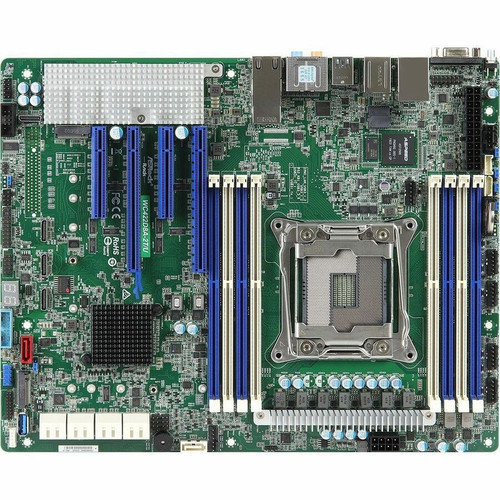

ASRock WC422D8A U Server Motherboard Intel Chipset Socket LGA 2066 ATX Support For Up To 512 GB DDR4 SDRAM DIMM RDIMM WC422D8A-2T/U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Chipset Manufacturer: Intel
Chipset Model: C422
Total Processor Supported: 1
Processor Socket: Socket R4 LGA-2066
Multi GPU Supported: CrossFireX
Number of Memory Slots: 8
Memory Form Factor: DIMM,RDIMM,LRDIMM
Maximum Memory Supported: 512 GB
Memory Speed Supported: 2666 MHz,2400 MHz,2133 MHz,1866 MHz,1600 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
Onboard Video: CPU Dependent Video
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 3.0

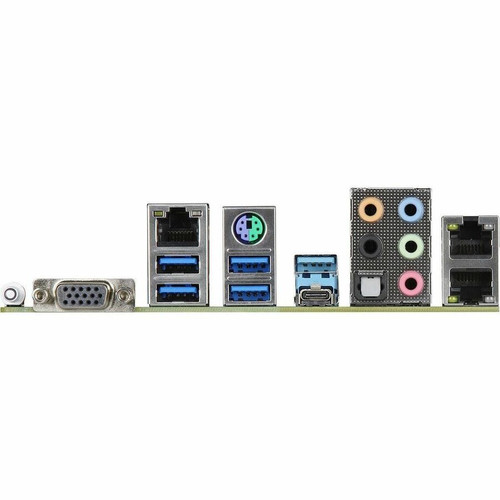

Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Type-A Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 1
Number of USB 3.2 Gen 2 Type-C Ports: 1
VGA: Yes
Number of Network (RJ-45) Ports: 2
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 2
Form Factor: ATX
Width: 12.01" (305 mm)
Depth: 9.61" (244 mm)
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- RAID supported levels provide data reliability and fault tolerance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | WC422D8A-2T/U |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | WC422D8A-2T/U |
| Product Name | WC422D8A-2T/U Server Motherboard |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C422 |
| Total Processor Supported | 1 |
| Processor Socket | Socket R4 LGA-2066 |
| Multi GPU Supported | CrossFireX |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor | DIMM,RDIMM,LRDIMM |
| Maximum Memory Supported | 512 GB |
| Memory Speed Supported | 2666 MHz,2400 MHz,2133 MHz,1866 MHz,1600 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Type-A Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12.01" (305 mm) |
| Depth | 9.61" (244 mm) |
| Miscellaneous | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
