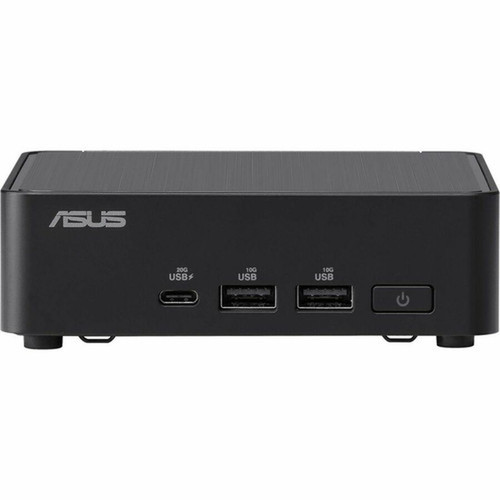

Asus 90AR0072-M000L0 NUC 14 Pro Barebone System - Core Ultra 5125H - 96GB DDR5 - 2x M. 2 - 2x Thunderbolt 4 - Windows 11/Linux - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the NUC 14 Pro is the Intel Core Ultra 5 125H, a 64-bit processor capable of turbo speeds up to 4.50 GHz. This chip combines performance cores and efficient cores with Intel Arc graphics that share system DDR5 memory, providing capable integrated graphics for multi-display setups and light media processing.
Connectivity is comprehensive, featuring two Thunderbolt 4 ports for high-speed data transfer and display output, five USB ports including a front-facing USB 3.2 Gen2x2 Type-C port delivering 20 Gbps, and a 2.5 Gigabit Ethernet port for wired networking. Wireless capabilities include Wi-Fi 6 (802.11ax) and Bluetooth 5.3 for modern peripheral connectivity.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system balances compact dimensions with expandable performance, offering a versatile foundation for custom computing solutions. The inclusion of Thunderbolt 4 ports and 2.5 Gigabit Ethernet provides professional-grade connectivity in a small package.
AI-Ready Platform
The Core Ultra 5 processor includes a 13 TOPS NPU for accelerating AI inference tasks, making this system suitable for emerging AI-enhanced applications in business and creative workflows.
- Intel Arc graphics with shared DDR5
- Integrated neural processing unit
- Supports AI workload acceleration
Modern Connectivity Suite
With Thunderbolt 4, USB 3.2 Gen2x2, and 2.5 Gigabit Ethernet, this system delivers high-speed data transfer capabilities that exceed typical office requirements.
- Two Thunderbolt 4 ports
- 20 Gbps USB Type-C
- 2.5GbE for faster file transfers
Expandable Storage Options
Dual M.2 interfaces support NVMe SSDs for fast boot and application loading, while the SATA port allows for adding larger capacity storage drives.
- Two M.2 slots for NVMe storage
- One SATA interface
- Flexible storage configurations
Deployment / Use Cases
The NUC 14 Pro's compact footprint and capable specifications make it suitable for various deployment scenarios where space efficiency matters. Its support for Windows 11 and Linux provides flexibility for different organizational requirements.
In office environments, it can serve as a space-saving desktop for general productivity, handling email, document editing, and web applications efficiently. For digital signage applications, the system's small size allows for discreet mounting behind displays while providing sufficient power for high-resolution content playback.
Office Productivity Station
Configure with 16-32GB RAM and a fast NVMe SSD for responsive performance in daily office tasks, video conferencing, and multi-tab browsing.
- Compact desk footprint
- Quiet operation
- Multiple display support
Digital Signage Controller
The small form factor enables easy mounting behind displays or in tight spaces, while the Core Ultra 5 processor handles 4K video playback smoothly.
- VESA mount compatible
- HDMI output
- Low power consumption
Physical Profile
Encased in a sleek black chassis measuring 1.61" high, 5.67" wide, and 4.41" deep, the NUC 14 Pro occupies minimal desk or mounting space. The compact design doesn't compromise connectivity, with ports thoughtfully arranged on the front and rear panels for easy access. The system's small footprint makes it ideal for environments where space optimization is critical, such as reception areas, retail counters, or mounted behind displays.
- Width
- 5.67" (144 mm)
- Depth
- 4.41" (112 mm)
- Height
- 1.61" (41 mm)
What's in the Box
The barebone system ships with essential components to begin your build.
Package contents include NUC 14 Pro Barebone System AC Adapter, NUC 14 Pro Barebone System. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core Ultra 5 125H processor with 4.50 GHz turbo speed
- Supports up to 96 GB DDR5-5600 memory across two SODIMM slots
- Dual M.2 interfaces for NVMe storage expansion
- Two Thunderbolt 4 ports for high-speed data and display connectivity
- 2.5 Gigabit Ethernet and Wi-Fi 6 (802.11ax) for versatile networking
- Compact black chassis measuring just 1.61" x 5.67" x 4.41"
- Windows 11 and Linux operating system support
- Five USB ports including front USB 3.2 Gen2x2 Type-C (20 Gbps)
- Intel Arc Graphics with shared DDR5 memory
- RoHS compliant and environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90AR0072-M000L0 |
| Brand Name | Asus |
| Product Line | NUC 14 Pro |
| Product Name | NUC 14 Pro Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core Ultra 5 |
| Processor Model | 125H |
| Maximum Turbo Speed | 4.50 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| Display & Graphics | |
| Graphics Controller Model | Arc Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| I/O Expansions | |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2x2 Type C (20Gbps) |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Supported | Windows 11,Linux |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 1.61" (41 mm) |
| Width | 5.67" (144 mm) |
| Depth | 4.41" (112 mm) |
| Miscellaneous | |
| Package Contents | NUC 14 Pro Barebone System AC Adapter |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What components do I need to add to complete this barebone system?
To complete the Asus NUC 14 Pro Barebone System, you'll need to add DDR5 SODIMM memory modules (up to 96 GB total), at least one M.2 NVMe SSD for storage, and an operating system such as Windows 11 or a Linux distribution. The system does not include memory, storage, or an operating system in the box.
What type of memory does this system support?
The NUC 14 Pro supports DDR5 SODIMM memory modules with a speed of DDR5-5600 (PC5-44800). The system has two memory slots and can accommodate up to 96 GB total when using compatible 48 GB modules in each slot. DDR5 technology provides improved bandwidth and efficiency compared to previous generations.
Can this system run multiple displays?
Yes, the NUC 14 Pro can drive multiple displays through its various video outputs. The system includes HDMI output on the rear panel, and the two Thunderbolt 4 ports also support DisplayPort alternate mode, allowing you to connect multiple monitors. The integrated Intel Arc Graphics can handle multi-display setups for office productivity and digital signage applications.
What operating systems are compatible with this barebone system?
This system officially supports Windows 11 and various Linux distributions. The Core Ultra 5 processor and Intel chipset provide full driver support for both operating system families. For Windows 11, you'll need to purchase a license separately. Linux users should verify specific distribution compatibility, though most modern distributions should work with the hardware.
How many storage drives can I install in this system?
The NUC 14 Pro provides two M.2 interfaces for NVMe SSDs and one SATA interface for 2.5-inch drives. This allows for up to three storage devices total. The M.2 slots support fast NVMe storage for your operating system and applications, while the SATA port can accommodate larger capacity drives for data storage or backup purposes.
What networking capabilities does this system include?
The system features both wired and wireless networking options. For wired connections, it includes a 2.5 Gigabit Ethernet port that provides faster network speeds than standard Gigabit Ethernet. Wireless connectivity includes Wi-Fi 6 (802.11ax) for high-speed wireless networking and Bluetooth 5.3 for connecting peripherals like keyboards, mice, and audio devices without cables.
