Asus 90XB08DN-BDS000 DC500 Triple 4K Thunderbolt 4 Dock - 150W Power - 2.5GbE - 96W PD - 3 Display Support - microSD/SD Reader - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the DC500 is a Thunderbolt 4 host interface that provides 40Gbps bandwidth for data, video, and power delivery. This enables support for up to three external displays simultaneously, with resolutions ranging from 8K (7680 x 4320) down to HD, including 4K, QHD, and various intermediate formats. The dock's display output is handled through dual HDMI ports, providing flexible monitor connectivity options.
Network connectivity is delivered via a dedicated 2.5 Gigabit Ethernet port, offering high-speed wired networking that's essential for large file transfers, video conferencing, and cloud applications. The dock includes four USB Type-A ports (two USB 3.2 Gen 2 and two USB 2.0) for connecting peripherals, along with a headphone/microphone combo jack for audio needs. Memory card support covers both microSD and SD formats through the integrated card reader.
Key Product Advantages
The DC500 stands out with its combination of high-resolution multi-display support, substantial power delivery, and professional-grade connectivity features. Unlike basic docking solutions, this dock delivers true workstation-level expansion while maintaining a streamlined single-cable connection to your host device.
Professional Display Expansion
Support for three external displays with resolutions up to 8K enables complex multi-monitor setups for financial trading, video editing, software development, and data analysis workflows.
- Triple display capability
- 8K maximum resolution
- Dual HDMI outputs
High-Speed Connectivity Suite
The 2.5 Gigabit Ethernet port provides network performance that exceeds standard Gigabit Ethernet, while Thunderbolt 4 ensures maximum bandwidth for all connected peripherals and displays.
- 2.5Gb Ethernet for fast networking
- 40Gbps Thunderbolt 4 bandwidth
- Multiple USB 3.2 Gen 2 ports
Deployment / Use Cases
The Asus DC500 is ideally suited for professionals who require extensive peripheral connectivity and multi-display support from their notebooks. Creative professionals working with high-resolution video or complex design projects benefit from the triple display capability and fast data transfer speeds. The dock's 96W USB Power Delivery ensures that even power-hungry notebooks remain charged during intensive work sessions.
In corporate environments, the DC500 serves as an excellent docking solution for hot-desking setups or conference rooms where users need to quickly connect their notebooks to multiple displays, wired network, and peripherals. IT departments will appreciate the management features like Wake-on-LAN for remote management and the Kensington security slot for physical theft prevention. The dock's compatibility with both Windows and macOS makes it particularly valuable in organizations with mixed computing environments.
Physical Profile

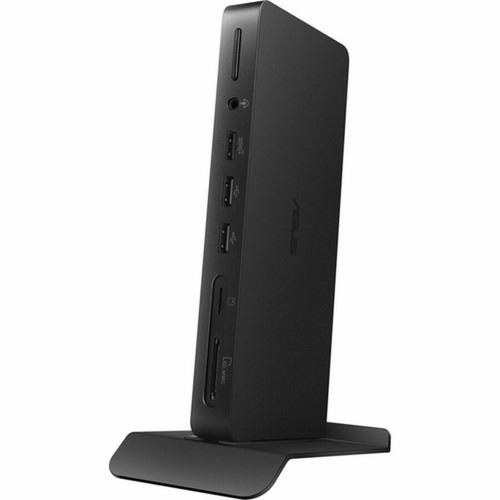

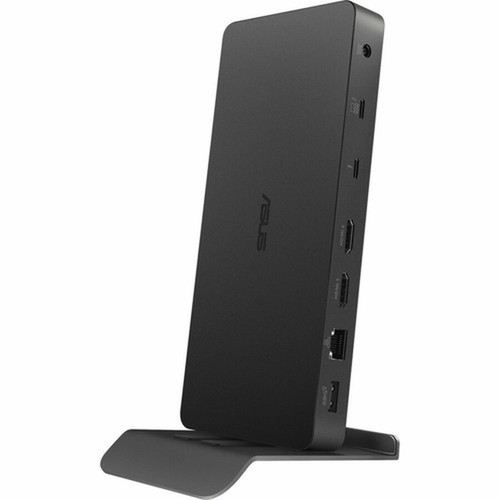

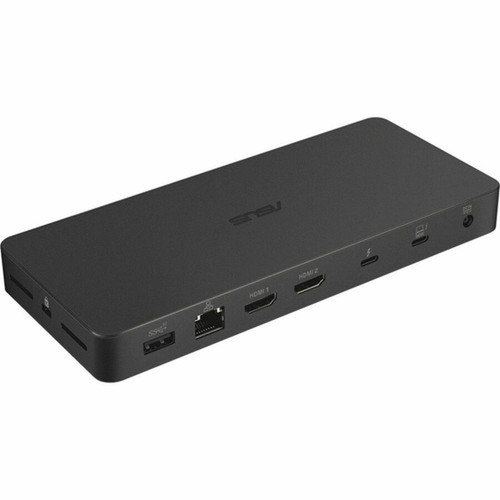

The DC500 features a compact, vertical-oriented design measuring 7.28 inches in height, 3.15 inches in width, and just 0.83 inches in depth. This slim profile allows the dock to occupy minimal desk space while providing maximum connectivity. The all-black finish ensures professional appearance that complements modern office equipment. The integrated Kensington security slot enables cable locking for theft prevention in shared or public workspaces.
- Width
- 3.15" (80 mm)
- Depth
- 0.83" (21 mm)
- Height
- 7.28" (185 mm)
Highlights
- Thunderbolt 4 connectivity with 40Gbps bandwidth
- Supports up to three external displays simultaneously
- Maximum display resolution of 7680 x 4320 (8K)
- 2.5 Gigabit Ethernet port for high-speed networking
- 150W power supply with 96W USB Power Delivery
- Dual HDMI ports for flexible display connections
- Integrated microSD and SD card reader
- Four USB Type-A ports (two USB 3.2 Gen 2, two USB 2.0)
- Headphone/microphone combo audio port
- Compatible with Windows 10 and macOS Monterey
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90XB08DN-BDS000 |
| Brand Name | Asus |
| Product Model | DC500 |
| Product Name | Triple 4K Thunderbolt 4 Dock DC500 |
| Package Type | Retail |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 3 |
| Supported Resolutions | 7680 x 4320,3840 x 2160,1920 x 1080,1280 x 720,1280 x 768,1600 x 900,1680 x 1050,2048 x 1152,2048 x 1536,2560 x 1440,2560 x 1600,2560 x 2048 |
| Screen Mode Supported | 8K,4K,Full HD,HD,HD+,2K,QHD,WXGA,WSXGA+,QWXGA,QSXGA |
| Memory Card Reader | Yes |
| Management Features | MAC Address Pass-through,Wake-on-LAN |
| Memory Card Supported | microSD,SD |
| Device Supported | Monitor,Notebook |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 4 |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB Type-A Ports | 4 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Ports | 2 |
| HDMI | Yes |
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 1 |
| Number of Thunderbolt 4 Ports | 1 |
| USB Power Delivery | 96W |
| Software | |
| Operating System Supported | Windows 10,macOS Monterey |
| Power Description | |
| Maximum Power Supply Wattage | 150 W |
| Physical Characteristics | |
| Product Color | Black |
| Height | 7.28" (185 mm) |
| Width | 3.15" (80 mm) |
| Depth | 0.83" (21 mm) |
| Miscellaneous | |
| Kensington Security Slot | Yes |
User Manual
FAQ
How many external displays can I connect to the Asus DC500 dock?
The Asus DC500 Thunderbolt 4 Dock supports up to three external displays simultaneously. You can connect monitors with resolutions ranging from HD up to 8K (7680 x 4320), including 4K, QHD, and Full HD formats. The dock uses its dual HDMI ports along with the Thunderbolt 4 connection to enable this multi-display capability, making it ideal for extended desktop setups in professional work environments.
What type of Ethernet connection does this docking station provide?
This docking station features a 2.5 Gigabit Ethernet port, which provides network speeds up to 2.5 times faster than standard Gigabit Ethernet. This enhanced connectivity is particularly valuable for transferring large files, streaming high-resolution video content, video conferencing, and accessing cloud-based applications where network performance directly impacts productivity and user experience.
Can the Asus DC500 charge my notebook while connected?
Yes, the Asus DC500 includes 96W USB Power Delivery through its Thunderbolt 4 connection, allowing it to charge compatible notebooks while simultaneously transferring data and video signals. The dock itself is powered by a 150W external power supply that ensures stable operation and sufficient power delivery for all connected devices, including displays and peripherals.
What memory card formats does the integrated card reader support?
The Asus DC500 features a built-in memory card reader that supports both microSD and SD card formats. This allows photographers, videographers, and other content creators to directly access media from their cameras and mobile devices without needing separate card readers or adapters, streamlining workflow when transferring images, videos, and other files.
Which operating systems are compatible with this Thunderbolt 4 dock?
The Asus DC500 is compatible with Windows 10 and macOS Monterey operating systems. This cross-platform support makes the dock suitable for organizations with mixed computing environments or users who work across different platforms. The dock's functionality, including display support, networking, and peripheral connectivity, works seamlessly with both operating systems.
What security features does the Asus DC500 include?
The Asus DC500 includes a Kensington security slot that allows you to physically secure the dock to your desk or workstation using a standard Kensington lock cable. This theft prevention feature is particularly valuable in shared workspaces, open office environments, or public areas where equipment security is a concern. Additionally, the dock supports management features like MAC Address Pass-through and Wake-on-LAN for enterprise deployment scenarios.
